711012 - Ariens Dethatcher Attachment Dethatcher Parts Diagram

Dethatcher Attachment

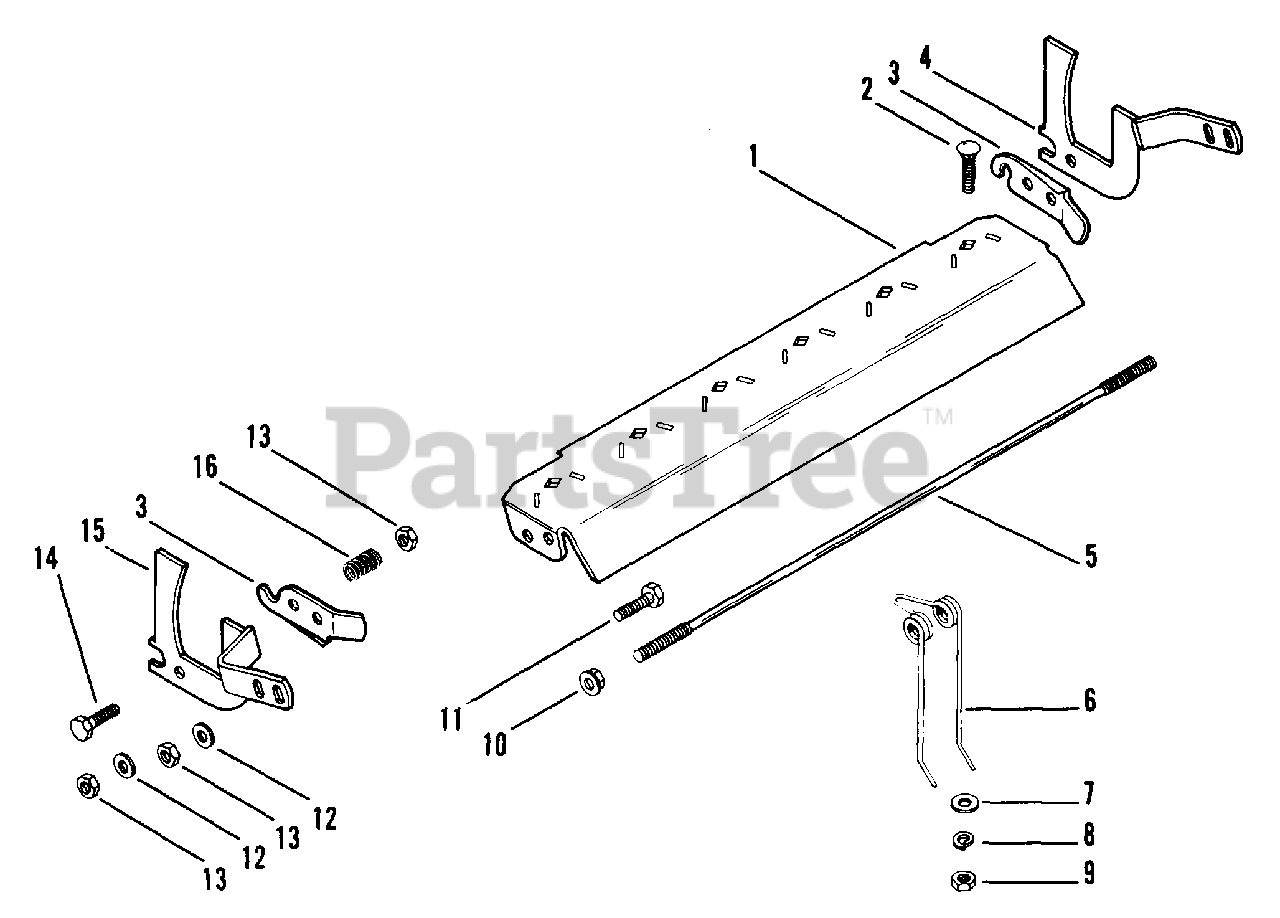

Dethatcher Parts Diagram

  • Title

1

Ariens 01135600

TINE PLATE
(Superseded to 51106900)

$

$

Not available

2

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

3

Ariens 01135700

AXLE LOCK

$31.99

$

Usually ships in 4-12 days

0

4

Ariens 01135900

CAM BRACKET LH

$38.99

$

Usually ships in 4-12 days

0

5

Ariens 01135800

ROD

$35.99

$

Usually ships in 4-12 days

0

6

Ariens 01136100

SPRING

$22.99

$

In Stock, only 1 left!

0

7

Ariens 06408200

WSHR-FL-STL .328X1.0X.094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

8

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

10

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 17

0

15

Ariens 01136000

CAM BRACKET RH

$38.99

$

Usually ships in 4-12 days

0

16

Ariens 08321700

SG-COMP .058X.68X.75

$9.49

$

Usually ships in 4-12 days

0
