7110 (1690472) - Simplicity Garden Tractor, 10hp Engine, Exhaust & Drive Shaft Group - 7110 Parts Diagram

Garden Tractor, 10hp

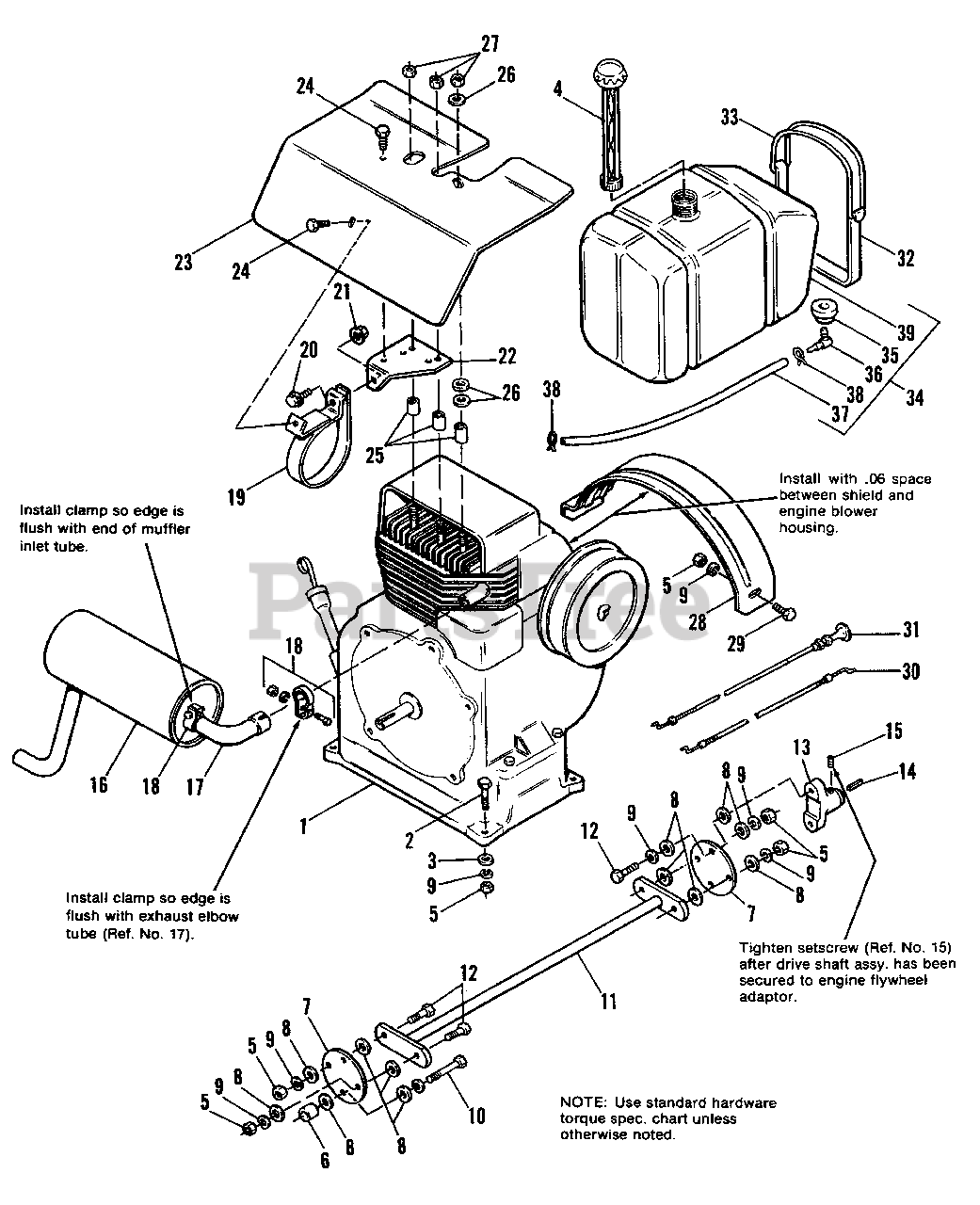

Engine, Exhaust & Drive Shaft Group - 7110 Parts Diagram

  • Title

1

ENGINE, 10 H.P. Kohler

$

$

Not available

2

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

3

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2171252SM

CAP, Fuel Tank, Gauge

$31.99

$

In Stock, Qty 20+

0

5

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

6

Simplicity 1656397SM

SPACER

$28.99

$

In Stock, only 1 left!

0

7

Simplicity 2173026SM

COUPLING

$39.99

$

In Stock, only 1 left!

0

8

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

9

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

10

Simplicity 2822130

CAPSCREW, Hex Hd., 3/8-16 x 2-1/4

$

$

Not available

11

Simplicity 1666152SM

SHAFT ASSY., Drive

$98.99

$

In Stock, only 1 left!

0

12

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 2172264SM

FLANGE, Drive Shaft

$

$

Not available

14

Simplicity 2157427SM

KEY, Drive Shaft

$5.49

$

In Stock, only 1 left!

0

15

Simplicity 2824624

SETSCREW, 3/8-24 x 3/8

$

$

Not available

16

Simplicity 1666059SM

MUFFLER, Exhaust

$

$

Not available

17

Simplicity 1666120SM

ELBOW, Exhaust

$

$

Not available

18

Simplicity 2172061SM

CLAMP, Muffler
(Superseded to 2831893SM)

$

$

Not available

19

Simplicity 1666833ASM

STRAP ASSY., Muffler

$54.99

$

Usually ships in 2-12 days

0

20

Simplicity 2833689

CAPSCREW, Hex, Flange, Whiziock, 5/16-18 x 1-1/2

$

$

Not available

21

Simplicity 2825763

LOCKNUT, Hex, Flange, Whiz, 5/16-18

$

$

Not available

22

Simplicity 1666837

SUPPORT, Muffler

$

$

Not available

23

Simplicity 1666838

SHIELD, Heat

$

$

Not available

24

Simplicity 2825003

SCREW, Hex Hd., Taptite, 1/4-20 x 1/2

$

$

Not available

25

Simplicity 2121121

SPACER

$

$

Not available

26

Simplicity 2156065

WASHER

$

$

Not available

27

Simplicity 2828731

LOCKNUT, Jam, 3/8-16

$

$

Not available

28

Simplicity 1666805

SHIELD

$

$

Not available

29

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

30

Simplicity 1666266SM

CONTROL, Throttle

$55.99

$

In Stock, only 1 left!

0

31

Simplicity 1666269SM

CONTROL, Choke

$75.99

$

Usually ships in 2-12 days

0

32

Simplicity 2171330SM

STRAP, Tank

$43.99

$

Usually ships in 2-12 days

0

33

Simplicity 2172744SM

STRAP, Fuel Tank

$18.99

$

Usually ships in 2-12 days

0

34

Simplicity 1687040SM

FUEL TANK ASSY.

Note: Reference No. 34 includes Ref. No's. 35, 36, 37, 38(Qty. 1), 39.

$

$

Not available

35

Simplicity 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

36

Simplicity 1664460SM

FITTING

$9.99

$

In Stock, Qty 17

0

37

Simplicity 1718678SM

HOSE, Fuel

$

$

Not available

38

Simplicity 2154372

CLAMP, Hose

$

$

Not available

39

TANK, Fuel (See Ref. No. 34)

$

$

Not available
