7100 - Lawn-Boy Walk-Behind Mower (SN: 400000001 - 499999999) (1957) Model 1000 Mower Parts Diagram

Walk-Behind Mower

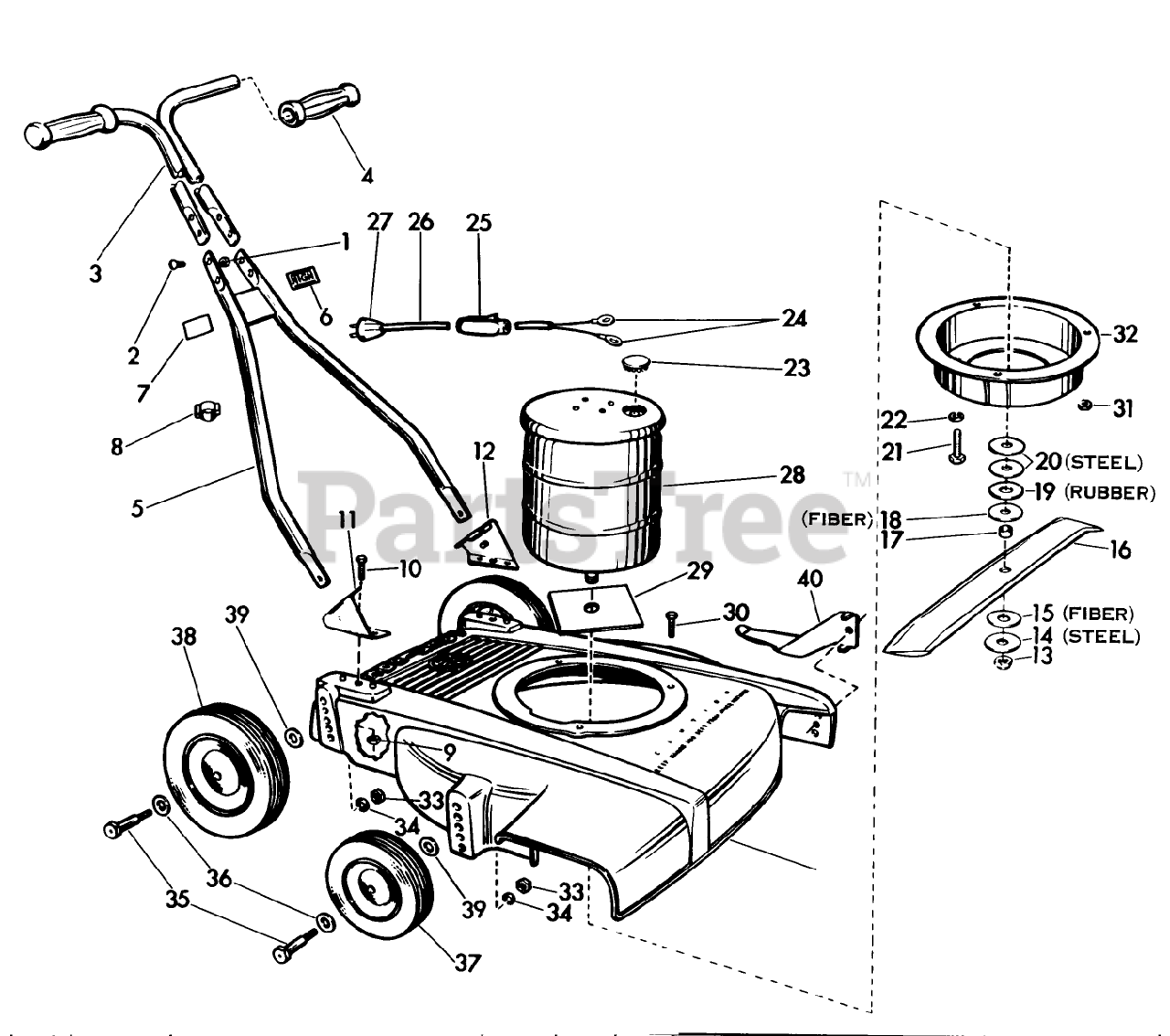

Model 1000 Mower Parts Diagram

  • Title
1

Lawn-Boy 602201

STOP NUT

$

$

Not available

2

Lawn-Boy 602025

DISCONTINUED

$

$

Not available

3

Lawn-Boy 677354

DISCONTINUED

$

$

Not available

4

Lawn-Boy 603025

DISCONTINUED

$

$

Not available

5

Lawn-Boy 677382

DISCONTINUED

$

$

Not available

6

Lawn-Boy 602835

Decal-Handle "High"

$

$

Currently unavailable

7

Lawn-Boy 602836

Decal-Handle "Low"

$

$

Currently unavailable

8

Lawn-Boy 602144

Clip-Electric Cord

$

$

Currently unavailable

$

$

Not available

10

Lawn-Boy 602693

DISCONTINUED

$

$

Not available

11

Lawn-Boy 677118

DISCONTINUED

$

$

Not available

12

Lawn-Boy 677117

DISCONTINUED

$

$

Not available

13

Lawn-Boy 602439

DISCONTINUED

$

$

Not available

14

Lawn-Boy 602145

DISCONTINUED

$

$

Not available

15

Lawn-Boy 602178

DISCONTINUED

$

$

Not available

16

Lawn-Boy 602165

Blade-18"

$

$

Currently unavailable

17

Lawn-Boy 602174

Bushing-Blade

$

$

Currently unavailable

18

Lawn-Boy 602178

DISCONTINUED

$

$

Not available

19

Lawn-Boy 602148

BLADE WASHER

$

$

Not available

20

Lawn-Boy 602145

DISCONTINUED

$

$

Not available

21

Lawn-Boy 71X1311

Screw-Motor Mounting

$

$

Currently unavailable

22

Lawn-Boy 120177

WASHER, LOCK

$

$

Not available

23

Lawn-Boy 602251

Cap-Snap-on

$

$

Currently unavailable

24

Lawn-Boy 602138

Lug-Electric

$

$

Currently unavailable

25

Lawn-Boy 602045

Switch-Toggle

$

$

Currently unavailable

26

Lawn-Boy 602044

Plug-Electric

$

$

Currently unavailable

27

Lawn-Boy 677280

DISCONTINUED

$

$

Not available

28

Lawn-Boy 677018

DISCONTINUED

$

$

Not available

29

Lawn-Boy 602742

Shield-Dust

$

$

Currently unavailable

30

Lawn-Boy 602693

DISCONTINUED

$

$

Not available

$

$

Not available

32

Lawn-Boy 602655

Plate-Adapter

$

$

Currently unavailable

$

$

Not available

34

Lawn-Boy 120177

WASHER, LOCK

$

$

Not available

35

$

$

Not available

36

$2.49

$

In Stock, Qty 8

0

37

Lawn-Boy 677466

DISCONTINUED

$

$

Not available

38

Lawn-Boy 677467

DISCONTINUED

$

$

Not available

39

Lawn-Boy 602627

DISCONTINUED

$

$

Not available

40

Lawn-Boy 602852

Housing-18"

$

$

Currently unavailable
