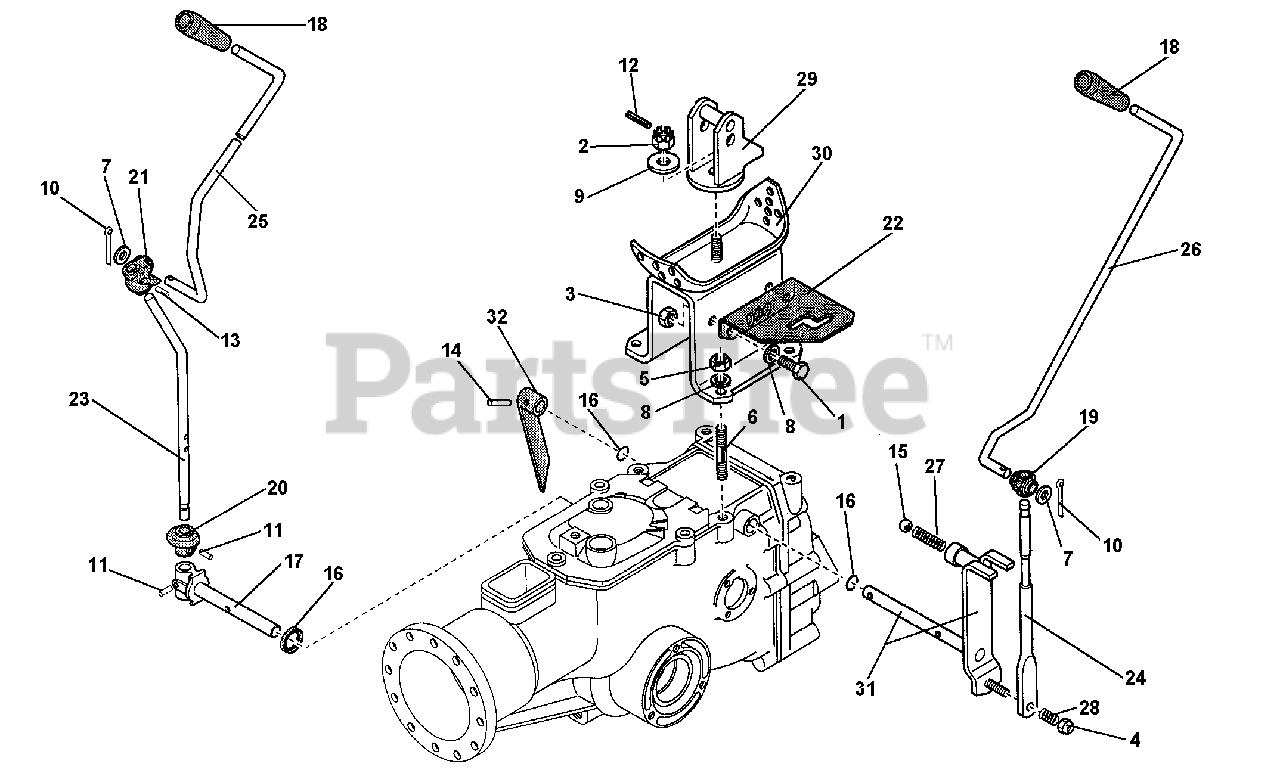

710 - BCS America Two-Wheeled Tractor Controls (SN: 104557 - 106361) Parts Diagram

Two-Wheeled Tractor

Controls (SN: 104557 - 106361) Parts Diagram

  • Title
1

BCS America 31112150

SCREW, M8X20

$1.49

$

In Stock, only 4 left!

0

2

BCS America 312.01212

NUT, CASTLE, M12

$3.99

$

Usually ships in 5-8 days

0

$0.99

$

In Stock, only 3 left!

0

4

BCS America 31241080

NUT, SELF LOCKING, M8

$0.99

$

In Stock, Qty 11

0

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 313.12082

STUD, M8X38X14X20

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 314.11104

WASHER, M10.5

$0.99

$

In Stock, Qty 5

0

8

BCS America 314.21083

SUPER WASHER

$1.49

$

In Stock, Qty 7

0

9

BCS America 31423130

LOCK WASHER, M13

$1.49

$

In Stock, only 3 left!

0

10

$0.99

$

In Stock, only 2 left!

0

11

BCS America 34213020

PIN, LOCKING, M4X20

$1.49

$

In Stock, only 4 left!

0

12

BCS America 342.13022

PIN, LOCKING, M3X22

$1.49

$

In Stock, only 2 left!

0

13

BCS America 342.13024

PIN, LOCKING, M4X24

$1.49

$

In Stock, Qty 5

0

14

BCS America 342.13061

LOCKING PIN, 6X20 SPIRAL

$1.49

$

In Stock, Qty 6

0

15

BCS America 379.11532

BALL, 15/32"

$1.49

$

In Stock, only 1 left!

0

16

BCS America 38211400

OIL SEAL, 14X22X4

$7.99

$

In Stock, only 2 left!

0

17

$132.99

$

Usually ships in 5-8 days

0

$5.99

$

Usually ships in 5-8 days

0

19

BCS America 552.42528

ARTICULATOR

$11.99

$

In Stock, only 2 left!

0

20

BCS America 552.48378

PTO STOP RING

$32.99

$

Usually ships in 5-8 days

0

21

BCS America 552.48379

PTO ARTICULATION

$8.99

$

Usually ships in 5-8 days

0

22

BCS America 561.57234

GEAR SELECTOR, 710

$24.99

$

In Stock, only 1 left!

0

23

BCS America 56157260

PTO CONTROL LEVER

$32.99

$

Usually ships in 5-8 days

0

24

BCS America 561.57271

SPEED CONTROL LEVER

$36.99

$

Usually ships in 5-8 days

0

25

BCS America 561.57282

PTO CONTROL ROD, ELECTRIC START

$65.99

$

Usually ships in 5-8 days

0

26

BCS America 561.57283

SPEED CONTROL ROD, 710, ELECTRIC START

$51.99

$

Usually ships in 5-8 days

0

$2.49

$

In Stock, only 1 left!

0

$2.49

$

Usually ships in 5-8 days

0

29

BCS America 59056900

HANDLE BAR SUPPORT

$58.99

$

Usually ships in 5-8 days

0

30

BCS America 590.56905

HANDLE BAR ANCHOR

$328.99

$

Usually ships in 5-8 days

0

31

BCS America 590.57228

SPEED CONTROL LEVER, 710

$68.99

$

Usually ships in 5-8 days

0

32

BCS America 590.57338

PTO LOCKOUT LEVER, 710

$71.99

$

Usually ships in 5-8 days

0
