710 - BCS America Two-Wheeled Tractor Clutch (SN: 100000 - 102478) Parts Diagram

Two-Wheeled Tractor

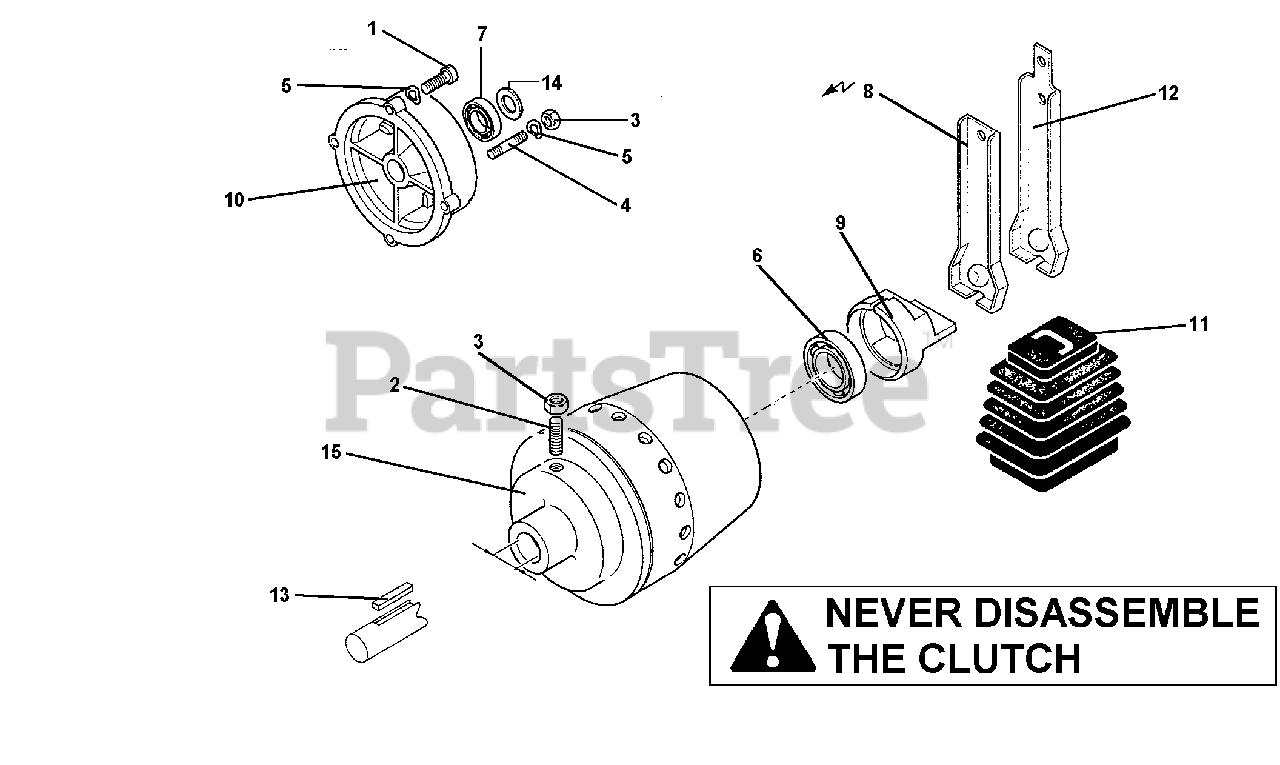

Clutch (SN: 100000 - 102478) Parts Diagram

  • Title

1

BCS America 311.00003

SCREW 5/16X7/8"

$1.99

$

Usually ships in 5-8 days

0

2

BCS America 311.00786

SCREW M8X30

$1.49

$

In Stock, Qty 5

0

3

BCS America 31211080

NUT, M8"

$0.99

$

In Stock, only 3 left!

0

4

BCS America 313.12088

STUD,M8X40X14X14"

$8.49

$

In Stock, only 2 left!

0

5

BCS America 314.23084

WASHER, WAVE"

$0.99

$

In Stock, Qty 10

0

6

BCS America 371.12173

BEARING,M17X40X12"

$10.99

$

In Stock, only 3 left!

0

7

BCS America 371.12231

BEARING,20X47X14"

$16.99

$

Usually ships in 5-8 days

0

8

BCS America 509.47833

CLUTCH LEVER, ELECTRIC START"

$47.99

$

Usually ships in 5-8 days

0

9

BCS America 524.47896

CONE PUSHER

$

$

Not available

10

BCS America 532.47468

FLANGE, 5HP B&S"

$114.99

$

Usually ships in 5-8 days

0

11

BCS America 551.47842

BOOT

$31.99

$

In Stock, only 1 left!

0

12

BCS America 561.47845

LEVER, RECOIL START"

$31.99

$

In Stock, only 1 left!

0

13

BCS America 563.49782

KEY

$10.99

$

Usually ships in 5-8 days

0

14

BCS America 563.56251

WASHER, 5HP"

$2.49

$

Usually ships in 5-8 days

0

15

BCS America 59243150

CLUTCH, 5HP B&S .75"" SHAFT"

$

$

Not available
