710 (1690062) - AGCO Garden Tractor, 10hp 7010-7016-7016H SEAT AND FENDERS Parts Diagram

Garden Tractor, 10hp

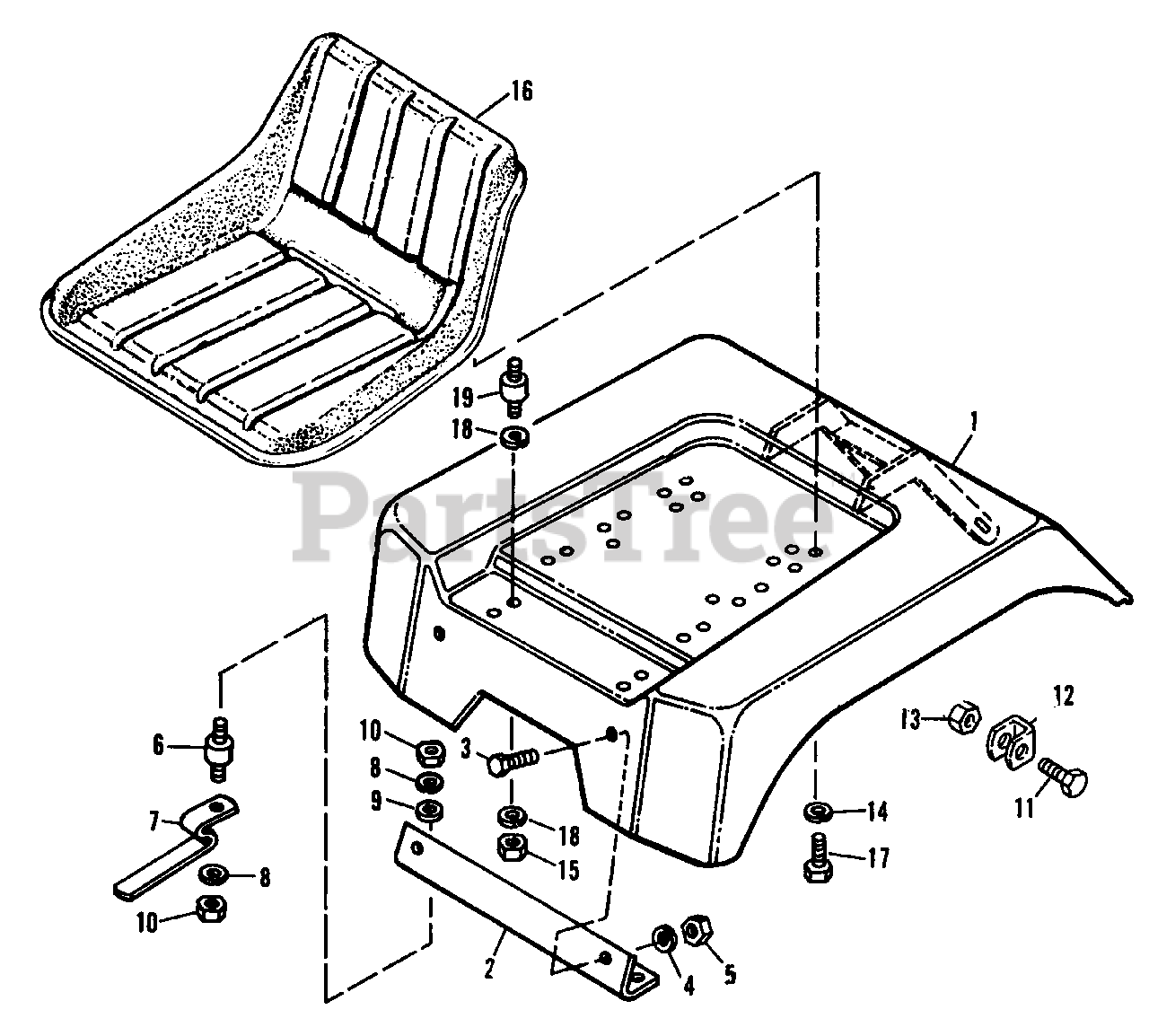

7010-7016-7016H SEAT AND FENDERS Parts Diagram

  • Title

1

Simplicity 166111

DECK ASSEMBLY, Seat

$

$

Not available

2

Simplicity 2164029SM

BRACKET, Frt. Seat Deck

$

$

Not available

3

Simplicity 2819318

CAPSCREW, Hex, 5/16" 18 x 5/8" lg.

$

$

Not available

4

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2157094SM

CONNECTOR, Cushion, Frt.

$

$

Not available

7

Simplicity 1606823SM

CLIP, Seat Deck Latch

$

$

Not available

8

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2817377

WASHER, Plain, 1/4"

$

$

Not available

10

Simplicity 1917372SM

NUT, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 2817400

CAPSCREW, Hex, 3/8"-16 x 1-1/4" lg.

$

$

Not available

12

Simplicity 1607870SM

STOP, Seat Deck
(Superseded to 1607870ASM)

$52.99

$

Usually ships in 2-12 days

0

13

Simplicity 2823428

NUT, Hex, Full, Lock, 3/8"-16

$

$

Not available

14

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1917372SM

NUT, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1686712SM

CONTOUR SEAT ASSEMBLY

$487.99

$

Usually ships in 2-12 days

0

17

Simplicity 2819318

CAPSCREW, Hex, 5/16-18 x 5/8" lg.

$

$

Not available

18

Simplicity 2720001

LOCKWASHER, 5/16"

$

$

Not available

19

Simplicity 2159085SM

CONNECTOR, Cushion

$10.99

$

In Stock, only 2 left!

0

20

Simplicity 1917372SM

NUT, Hex, Full, 5/16"
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
