710 (1690062) - AGCO Garden Tractor, 10hp 7010-7016-7016H POWER TAKE-OFF Parts Diagram

Garden Tractor, 10hp

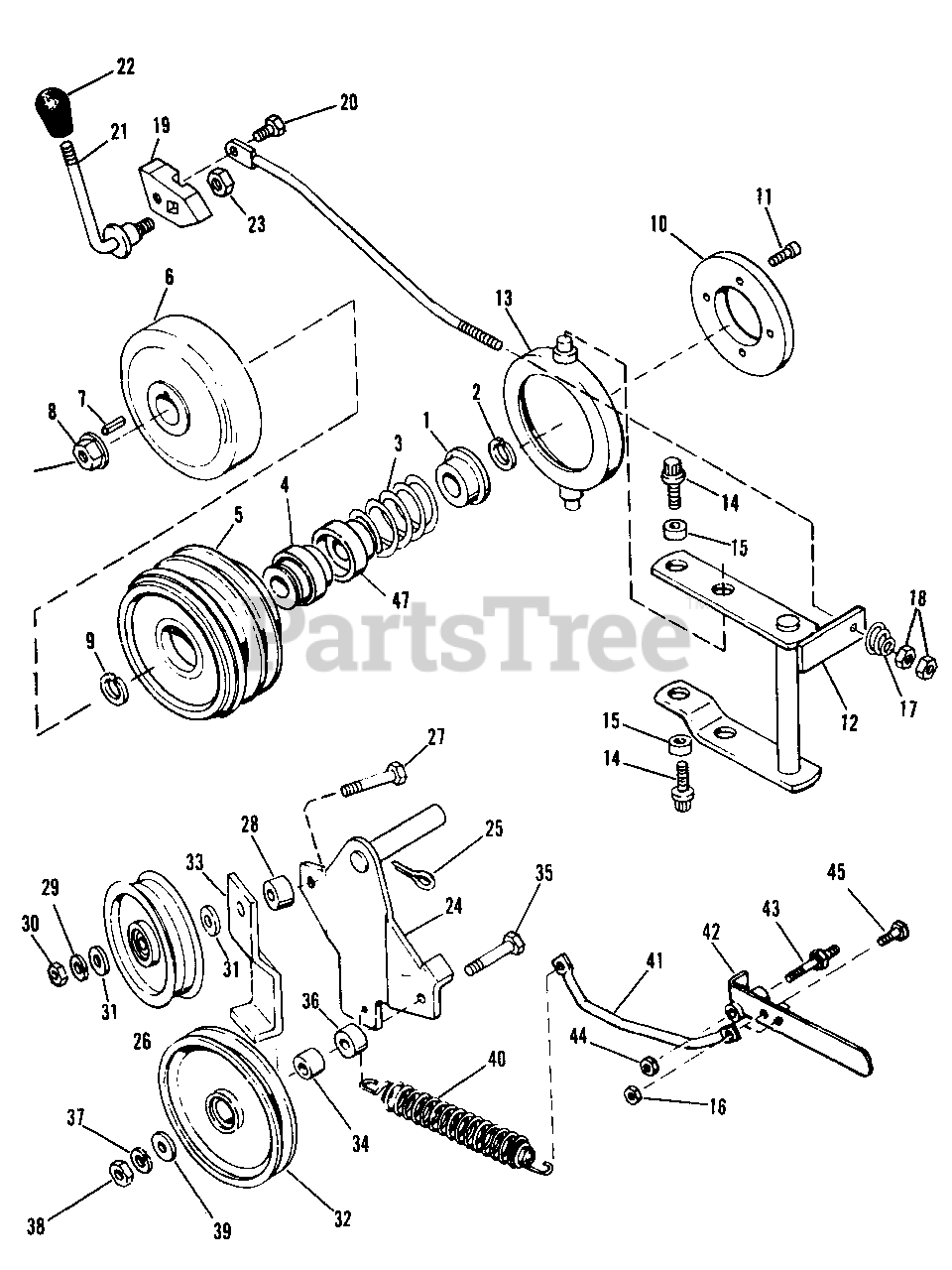

7010-7016-7016H POWER TAKE-OFF Parts Diagram

  • Title

1

Simplicity 1671339SM

GUIDE, Spring

$

$

Not available

2

Simplicity 2172206SM

RING, Retaining

$4.99

$

In Stock, Qty 20+

0

3

Simplicity 2171772SM

SPRING

$

$

Not available

4

Simplicity 1650254SM

BEARING ASSEMBLY

$

$

Not available

5

Simplicity 1650304SM

PULLEY

$186.99

$

Usually ships in 2-12 days

0

6

Simplicity 2174862SM

CLUTCH PLATE ASSEMBLY

$

$

Not available

7

Simplicity 2805850SM

KEY

$

$

Not available

8

Simplicity 2830644

NUT, Flange, Lock, 1/2"-13

$

$

Not available

9

Simplicity 2172206SM

RING, Retaining

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 2173957SM

DISK, Brake

$38.99

$

Usually ships in 2-12 days

0

11

Simplicity 2820036SM

SCREW, Socket Hd, 1/4"-20 x 5/8" lg.

$6.49

$

In Stock, only 1 left!

0

12

Simplicity 1650906SM

PIVOT ASSEMBLY
(Superseded to 1650906ASM)

$402.99

$

Usually ships in 2-12 days

0

13

Simplicity 1650906SM

SUPPORT, Brake Assembly
(Superseded to 1650906ASM)

$402.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960086SM

SCREW, Thread Forming

$4.99

$

In Stock, only 2 left!

0

15

Simplicity 2171371SM

BUSHING

$9.49

$

In Stock, only 1 left!

0

16

Simplicity 173988

ROD, Control

$

$

Not available

17

Simplicity 2175316

SPRING, Conical

$

$

Not available

18

Simplicity 1917372SM

NUT, Hex, Full, 5/16"-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 2173991SM

LEVER

$

$

Not available

20

Simplicity 2174686

CAPSCREW, Special, 5/16"-16 x 7/8" lg.

$

$

Not available

21

Simplicity 2174664

HANDLE, Clutch pto

$

$

Not available

22

Simplicity 2172038SM

KNOB
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 8

0

23

Simplicity 2823428

NUT, Hex, Full, Lock, 3/8"-16

$

$

Not available

24

Simplicity 2174455SM

PIVOT ARM ASSEMBLY

$

$

Not available

25

Simplicity 2818459

PIN, Cotter, 3/16" x 1-1/2" lg.

$

$

Not available

26

Simplicity 2105306

PULLEY

$

$

Not available

27

Simplicity 2817402

CAPSCREW, 3/8"-16 x 2" lg.

$

$

Not available

28

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, Qty 6

0

29

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

30

Simplicity 2816950SM

NUT, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

31

Simplicity 2817642

WASHER, Plain, 5/16"

$

$

Not available

32

Simplicity 2173982

PULLEY, Idler

$

$

Not available

33

Simplicity 170289

STOP, Belt

$

$

Not available

34

Simplicity 2170291

SPACER

$

$

Not available

35

Simplicity 2817402

CAPSCREW, Hex, 3/8"-16 x 2" lg.

$

$

Not available

36

Simplicity 2172329SM

SPACER

$

$

Not available

37

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

38

Simplicity 2816950SM

NUT, Hex, Full, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

39

Simplicity 2817642

WASHER, Plain, 5/16"

$

$

Not available

40

Simplicity 2157262SM

SPRING, Tension

$33.99

$

Usually ships in 2-12 days

0

41

Simplicity 2164047

ROD, Spring Tension

$

$

Not available

42

Simplicity 2164155SM

HANDLE ASSEMBLY

$102.99

$

Usually ships in 2-12 days

0

43

Simplicity 2157273SM

STUD

$25.99

$

Usually ships in 2-12 days

0

44

Simplicity 2824058

NUT, Hex, Full, Lock, 7/16"-14

$

$

Not available

45

Simplicity 2817397

CAPSCREW, Hex, 5/16" 18 x 3/4" lg.

$

$

Not available

46

Simplicity 2823362

NUT, Hex, Full, Lock, 5/16"-18

$

$

Not available

47

Simplicity 1671339SM

GUIDE, Spring

$

$

Not available
