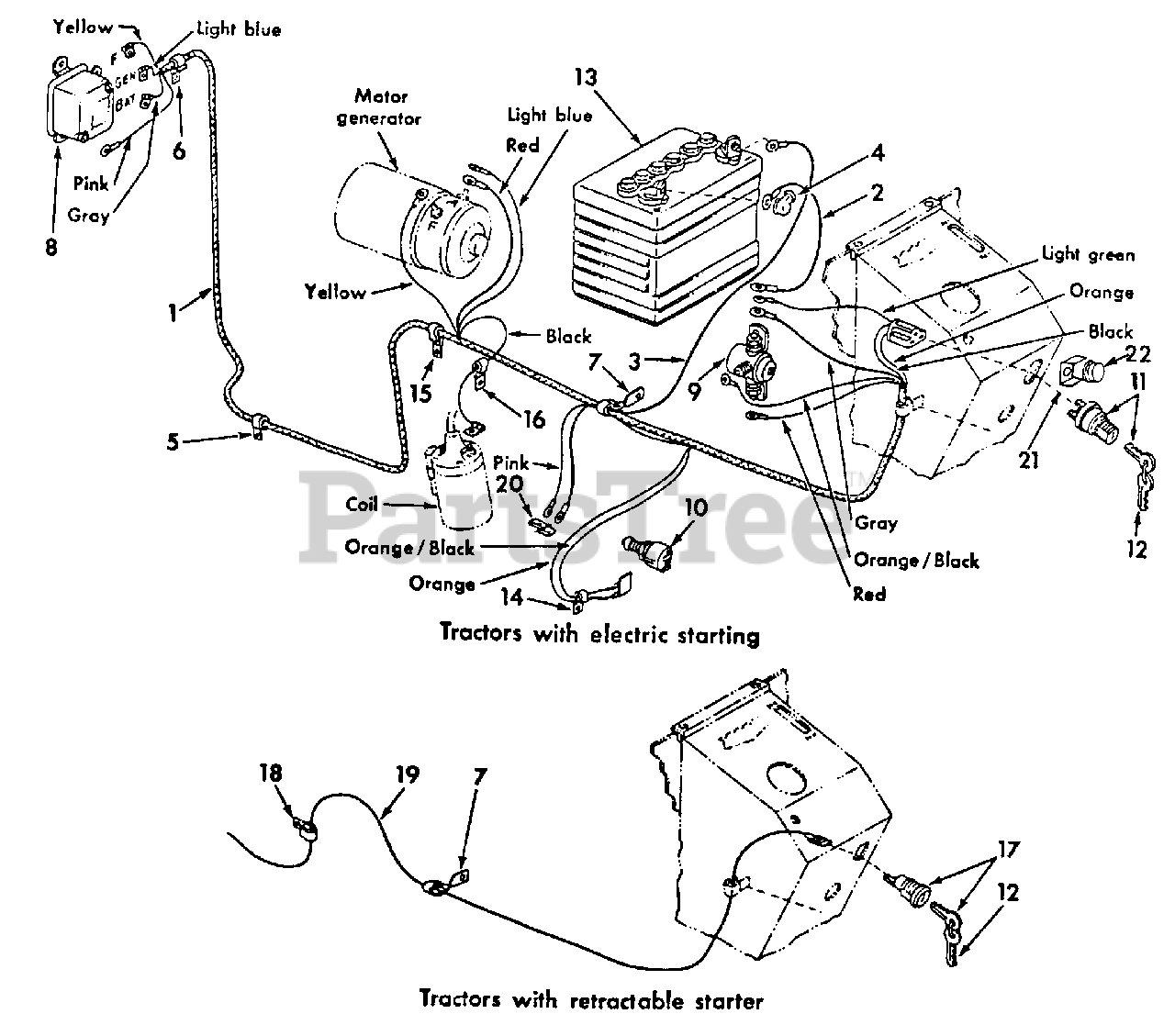

71 - Cub Cadet Garden Tractor Ignition & Starting Parts Diagram

Garden Tractor

Ignition & Starting Parts Diagram

  • Title

1

Cub Cadet IH-404363-R1

Harness Assy, Cable

$

$

Not available

2

Cub Cadet IH-392966-R92

Cable Assy, Battery to Magnetic Switch

$

$

Not available

Cub Cadet 710-0451

Bolt, 5/16-18 X 3/4 C-Z Sq Nk Crg

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, 5/16 C-Z Med Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet IH-384924-R91

Cable Assy, Battery to Ground

$

$

Not available

Cub Cadet 710-3015

Screw, 1/4-20 X 3/4 C-Z Hex Hd Cap

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet 736-3020

Washer, 17/64 X 5/8 X .049 C-Z

$6.99

$

In Stock, Qty 9

0

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

4

Cub Cadet IH-364910-R1

Cover, Battery Terminal

$

$

Currently unavailable

5

Cub Cadet IH-370383-R1

Clip, Cable Harness

Note: (On RH rear grille housing mounting bolt)

$

$

Not available

6

Cub Cadet 726-3015

Clip, Cable Harness
(Superseded to 726-3008)

Note: (On upper RH hole in grille housing)

$4.99

$

Usually ships in 3-6 days

0

Screw, 1/4-20 X 1/2 Hex Hd Cap

$

$

Not available

Washer, 1/4 Med Lock

$

$

Not available

7

Cub Cadet IH-363660-R1

Clip, Cable Harness

Note: (On battery & instrument panel front RH mounting bolt below battery tray)

$

$

Currently unavailable

Cub Cadet 710-3000

Screw, 3/8-16 X 3/4 C-Z Hex Hd Cap
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-0798

Nut, 3/8-16 C-Z Hex

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet IH-545130-R92

Regulator, Voltage
(Superseded to IH-545130-R93)

$191.99

$

Usually ships in 3-6 days

0

Screw, 1/4-20 X 1/2 Hex Hd Cap

$

$

Not available

9

Cub Cadet IH-1114532

Switch Assy, Magnetic
(Superseded to IH-1114532P)

$156.99

$

In Stock, only 2 left!

0

Nut, 1/4-20 Hex

$

$

Not available

Cub Cadet 736-0222

Washer, 1/4 Ext Tooth Lock

$5.99

$

In Stock, only 3 left!

0

10

Cub Cadet 725-3038

Switch Assy, Safety Starting
(Superseded to 925-3038)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-365502-R1

Nut, Switch Mounting

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet IH-60736-C2

Switch Assy, Ignition
(Superseded to IH-60736-C3)

$90.99

$

In Stock, only 4 left!

0

Cub Cadet IH-365502-R1

Nut, Switch Mounting

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-375431-R1

Washer, Switch Mounting

$11.99

$

In Stock, only 1 left!

0

12

Cub Cadet IH-382458-R2

Key, Switch
(Superseded to IH-131313-C2)

$12.99

$

In Stock, only 2 left!

0

13

Cub Cadet IH-PRLU

Battery, Prestolite 9948X (12 Volt)
(Superseded to 925-1707D)

$

$

Not available

14

Cub Cadet IH-384554-R1

Clip, Cable

Note: (On left bolt of steering gear housing)

$

$

Currently unavailable

15

Cub Cadet 726-3015

Clip, Cable Harness
(Superseded to 726-3008)

Note: (On upper RH side of engine)

$4.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 726-3015

Clip, Cable
(Superseded to 726-3008)

Note: (On upper LH side of engine)

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet IH-379593-R92

Switch Assy, Magneto Ignition

$

$

Currently unavailable

18

Cub Cadet 726-3015

Clip, Cable
(Superseded to 726-3008)

Note: (On lower LH fuel tank support)

$4.99

$

Usually ships in 3-6 days

0

19

~NLA

Cable Assy, Magneto Ignition

Note: (part of engine)

$

$

Not available

20

Cub Cadet 726-3021

Clip, Safety Starting Switch Cable Snap On

$

$

Not available

21

Cub Cadet IH-402239-R1

Retainer, Ignition Switch

$

$

Not available

22

Cub Cadet IH-402238-1

Socket, Ignition Switch

$

$

Currently unavailable
