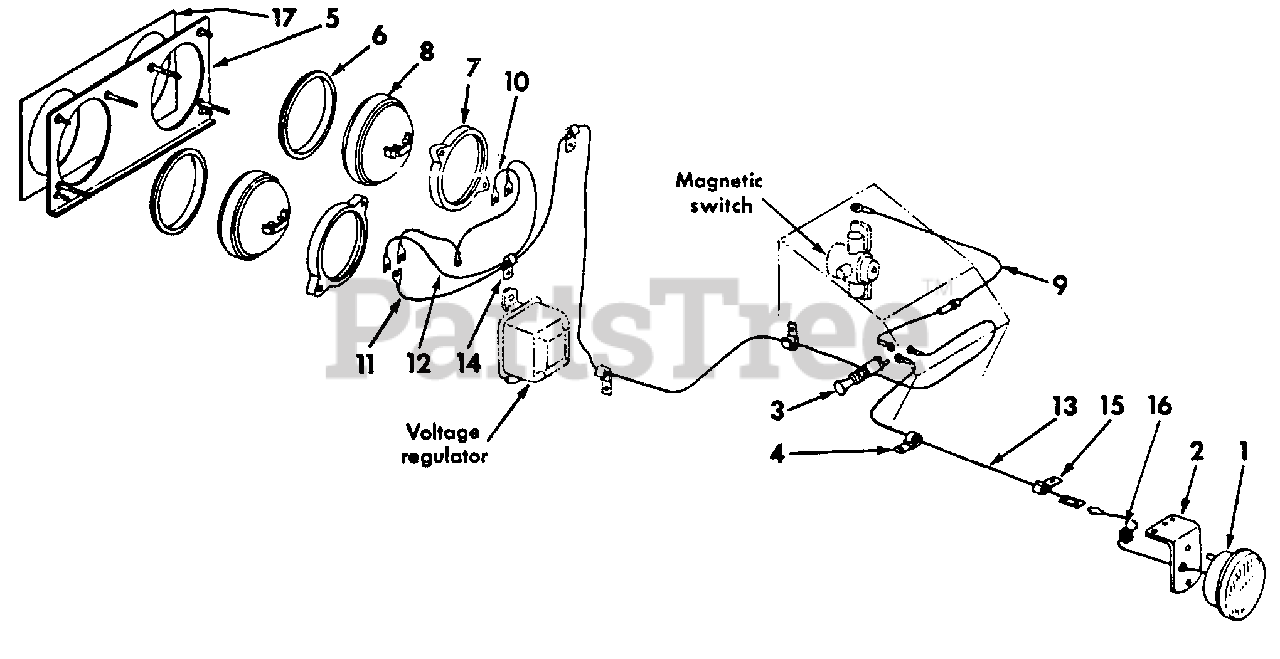

71 - Cub Cadet Garden Tractor Electric Lighting Parts Diagram

Garden Tractor

Electric Lighting Parts Diagram

  • Title

1

Cub Cadet IH-121846-C91

Taillight Assy

Note: (Only serviceable items are)

$

$

Currently unavailable

Cub Cadet IH-81714-R1

Gasket, Taillight

$

$

Currently unavailable

Cub Cadet IH-142450

Lamp, No. 67

$

$

Not available

Cub Cadet IH-157729-R1

Lens, Taillight

$

$

Currently unavailable

Cub Cadet IH-121846-C91

Taillight Assy

Note: (Only serviceable items are)

$

$

Currently unavailable

Cub Cadet IH-142450

Lamp, No. 67

$

$

Not available

~NLA

Lens, Taillight

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 C-Z Hex

$4.99

$

In Stock, Qty 19

0

Cub Cadet 736-0329

Washer, 1/4 C-Z Med Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

2

~NLA

Bracket, Taillight Mounting

$

$

Not available

3

Cub Cadet IH-62801-DC

Switch Assy, Lighting
(Superseded to IH-62801-DCP)

$

$

Not available

~NLA

Spacer, Lighting Switch

$

$

Not available

4

Cub Cadet 726-3021

Clip, Taillight Cable Snap On

$

$

Not available

5

~NLA

Panel Assy, Headlight Mounting

$

$

Not available

6

Cub Cadet IH-389745-R1

Ring, Headlight Retaining

$

$

Currently unavailable

7

Cub Cadet IH-389746-R1

Ring, Headlight Clamp
(Superseded to IH-389746-R2)

$

$

Not available

Nut, 10-32 C-Z Wing

$

$

Not available

8

Cub Cadet 725-0222

Unit Assy, Sealed Beam Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

9

Cub Cadet IH-404387-R91

Cable Assy, Lighting Switch to Magnetic Switch

$

$

Currently unavailable

Cub Cadet IH-120114

Fuse, Cartridge Type AGC 10

$

$

Not available

10

~NLA

Cable Assy, Headlight to Ground

$

$

Not available

11

~NLA

Cable Assy, Lighting Switch to LH Headlight

Note: (Replaces IH-385116-R91)

$

$

Not available

12

Cub Cadet IH-404404-R1

Cable Assy, RH Headlight to LH Headlight

$

$

Currently unavailable

13

~NLA

Cable Assy, Lighting Switch to Taillight

$

$

Not available

14

Cub Cadet 726-3025

Clip, Headlight Cable
(Superseded to 726-0272)

Note: (On voltage regulator upper mounting bolt)

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-3025

Clip, Lighting Switch to Taillight Cable
(Superseded to 726-0272)

Note: (On rear frame LH side second bolt from rear)

$7.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 735-3008

Grommet, Taillight Cable

$

$

Not available

17

~NLA

Product Graphics, Headlight Panel

$

$

Not available
