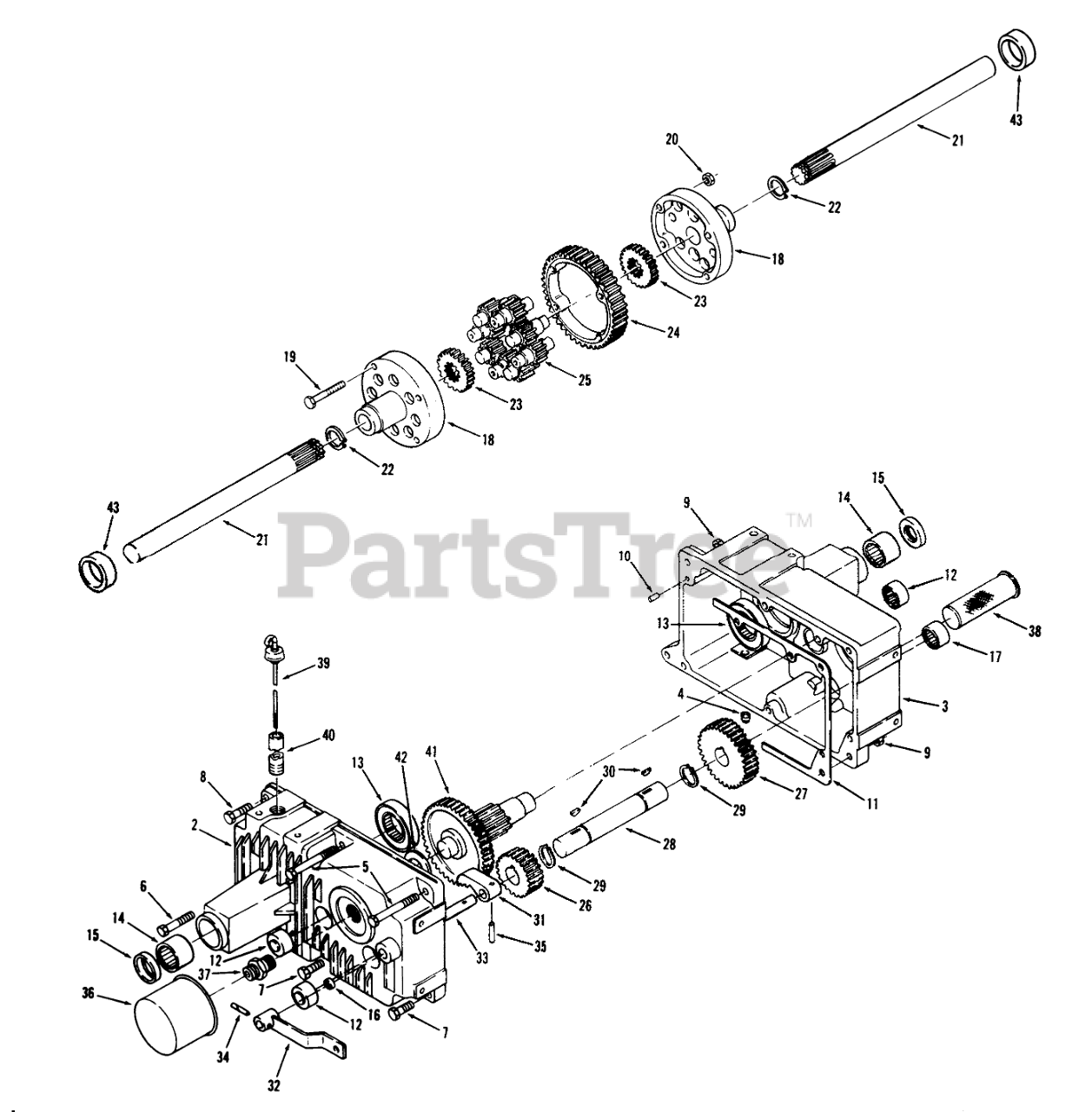

71-20KS01 (D-200) - Toro Lawn Tractor (1977) TRANSAXLE Parts Diagram

Lawn Tractor

TRANSAXLE Parts Diagram

  • Title
1

Toro 103643

Assy-Transaxle

$

$

Not available

2

Toro 103636

RH TRANSMISSION CASE

$

$

Not available

3

Toro 102617

Case LH

$

$

Not available

4

Toro 943460

PLUG 1/4 PIPE ALLEN
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

5

Toro 908143

H H C S
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

6

Toro 908043

HHCS
(Superseded to 323-15)

$1.99

$

In Stock, only 4 left!

0

7

Toro 908040

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

8

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

9

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

10

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

11

Toro 5999

GASKET

$

$

Not available

12

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

13

Toro 8048

NEEDLE BEARING

$

$

Not available

14

Toro 1526

Bearing-Axle

$

$

Not available

15

Toro 6449

SEAL-OIL

$24.99

$

In Stock, only 1 left!

0

16

Toro 5959

SEAL BRAKE SHAFT

$

$

Not available

17

Toro 8049

Needle Bearing
(Superseded to 5960)

$

$

Not available

18

Toro 105060

DIFFERENTIAL END CAP

$256.99

$

Usually ships in 3-6 days

0

19

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, only 1 left!

0

20

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

21

Toro 101893

REAR AXLE

$

$

Not available

22

Toro 7169

SNAP RING

$

$

Not available

23

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

24

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1209.99

$

Usually ships in 3-6 days

0

25

Toro 101623

GEAR-PINION, 11T

$116.99

$

Usually ships in 3-6 days

0

26

Toro 101886

20T GEAR

$

$

Not available

27

Toro 101885

Gear 44T

$

$

Not available

28

Toro 5965

SHAFT GEAR

$

$

Not available

29

Toro 936131

Snap Ring
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 15

0

30

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, only 4 left!

0

31

Toro 103350

Parking Pawl

$

$

Not available

32

Toro 103961

LEVER BRAKE ASSY

$

$

Not available

33

Toro 103351

Parking Shaft

$

$

Not available

34

Toro 933152

Pin-Roll
(Superseded to 32121-50)

$3.49

$

In Stock, only 3 left!

0

35

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

36

Toro 102819

Filter
(Superseded to 79-5270)

$21.99

$

In Stock, only 1 left!

0

37

Toro 5991

FITTING

$

$

Not available

38

Toro 5992

Strainer
(Superseded to 106047)

$

$

Not available

39

Toro 101847

Dipstick
(Superseded to 101847-03)

$

$

Not available

40

Toro 105209

Nipple
(Superseded to 107968)

$

$

Not available

41

$

$

Not available

42

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

43

Toro 8052

RACE BEARING

$

$

Not available
