71-20KS01 (D-200) - Toro Lawn Tractor (1977) LIGHTS Parts Diagram

Lawn Tractor

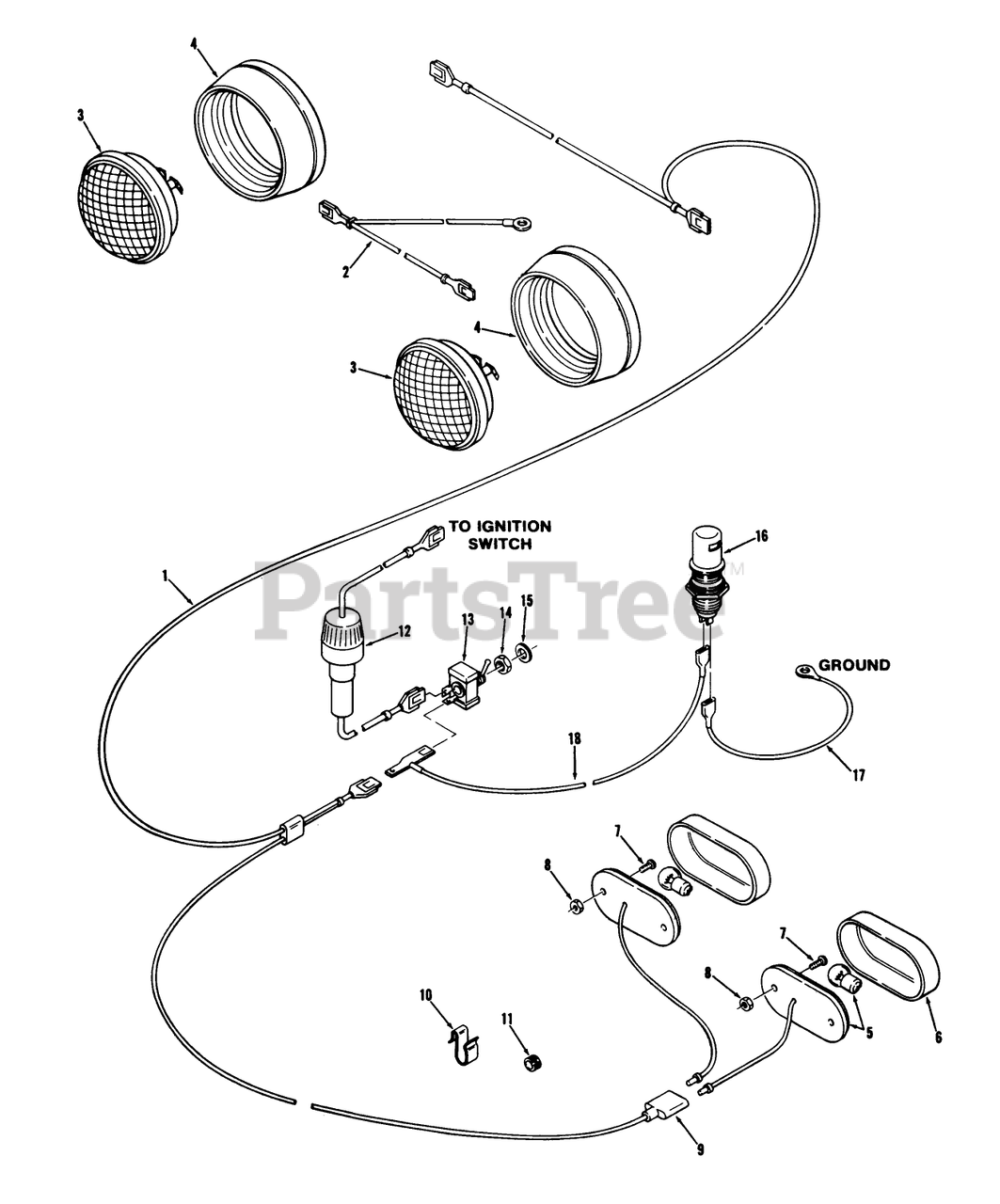

LIGHTS Parts Diagram

  • Title

1

Toro 102813

Control Clip

$

$

Not available

2

Toro 102815

Wire Assy

$

$

Not available

3

Toro 102881

HEADLAMP

$

$

Not available

4

Toro 102081

Grommet

$

$

Not available

5

Toro 105202

BASE-TAIL LIGHT

$

$

Not available

6

Toro 102884

Lens-Taillight
(Superseded to 112564)

$10.99

$

In Stock, only 4 left!

0

7

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

8

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

9

Toro 7618

CONNECTOR 3 WIRE

$

$

Not available

10

Toro 3023

SPEED CLIP

$

$

Not available

11

Toro 102893

Grommet

$

$

Not available

12

Toro 101846

ASSY FUSED CONNECTOR

$

$

Not available

13

Toro 102138

SWITCH-LIGHTS

$42.99

$

Usually ships in 3-6 days

0

14

Toro 8785

Nut, Knurled

$

$

Not available

15

Toro 8786

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

16

Toro 104032

LAMP-DASH

$

$

Not available

17

Toro 103726

SY WIRE HR METER G

$

$

Not available

18

Toro 104031

Wire Assy

$

$

Not available
