71-20KS01 (D-200) - Toro Lawn Tractor (1977) D-160 ONAN ENGINE, IGNITION GROUP Parts Diagram

Lawn Tractor

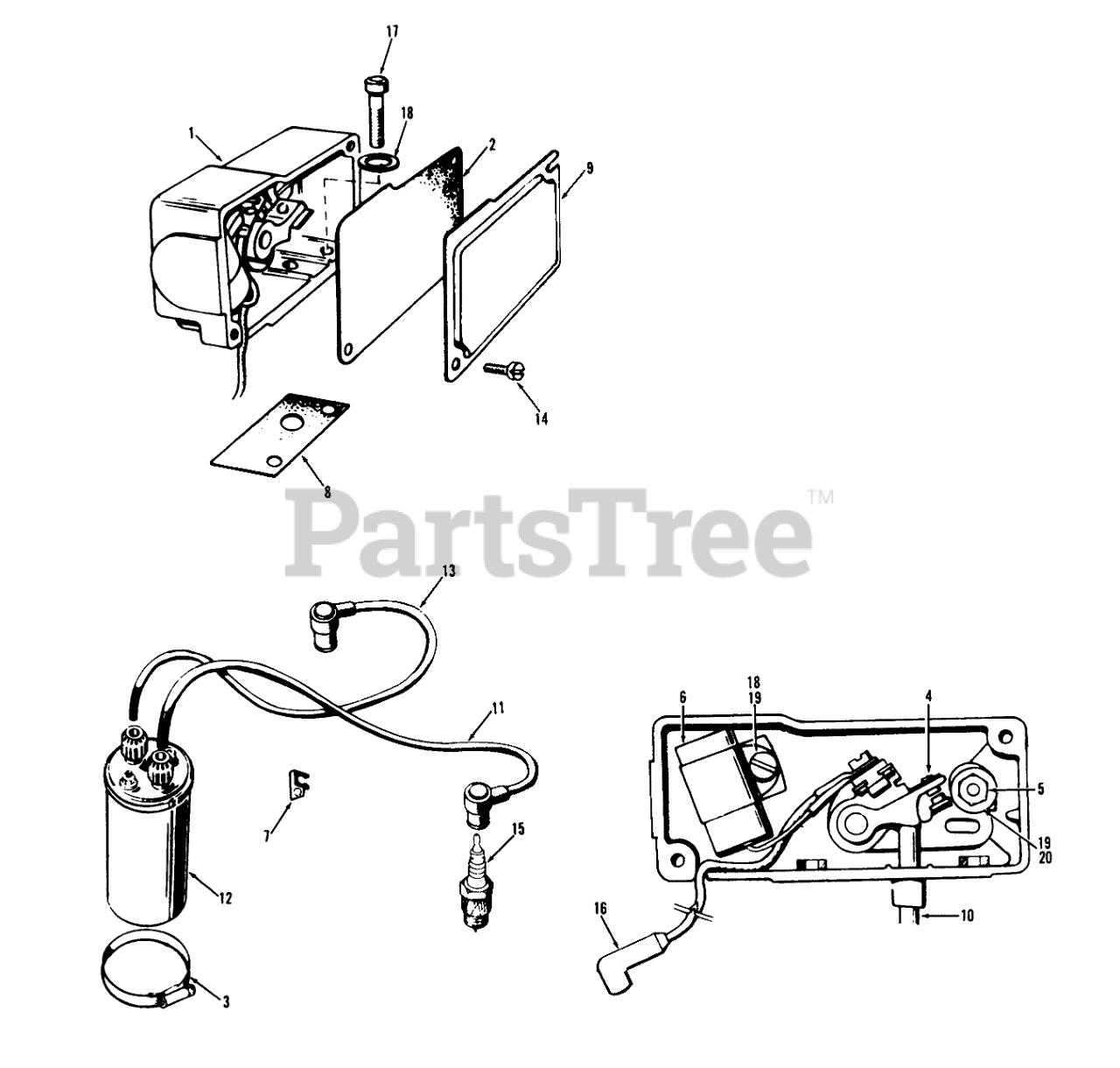

D-160 ONAN ENGINE, IGNITION GROUP Parts Diagram

  • Title

1

Toro 201147

Breaker Box

$

$

Not available

2

Toro 201148

Gasket-Breaker Box Cover

Note: Indicates parts included in Breaker Box Part No. 201147.

$

$

Not available

3

Toro 201149

Coil Mounting Clamp

$

$

Not available

4

Toro 201150

SET-BREAKER POINT

Note: Indicates parts included in Breaker Box Part No. 201147.

$

$

Not available

6

Toro 201151

CONDENSER-BRKER PTS

Note: Indicates parts included in Breaker Box Part No. 201147.

$

$

Not available

7

Toro 201152

Clip,Spark Plug Cable
(Superseded to 59-0520)

$

$

Not available

8

Toro 201153

Gasket,Breaker Box Mounting
(Superseded to 57-9260)

$

$

Not available

9

Toro 201154

Breaker Box Cover

Note: Indicates parts included in Breaker Box Part No. 201147.

$

$

Not available

10

Toro 201155

Plunger
(Superseded to 57-9270)

$

$

Not available

11

Toro 201156

Cable, Spark Plug (19")

$

$

Not available

12

Toro 201157

Ignition Coil
(Superseded to 57-9310)

$

$

Not available

13

Toro 201158

Spark Plug Cable 16 3/4 in

$

$

Not available

14

Toro 201159

Pan HD Screw 8-32 X 5/16

Note: Indicates parts included in Breaker Box Part No. 201147.

$

$

Currently unavailable

15

Toro 201160

Spark Plug

$

$

Currently unavailable

16

Toro 201161

Wire Assy-Points To Coil

Note: Indicates parts included in Breaker Box Part No. 201147.

$

$

Not available

17

Toro 201162

Hex Bolt 1/4-20 X 3/4 in

Note: Indicates parts included in Breaker Box Part No. 201147.

$

$

Currently unavailable

18

Toro 201164

Condenser Mounting (#8)

Note: Indicates parts included in Breaker Box Part No. 201147.

$

$

Currently unavailable

18

Toro 201163

Breaker Box Mounting (1/4")

Note: Indicates parts included in Breaker Box Part No. 201147.

$

$

Currently unavailable

19

Toro 201166

Pan HD Screw-Breaker Points

Note: Indicates parts included in Breaker Box Part No. 201147.

$

$

Currently unavailable

19

Toro 201165

Pan HD Screw-Condenser

Note: Indicates parts included in Breaker Box Part No. 201147.

$

$

Currently unavailable

20

Toro 201167

Nut-Breaker Points

Note: Indicates parts included in Breaker Box Part No. 201147.

$

$

Currently unavailable
