71-20KS01 (D-200) - Toro Lawn Tractor (1977) D-160 ONAN ENGINE, FUEL PUMP PARTS GROUP Parts Diagram

Lawn Tractor

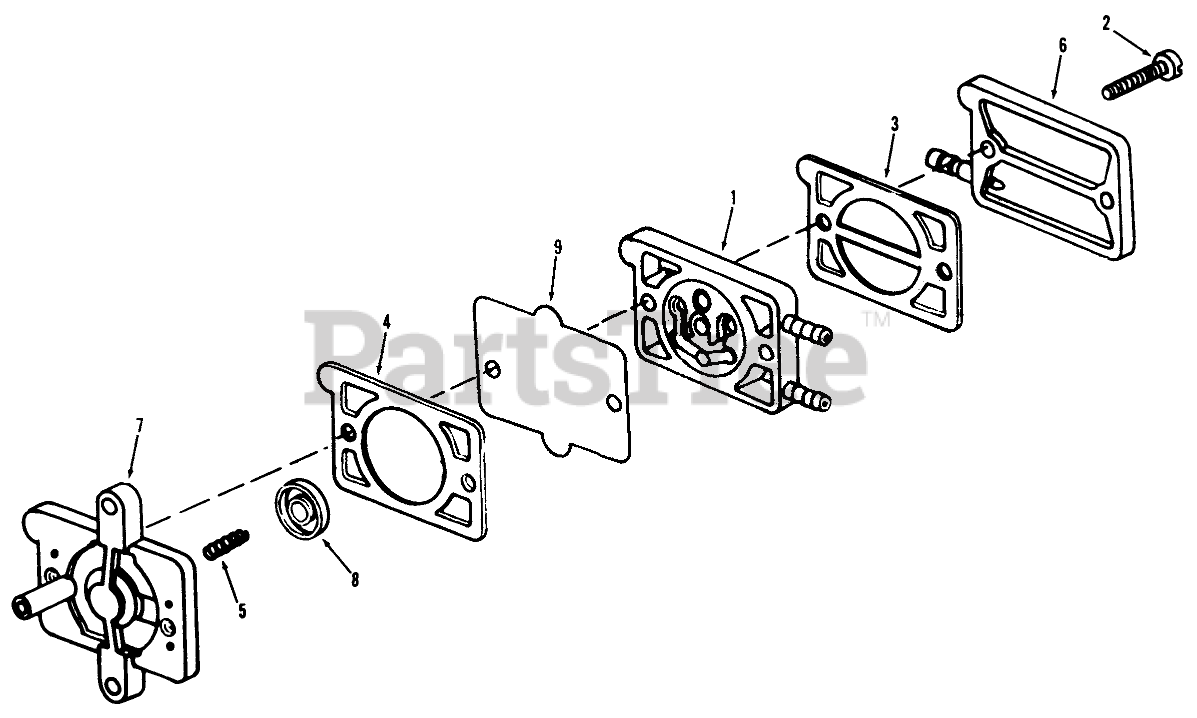

D-160 ONAN ENGINE, FUEL PUMP PARTS GROUP Parts Diagram

  • Title
1

Toro 201223

Valve Plate Assy
(Superseded to 57-9080)

$

$

Not available

2

Toro 201224

Screw-Pump Cover

$

$

Currently unavailable

3

Toro 201225

Gasket-Cover To Valve Plate
(Superseded to 57-9070)

$

$

Not available

4

Toro 201226

Gasket-Base To Diaphram
(Superseded to 57-8740)

$

$

Not available

5

Toro 201227

Spring-Pump To Diaphram
(Superseded to 57-8750)

$

$

Not available

6

Toro 201228

Cover-Pump

$

$

Currently unavailable

7

Toro 201229

Base Pump

$

$

Currently unavailable

8

Toro 201230

Plate-Pump Spring
(Superseded to 57-9080)

$

$

Not available

9

Toro 201231

Pump Diaphragm
(Superseded to 57-9080)

$

$

Not available
