71-16OS01 (D-160) - Toro Lawn Tractor (1977) WHEELS AND TIRES Parts Diagram

Lawn Tractor

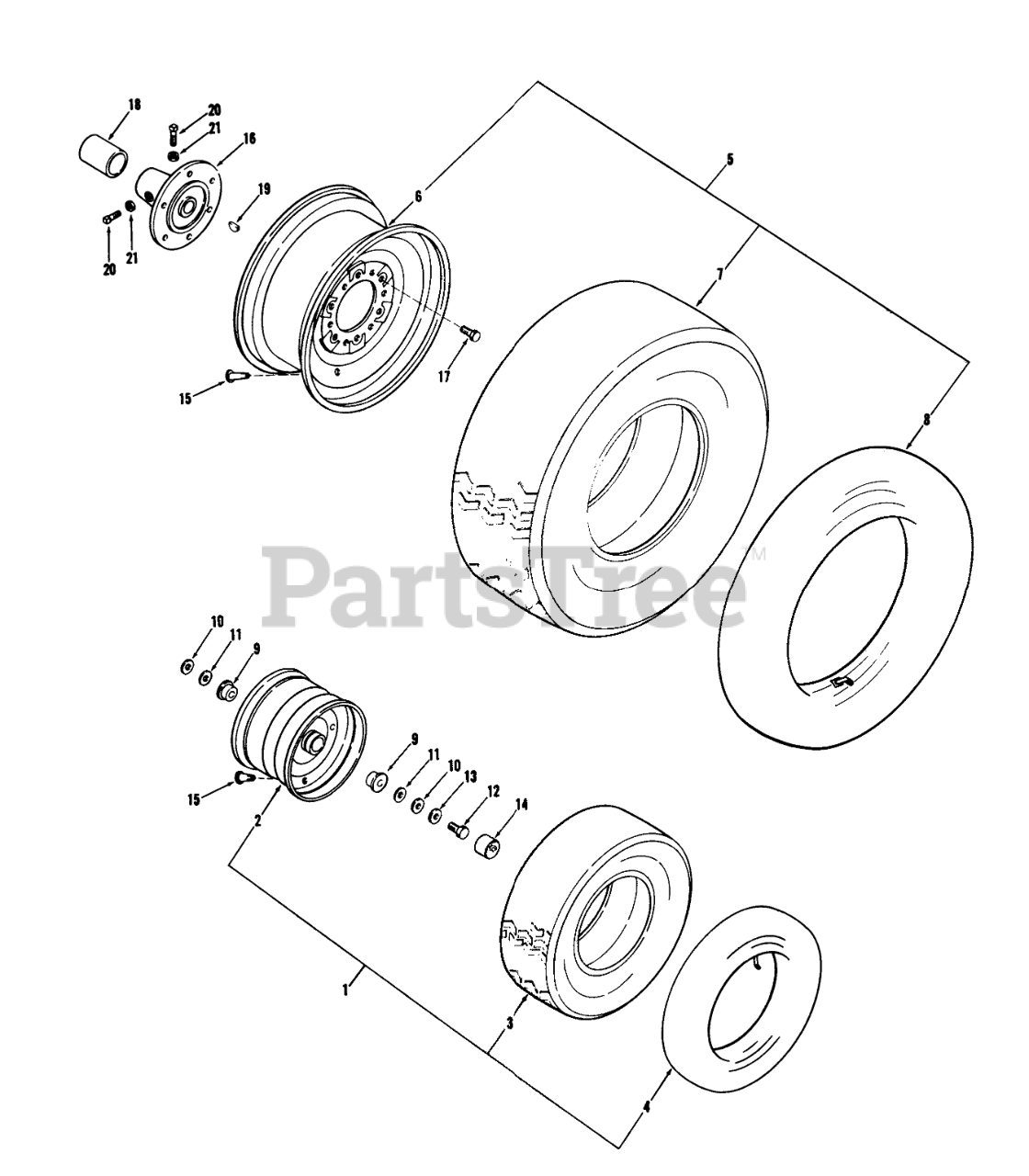

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 104397

ASSY-WHEEL

$787.99

$

Usually ships in 3-6 days

0

2

Toro 104399

Wheel

$

$

Not available

3

Toro 104464

Tire 18 X 850-8 Staight Rib

$

$

Not available

4

Toro 100078

Tube-Front Tire
(Superseded to 106396)

$41.99

$

Usually ships in 3-6 days

0

5

Toro 104156

Rear Wheel & Tire Cleat

$

$

Currently unavailable

5

Toro 103122

Rear Wheel & Tire Turf

$

$

Not available

6

Toro 103123

Wheel 12 x 10.5 PC

$

$

Not available

7

Toro 103124

Tire, Extra Width Traction

$

$

Not available

7

Toro 104157

Tire, Extra Width Cleat

$

$

Not available

8

Toro 103190

Yoke
(Superseded to 106397)

$

$

Not available

9

Toro 104396

BEARING WHEEL

$

$

Not available

10

Toro 920251

USE 920251P WASHER

$3.49

$

In Stock, only 2 left!

0

11

Toro 920252

Washer
(Superseded to 9202524)

$1.99

$

Usually ships in 3-6 days

0

12

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

13

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

14

Toro 104398

HUBCAP

$

$

Not available

15

Toro 5108

VALVE

$6.99

$

In Stock, Qty 14

0

16

Toro 102372

REAR HUB R

$

$

Not available

18

Toro 103406

Axle Cover Tube

$

$

Not available

19

Toro 937121

WOODRUFF KEY

$

$

Not available

20

Toro 909556

SS-SQ HD3/8-16X1 1/2
(Superseded to 3243-13)

$4.49

$

Usually ships in 3-6 days

0

21

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

17

Toro 1487

LUG BOLT WHEEL 7/162

$18.99

$

Usually ships in 3-6 days

0
