71-16OS01 (D-160) - Toro Lawn Tractor (1977) SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

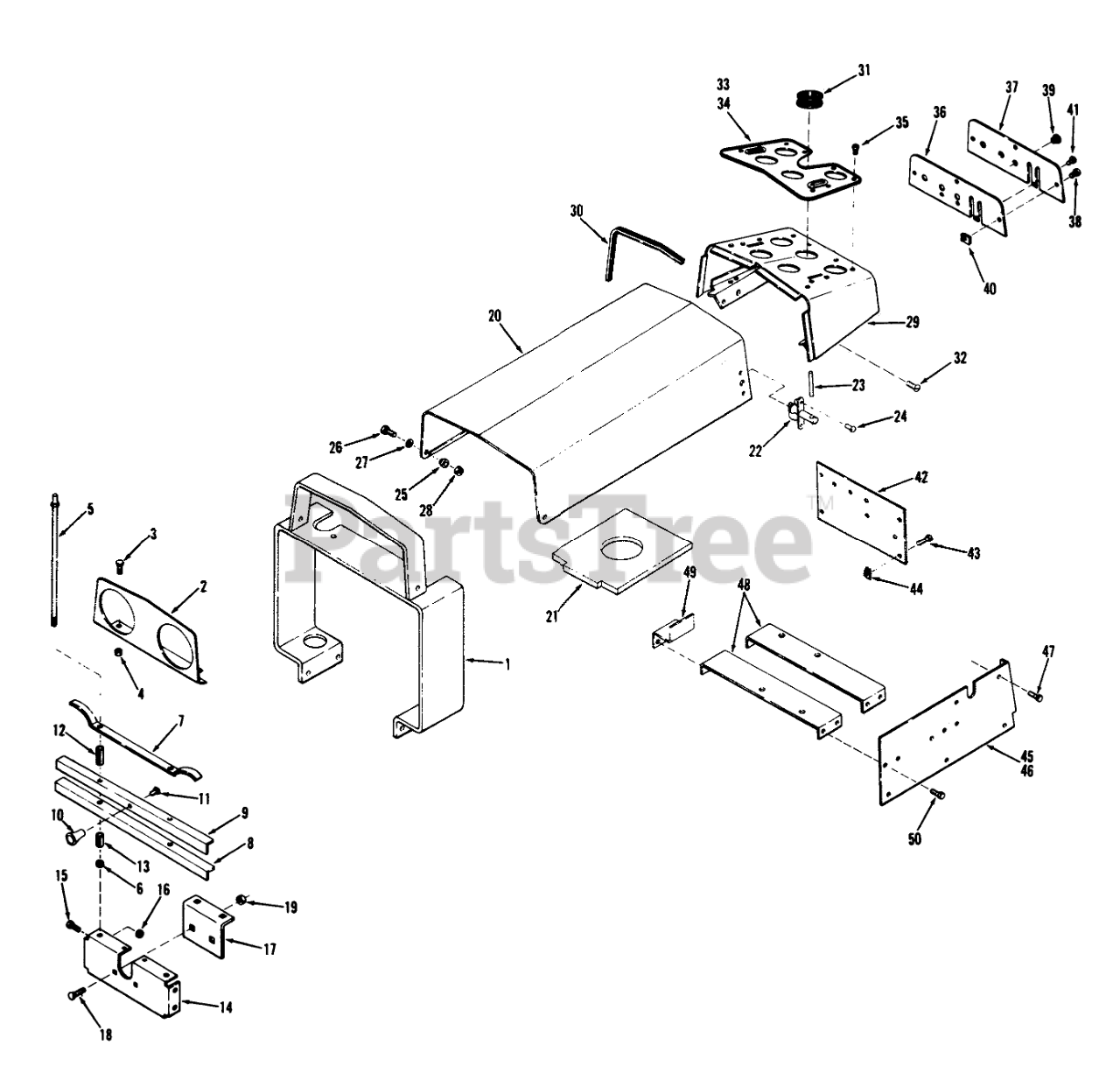

SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 103789

Asy-Grille Shroud

$

$

Not available

2

Toro 101799

Light Bracket

$

$

Not available

3

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

5

Toro 103956

ROD-GRILLE

$

$

Not available

6

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

7

Toro 101153

SPRING GRILLE

$

$

Not available

7

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

8

Toro 105097

ANGLE-GRILLE

$

$

Not available

9

Toro 105294

ANGLE-GRILLE

$

$

Not available

10

Toro 103401

KNOB

$

$

Not available

11

Toro 911738

SCREW

$

$

Not available

13

Toro 979179

Spacer

$

$

Not available

14

Toro 101911

Cover-Front

$

$

Not available

15

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

16

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

17

Toro 103362

Cover

$

$

Not available

18

Toro 900013

Bolt-Hex

$

$

Not available

19

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

20

Toro 102687

Assy-Hood

$

$

Not available

21

Toro 103086

INSULATION FOAM

$

$

Not available

22

Toro 103394

Latch

$

$

Not available

23

Toro 103410

Pin

$

$

Not available

24

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

25

Toro 102675

Bushing

$

$

Not available

26

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

27

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

28

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

29

Toro 104905

Control Housing

$

$

Not available

30

Toro 102897

Edge Trim

$

$

Not available

31

Toro 2708

GROMMET

$

$

Not available

32

Toro 926694

SCREW

$

$

Not available

34

Toro 103724

Plate-Instrument

$

$

Not available

35

Toro 100609

Plate Screws

$

$

Not available

36

Toro 105095

Plate

$

$

Not available

37

Toro 105013

Plate-Rear Instrument

$

$

Not available

38

Toro 926235

Screw

$

$

Currently unavailable

39

Toro 104868

PLUG BUTTON

$

$

Not available

40

Toro 7057

Speed Nut

$

$

Currently unavailable

41

Toro 100609

Plate Screws

$

$

Not available

42

Toro 104922

Panel

$

$

Not available

43

Toro 960175

Screw

$

$

Not available

44

Toro 102824

Nut

$

$

Not available

45

Toro 103795

Panel-Console RH

$

$

Not available

46

Toro 103796

Panel-Console LH

$

$

Not available

47

Toro 926694

SCREW

$

$

Not available

48

Toro 101080

Battery Support

$

$

Not available

49

Toro 104754

Battery Bracket

$

$

Not available

50

Toro 926694

SCREW

$

$

Not available

3

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

4

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

12

Toro 979213

Spacer

$

$

Not available

33

Toro 105934

Plate-Instrument

$

$

Currently unavailable
