71-16OS01 (D-160) - Toro Lawn Tractor (1977) HITCHES Parts Diagram

Lawn Tractor

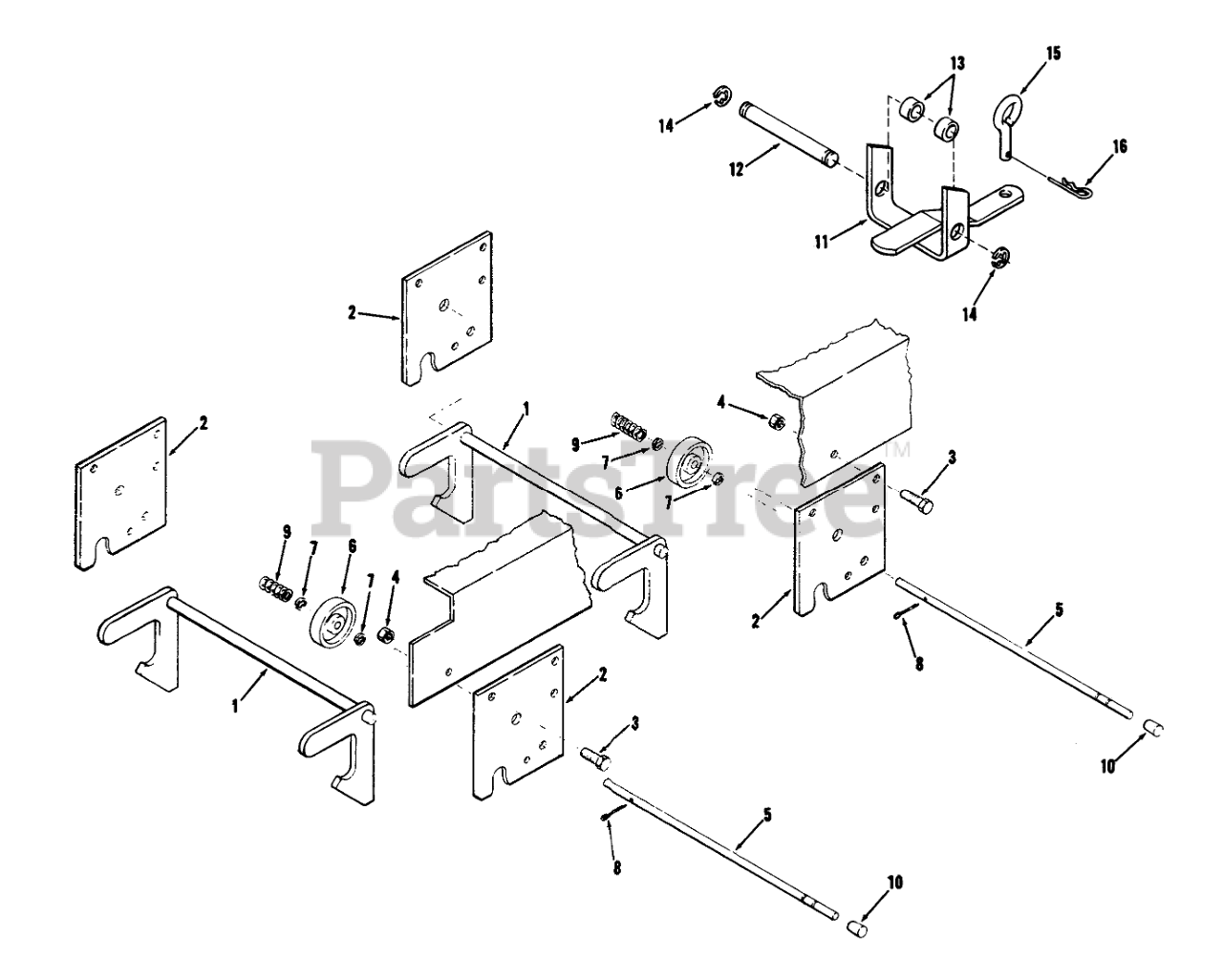

HITCHES Parts Diagram

  • Title
1

Toro 101014

Assy-Latch

$

$

Not available

2

Toro 101013

Hitch Plate

$

$

Not available

3

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

4

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

5

Toro 100995

Rod Lock

$

$

Not available

6

$31.99

$

Usually ships in 3-6 days

0

7

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Toro 932009

Cotter Pin
(Superseded to 3272-9)

$0.99

$

Usually ships in 3-6 days

0

9

Toro 3624

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

10

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

11

Toro 8270

Hitch

$

$

Not available

12

Toro 105269

PIN-STATIONARY HITCH

$

$

Not available

13

Toro 8272

SPACER

$

$

Not available

14

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

15

Toro 1813

Pin-Tool
(Superseded to 106634)

$

$

Not available

16

Toro 933105

Hairpin

$

$

Not available
