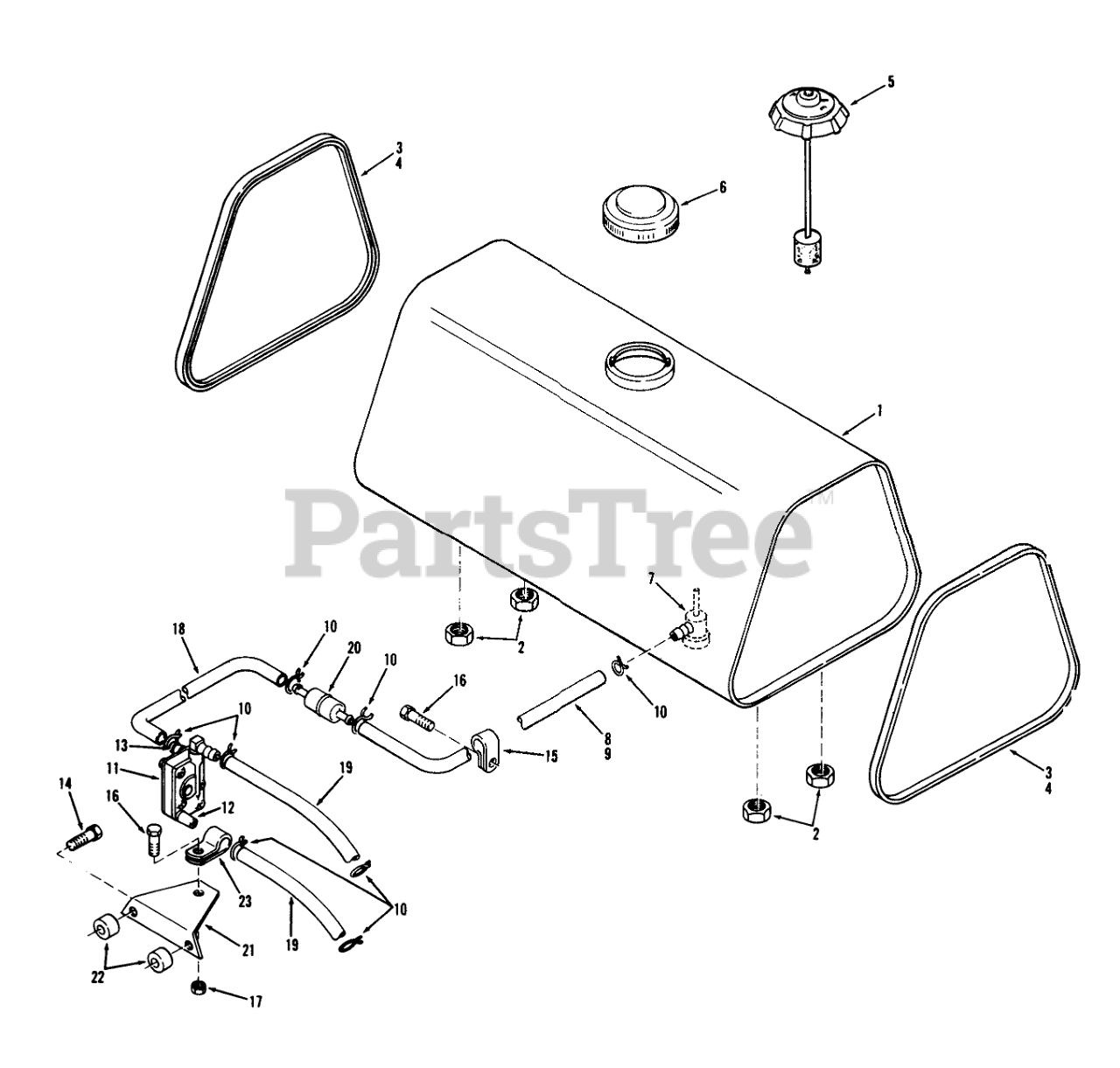

71-16OS01 (D-160) - Toro Lawn Tractor (1977) FUEL SYSTEM Parts Diagram

Lawn Tractor

FUEL SYSTEM Parts Diagram

  • Title
1

Toro 102631

Fuel Tank

$

$

Not available

2

Toro 960010

Flanged Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

3

Toro 102898

Edge Trim

$

$

Not available

6

Toro 2714

Cap-Tank
(Superseded to 102587)

$149.99

$

Usually ships in 3-6 days

0

7

Toro 4941

FILTER & VALVE ASSY

$

$

Not available

8

Toro 105018

Bracket
(Superseded to 107942)

$

$

Not available

15

Toro 101861

CLAMP-HOSE

$

$

Not available

20

Toro 100327

Filter
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 14

0

1

Toro 103713

Fuel Tank
(Superseded to 103713-03)

$

$

Not available

4

Toro 103845

GAUGE CAP

$171.99

$

Usually ships in 3-6 days

0

5

Toro 103845

GAUGE CAP

$171.99

$

Usually ships in 3-6 days

0

9

Toro 103787

Fuel Line 62
(Superseded to 110521)

$

$

Not available

10

Toro 950154

Clamp

$

$

Not available

11

Toro 103085

Pump Fuel
(Superseded to 27-7000)

$

$

Not available

12

Toro 943001

Coupling

$

$

Not available

13

Toro 105076

FITTING STRAIGHT

$

$

Not available

14

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

16

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

17

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

19

Toro 102604

Skid Bracket
(Superseded to 100061)

$

$

Not available

21

Toro 104683

Bracket

$

$

Not available

22

Toro 100304

Spacer

$6.49

$

Usually ships in 3-6 days

0

23

Toro 101862

Clamp

$

$

Not available
