71-16OS01 (D-160) - Toro Lawn Tractor (1977) FRONT AXLE AND STEERING Parts Diagram

Lawn Tractor

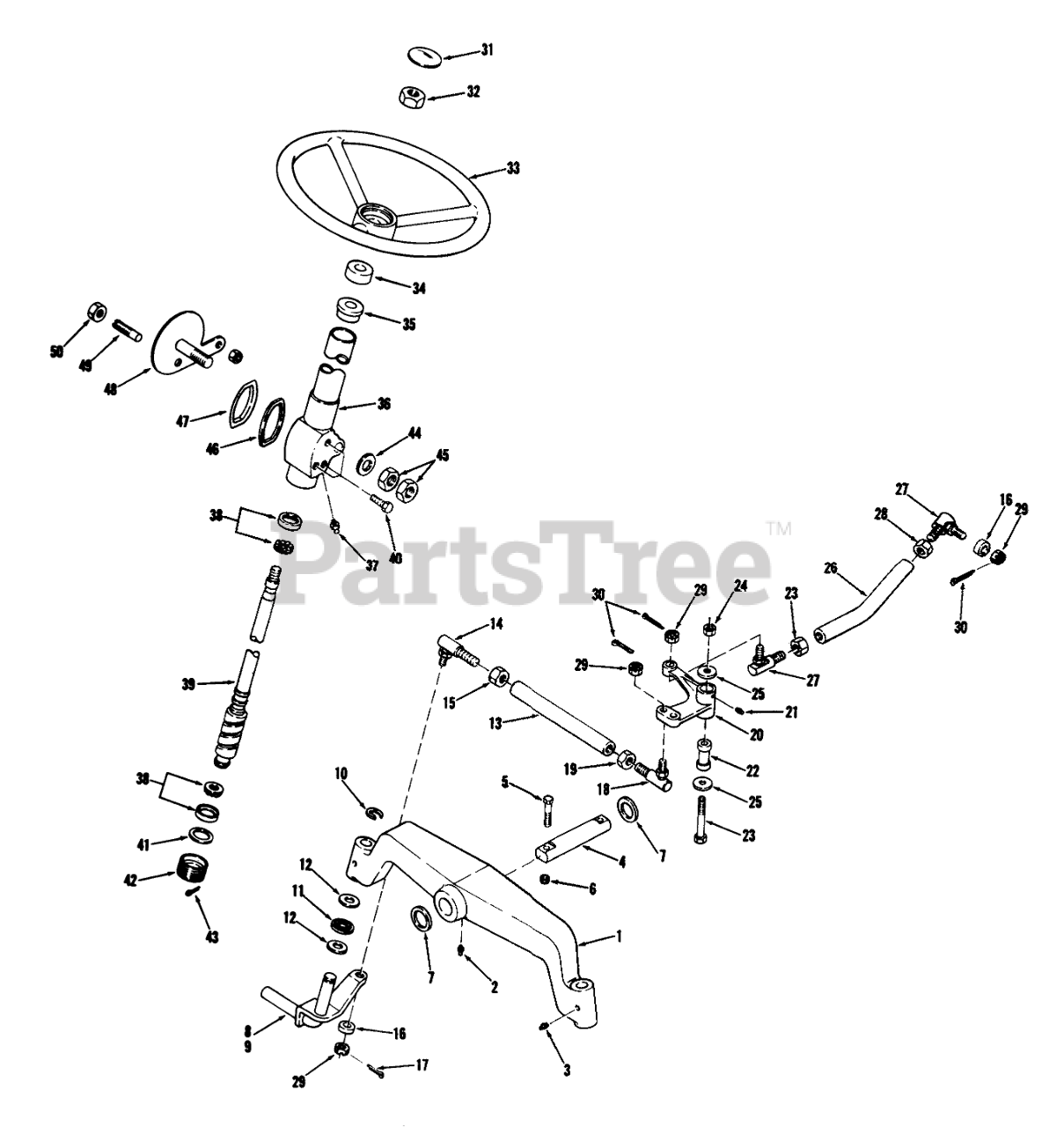

FRONT AXLE AND STEERING Parts Diagram

  • Title

1

Toro 104390

Axle Front

$

$

Not available

2

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

3

Toro 1030

Zerk

$

$

Not available

4

Toro 100887

PIN AXLE

$

$

Not available

5

Toro 908048

HHCS

$

$

Not available

6

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

7

Toro 920239

Washer
(Superseded to 9202394)

$2.99

$

Usually ships in 3-6 days

0

8

Toro 104394

Spindle Assembly R.H.

$

$

Not available

9

Toro 104395

ASSY-SPNDLE&STEER R

$

$

Not available

10

Toro 5700

E RING

$4.49

$

Usually ships in 3-6 days

0

11

Toro 9865

BEARING-THRUST
(Superseded to 252-66)

$12.99

$

In Stock, only 2 left!

0

12

Toro 9548

WASHER-THRUST

$

$

Not available

13

Toro 103419

TIE ROD R

$

$

Not available

14

Toro 103416

Ball Joint RH
(Superseded to 99-5863)

$

$

Not available

15

Toro 915004

NUT-6

$

$

Not available

16

Toro 920246

Washer
(Superseded to 9202464)

$

$

Not available

17

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

18

Toro 103417

LH BALL JOINT R

$

$

Not available

19

Toro 103638

Jam Nut LH 1/2-20
(Superseded to 3220-12)

$2.49

$

Usually ships in 3-6 days

0

20

Toro 104927

Bellcrank-steering

$

$

Not available

21

Toro 1030

Zerk

$

$

Not available

22

Toro 102623

Bushing

$

$

Not available

23

Toro 908066

HEX HD CAP SCREW

$

$

Not available

24

Toro 915665

Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

25

Toro 920041

Washer
(Superseded to 3256-6)

$0.99

$

In Stock, Qty 20+

0

26

Toro 103418

Drag Link

$

$

Not available

27

Toro 104153

BALL JOINT-SHORT R

$

$

Not available

28

Toro 915004

NUT-6

$

$

Not available

29

Toro 915030

Slot Nut 3/8-24
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

30

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

31

Toro 102856

STEERING WHEEL INSE

$

$

Not available

32

Toro 915089

Nut
(Superseded to 3220-6)

$1.49

$

In Stock, Qty 12

0

33

Toro 102624

Steering Wheel

$

$

Not available

34

Toro 103068

Cover-Dust
(Superseded to 21-9260)

$8.99

$

Usually ships in 3-6 days

0

35

Toro 103067

Column Bearing
(Superseded to 38-6300)

$

$

Not available

36

Toro 103064

Assy-Housing and Column

$

$

Not available

37

Toro 103066

Fitting-Grease

$

$

Currently unavailable

38

Toro 103069

BALL CUP KIT

$

$

Not available

39

Toro 103985

Steering Gear

$

$

Not available

40

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

41

Toro 103070

WASHER

$

$

Not available

42

Toro 103065

Adjusting Plug
(Superseded to 21-9130)

$

$

Not available

43

Toro 932019

Cotter Pin

$

$

Currently unavailable

44

Toro 103073

Washer 49/64 X 1 1/4

$

$

Currently unavailable

45

Toro 915090

Nut
(Superseded to 32146-20)

$3.99

$

In Stock, only 4 left!

0

46

Toro 103075

SEAL

$

$

Not available

47

Toro 103074

Retainer-Seal
(Superseded to 22-8470)

$

$

Not available

48

Toro 103071

Lever

$

$

Not available

49

Toro 103072

Stud
(Superseded to 22-8300)

$131.99

$

Usually ships in 3-6 days

0

50

Toro 915088

Nut
(Superseded to 3220-11)

$1.49

$

Usually ships in 3-6 days

0
