71-16OS01 (D-160) - Toro Lawn Tractor (1977) D-160 ONAN ENGINE, CRANKSHAFT, CAMSHAFT, PISTONS AND FLYWHEEL GROUP Parts Diagram

Lawn Tractor

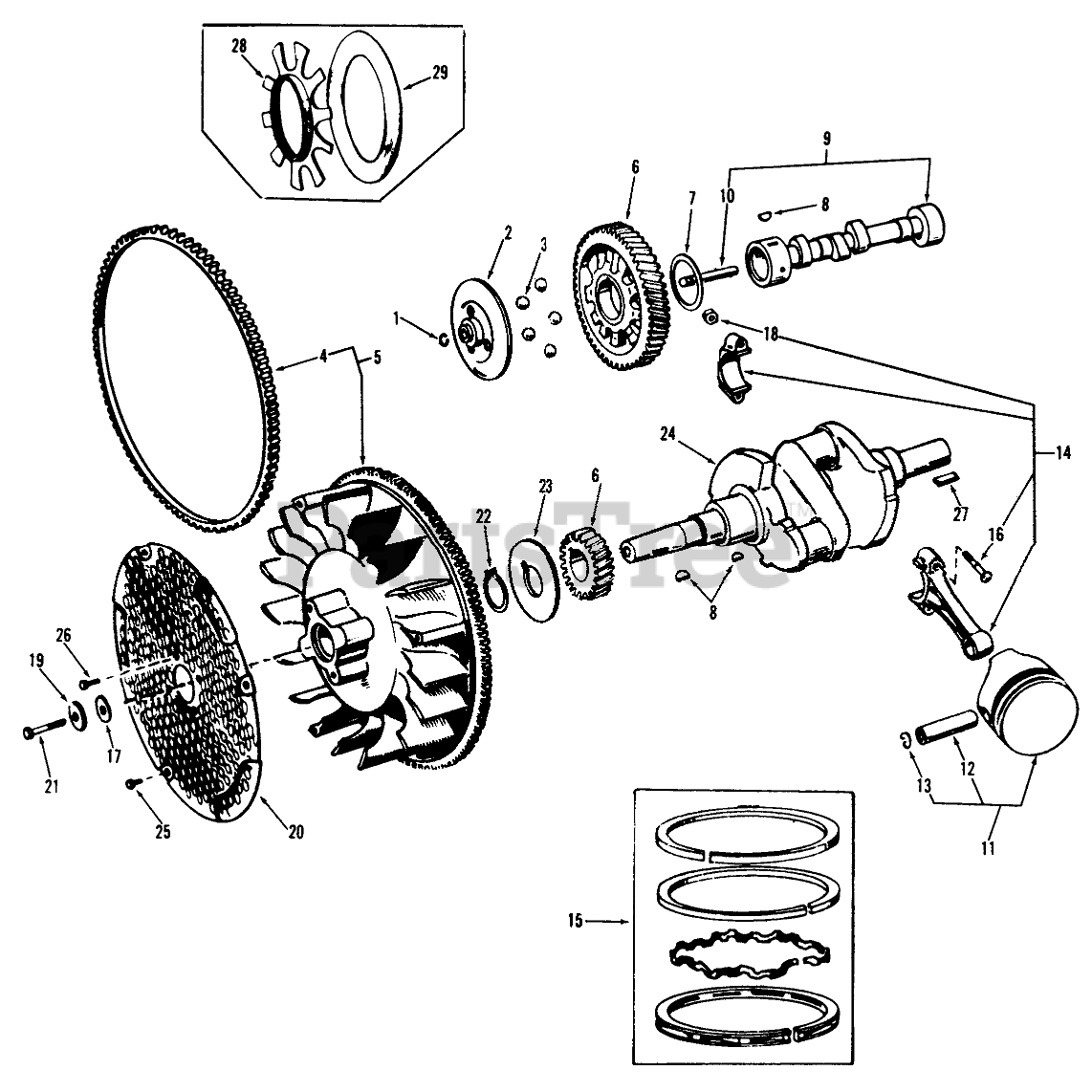

D-160 ONAN ENGINE, CRANKSHAFT, CAMSHAFT, PISTONS AND FLYWHEEL GROUP Parts Diagram

  • Title

1

Toro 201101

Ring-Camshaft Center Pin
(Superseded to 57-9090)

$

$

Not available

2

Toro 201102

Governor Cup
(Superseded to NN10224)

$

$

Not available

3

Toro 201103

Governor Fly Ball
(Superseded to 57-9640)

$

$

Not available

4

Toro 201104

Ring Gear
(Superseded to 57-8180)

$

$

Not available

5

Toro 201105

Flywheel W/Ring Gear & Magnet Ring

$

$

Not available

6

Toro 201106

Camshaft Gear
(Superseded to 57-8210)

$

$

Not available

6

Toro 201107

Crankshaft Gear
(Superseded to 57-8130)

$

$

Not available

7

Toro 201108

Camshaft Thrust Washer
(Superseded to 57-8230)

$

$

Not available

8

Toro 201110

Key, Flywheel
(Superseded to 410087)

$

$

Not available

8

Toro 201109

Key, Cam & Crankshaft Gear

$

$

Currently unavailable

9

Toro 201111

Camshaft-Includes Center Pin

$

$

Currently unavailable

10

Toro 201112

Camshaft Center Pin
(Superseded to 59-0400)

$

$

Not available

11

Toro 201114

.005" Oversize

$

$

Currently unavailable

11

Toro 201113

Standard

$

$

Not available

11

Toro 201118

.040" Oversize

$

$

Currently unavailable

11

Toro 201117

.030" Oversize

$

$

Currently unavailable

11

Toro 201116

.020" Oversize

$

$

Not available

11

Toro 201115

.010" Oversize

$

$

Not available

12

Toro 201119

Wrist Pin
(Superseded to 71-6310)

$

$

Not available

13

Toro 201120

Lock

$

$

Not available

14

Toro 201122

.010" Undersize

$

$

Currently unavailable

14

Toro 201121

Standard
(Superseded to NN10125)

$

$

Not available

14

Toro 201124

.030" Undersize

$

$

Currently unavailable

14

Toro 201123

.020" Undersize

$

$

Currently unavailable

15

Toro 201126

SET-PISTON RING +005

$

$

Not available

15

Toro 201125

SET-PISTON RING STD

$

$

Not available

15

Toro 201130

.040" Oversize

$

$

Currently unavailable

15

Toro 201129

.030" Oversize

$

$

Currently unavailable

15

Toro 201128

.020" Oversize

$

$

Not available

15

Toro 201127

SET-PISTON RING +010

$

$

Not available

16

Toro 201131

Connecting Rod Bolt (Special)

$

$

Not available

17

Toro 201132

Washer 7/16

$

$

Currently unavailable

18

Toro 201133

Lock Nut-Connecting Rod

$

$

Currently unavailable

19

Toro 201134

Lockwasher 7/16 Flywheel

$

$

Currently unavailable

20

Toro 201135

Flywheel Guard
(Superseded to NN10457)

$

$

Not available

21

Toro 201136

Hex Bolt

$

$

Currently unavailable

22

Toro 201137

Retaining Ring
(Superseded to 57-9710)

$

$

Not available

23

Toro 201138

Washer-Crankshaft Gear
(Superseded to 57-8140)

$

$

Not available

24

Toro 201139

CRANKSHAFT
(Superseded to NN10853)

$

$

Not available

25

Toro 201142

Bolt 1/4-20 X 1/2 Whizlock
(Superseded to 59-1100)

$

$

Not available

26

Toro 201143

Locking Screw 5/16-18 X 1/2
(Superseded to 59-1120)

$

$

Not available

27

Toro 201144

Crankshaft Key-PTO Side

$

$

Currently unavailable

28

Toro 201145

Spacer,Governor Flyball

$

$

Not available

29

Toro 201146

Plate,Governor Flyball
(Superseded to 57-8210)

$

$

Not available
