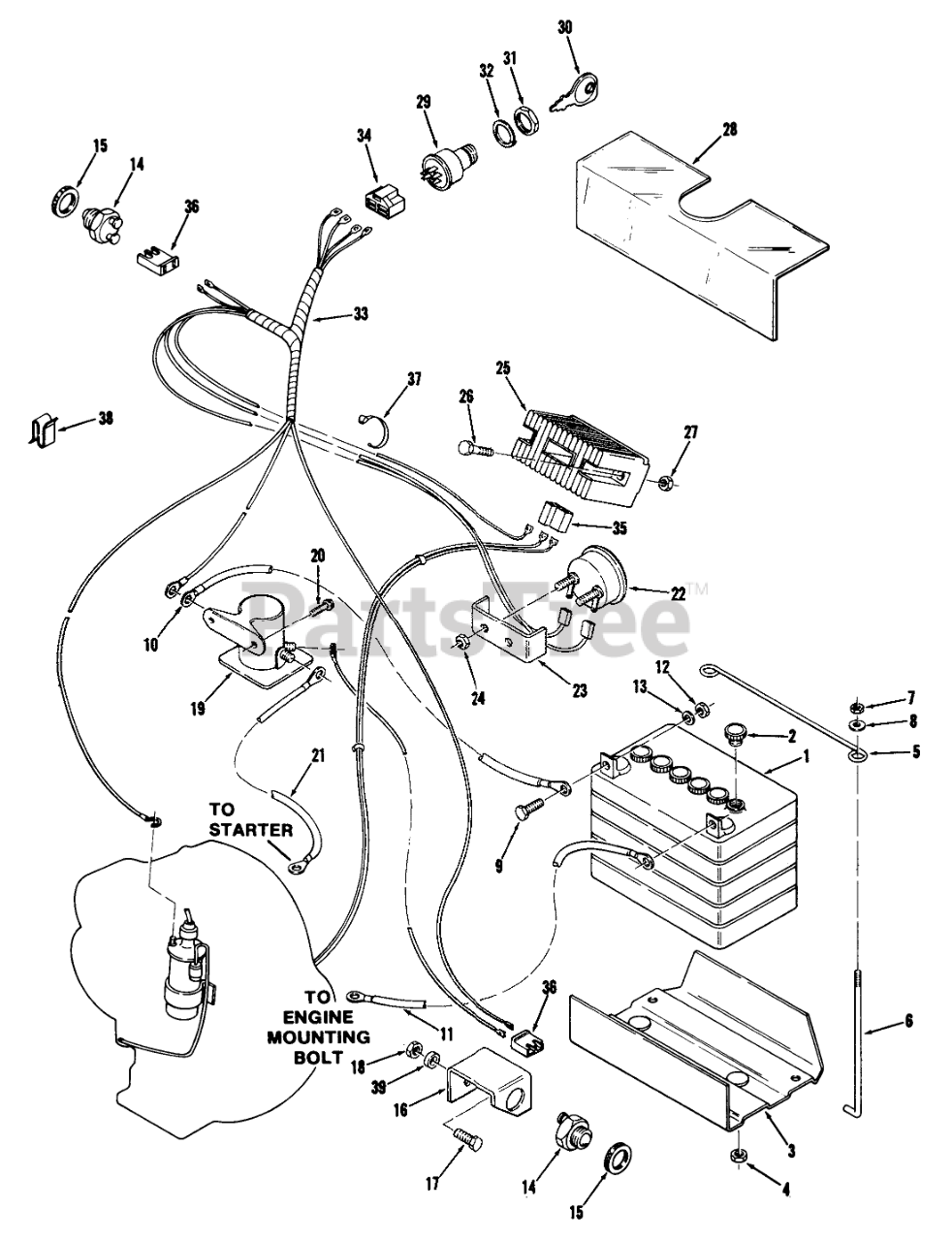

71-16KS02 (C-160) - Toro Lawn Tractor (1977) MAIN ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor

MAIN ELECTRICAL SYSTEM Parts Diagram

  • Title
1

Toro 105842

Battery
(Superseded to 104-8162)

$

$

Not available

2

$

$

Not available

3

Toro 105853

Battery Box

$

$

Not available

4

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

5

Toro 105504

ROD-HOLD DOWN

$19.99

$

In Stock, only 4 left!

0

6

Toro 8107

Hook
(Superseded to 109547)

$10.99

$

In Stock, only 2 left!

0

7

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

8

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

9

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

10

Toro 8655

Wire
(Superseded to 111078)

$22.99

$

Usually ships in 3-6 days

0

11

Toro 3660

Wire
(Superseded to 704057)

$

$

Not available

12

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

13

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

14

Toro 105877

SWITCH-INTERLOK CLUT
(Superseded to 38-0430)

$61.99

$

Usually ships in 3-6 days

0

15

Toro 102277

NUT-SPECIAL 9/16-18

$

$

Not available

16

Toro 101827

Bracket

$

$

Not available

17

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

18

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

19

Toro 8658

Solenoid
(Superseded to 108544)

$116.99

$

Usually ships in 3-6 days

0

20

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

21

Toro 8655

Wire
(Superseded to 111078)

$22.99

$

Usually ships in 3-6 days

0

22

Toro 102046

AMMETER W/CLAMP

$

$

Not available

23

Toro 102047

Clamp
(Superseded to 109604)

$

$

Not available

24

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

25

Toro 101450

REGULATOR-RECTIFIER

$337.99

$

Usually ships in 3-6 days

0

26

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

27

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

28

Toro 101446

CONTROL PROTECTOR

$

$

Not available

29

Toro 103990

SWITCH-IGNITION

$27.99

$

In Stock, only 4 left!

0

30

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

31

$7.49

$

In Stock, only 1 left!

0

32

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

33

Toro 106051

WIRING HARNESS & DIA

$

$

Not available

34

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

35

Toro 101476

CONNECTOR

$

$

Not available

36

Toro 106024

Connector Housing Pedal Switch

$

$

Currently unavailable

37

Toro 100571

PLASTIC TIE

$

$

Not available

38

Toro 3023

SPEED CLIP

$

$

Not available

39

Toro 920220

WASHER

$3.99

$

Usually ships in 3-6 days

0
