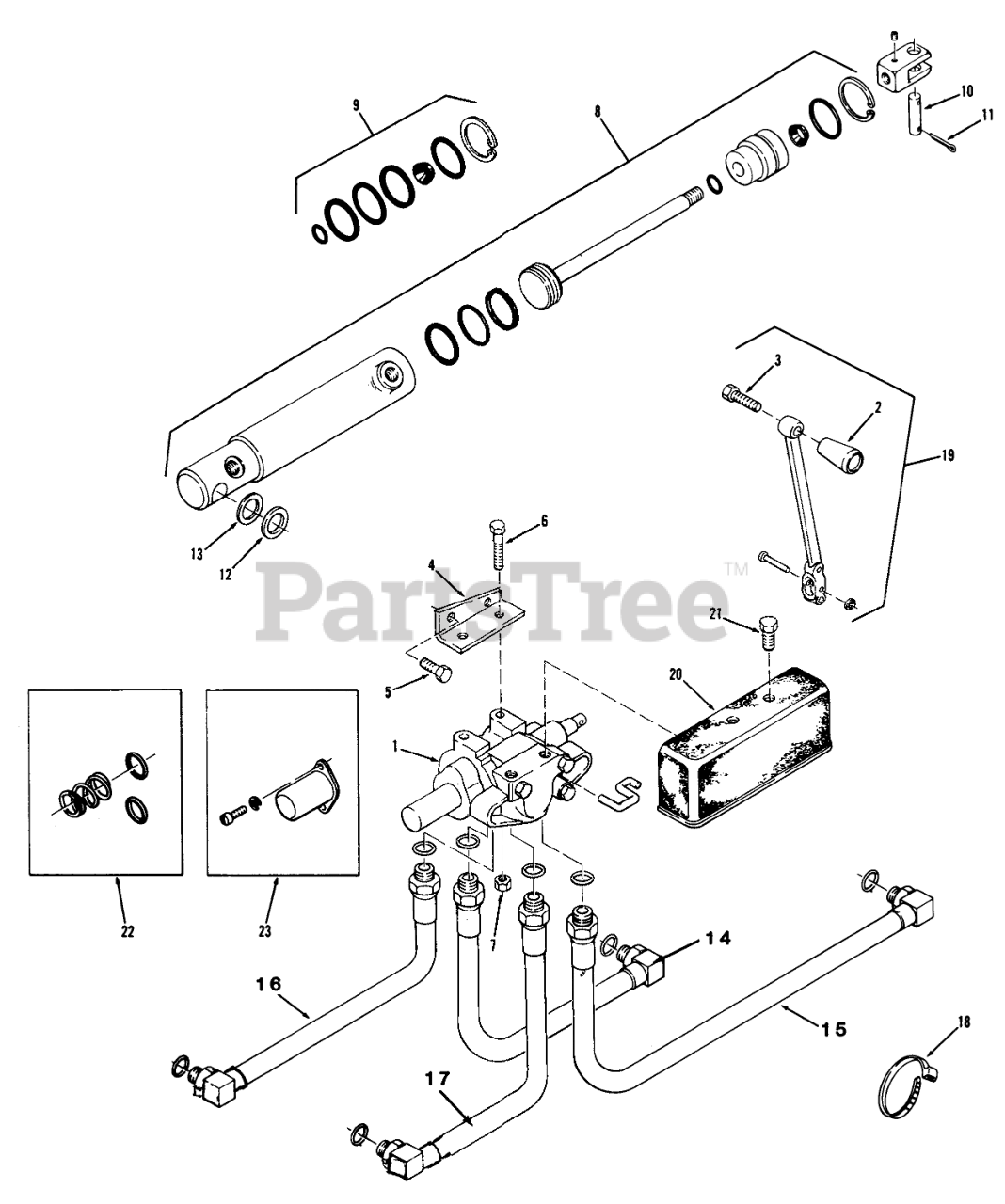

71-16KS02 (C-160) - Toro Lawn Tractor (1977) HYDRAULIC SYSTEM Parts Diagram

Lawn Tractor

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Toro 103204

Valve

$

$

Not available

2

Toro 102892

KNOB

$

$

Not available

3

Toro 960154

SCREW

$

$

Not available

4

Toro 6620

SUPPORT-VALVE

$

$

Not available

5

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

6

Toro 908007

Bolt 1/4-20 X 1 1/2
(Superseded to 321-9)

$4.99

$

Usually ships in 3-6 days

0

7

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

8

Toro 105254

CYLINDER ASSY R

$

$

Not available

9

Toro 101699

S/A O-RING&GASKET AS

$159.99

$

Usually ships in 3-6 days

0

10

Toro 6619

PIN

$

$

Not available

11

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

12

Toro 4064

Spacer
(Superseded to 703269)

$122.99

$

Usually ships in 3-6 days

0

13

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

14

Toro 103213

16" Hose Assembly

$

$

Not available

15

Toro 103214

HOSE HYDRAULIC 19"

$261.99

$

Usually ships in 3-6 days

0

16

Toro 104983

ASSY-HYDRAULIC HOSE

$

$

Not available

17

Toro 101423

HYD HOSE ASSY

$

$

Not available

18

Toro 100571

PLASTIC TIE

$

$

Not available

19

Toro 101537

Assy-Handle
(Superseded to 105145)

$

$

Not available

20

Toro 105253

Cover-Valve

$

$

Not available

21

Toro 926693

Bolt
(Superseded to 9266934)

$8.99

$

In Stock, only 2 left!

0
