71-16KS02 (C-160) - Toro Lawn Tractor (1977) HEAD AND TAIL LIGHTS Parts Diagram

Lawn Tractor

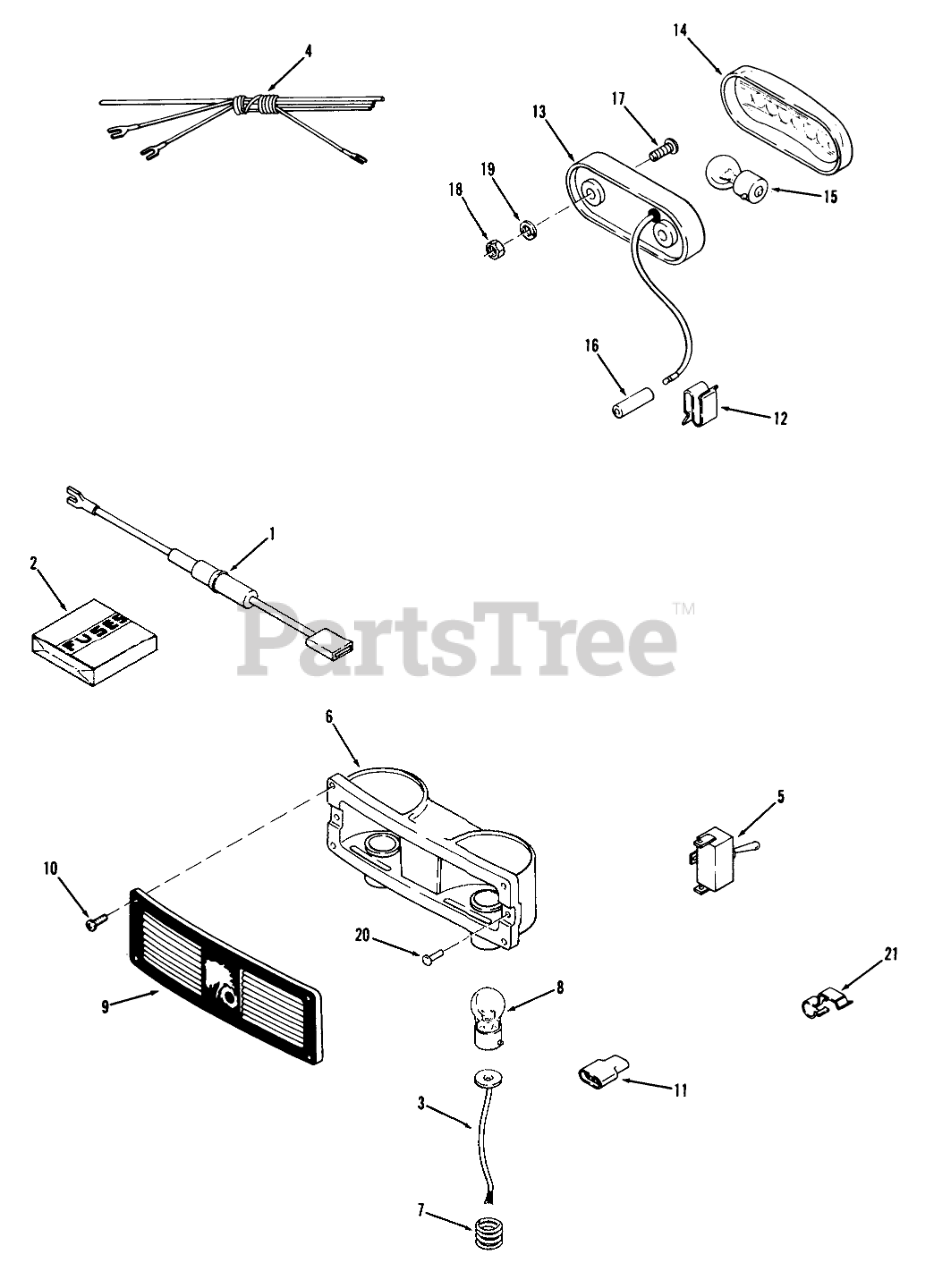

HEAD AND TAIL LIGHTS Parts Diagram

  • Title
1

Toro 101846

ASSY FUSED CONNECTOR

$

$

Not available

2

$3.49

$

Usually ships in 3-6 days

0

3

Toro 7226

WIRE ASSY

$

$

Not available

4

Toro 103137

Wire Harness-Lights

$

$

Not available

5

Toro 102138

SWITCH-LIGHTS

$40.99

$

Usually ships in 3-6 days

0

6

Toro 7223

ASSY REFLECTOR HOUSI

$

$

Not available

7

Toro 7227

SPRING

$

$

Not available

8

Toro 7228

BULB

$24.99

$

Usually ships in 3-6 days

0

9

Toro 103771

Lens
(Superseded to 98-1713)

$91.99

$

In Stock, only 2 left!

0

10

Toro 7229

Pan HD Swage
(Superseded to 88-2120)

$

$

Not available

11

Toro 7618

CONNECTOR 3 WIRE

$

$

Not available

12

Toro 3023

SPEED CLIP

$

$

Not available

13

Toro 102883

Base-Taillight
(Superseded to 105202)

$

$

Not available

14

Toro 102884

Lens-Taillight
(Superseded to 112564)

$9.99

$

In Stock, Qty 5

0

15

Toro 8043

Bulb

$

$

Currently unavailable

16

Toro 6922

CONNECTOR 2 WIRE

$

$

Not available

17

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

18

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

19

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

20

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

21

Toro 8519

CLIP-WIRE

$

$

Not available
