71-16KS01 (C-160) - Toro Lawn Tractor (1977) LIFT LINKAGE Parts Diagram

Lawn Tractor

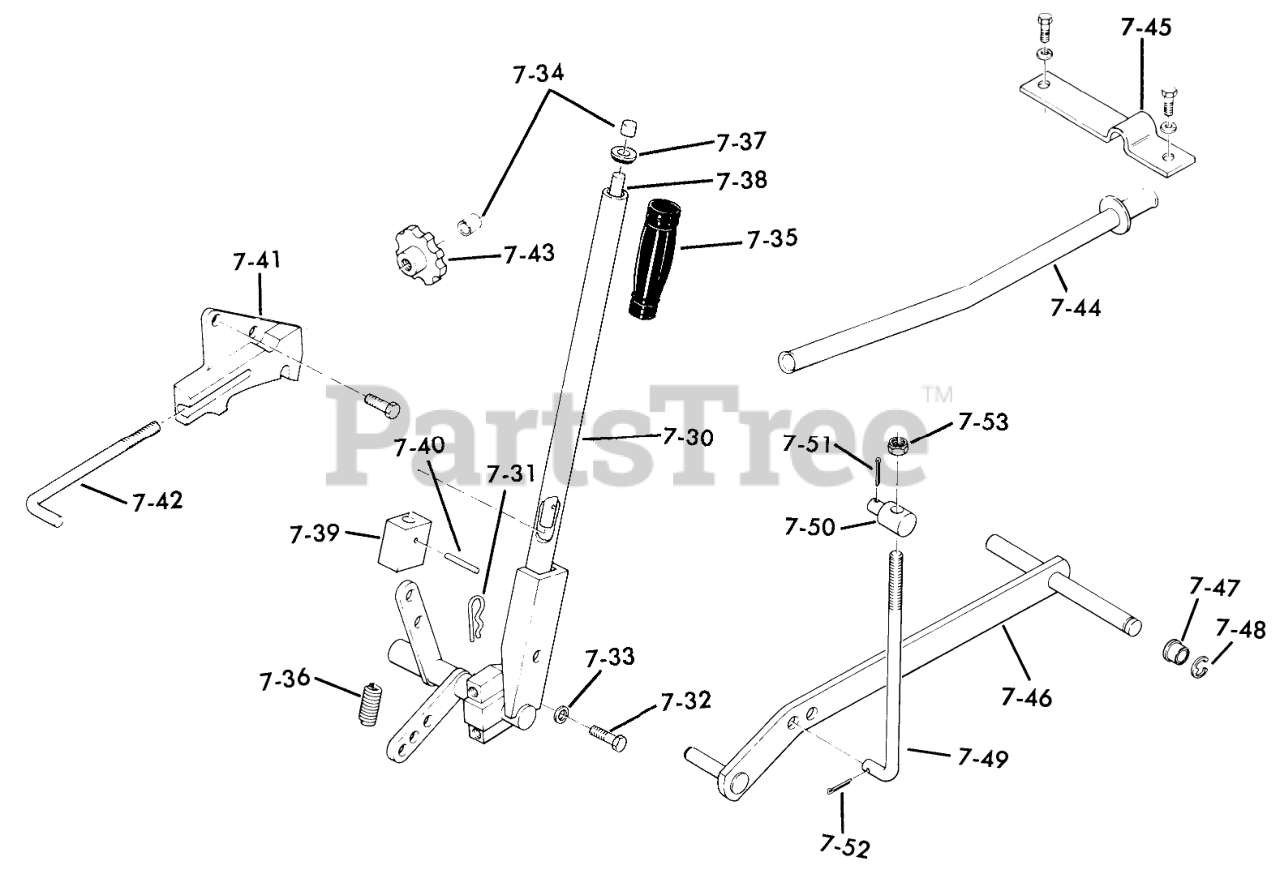

LIFT LINKAGE Parts Diagram

  • Title
7-30

Toro 5448

Lift Lever

Note: C-120 ONLY

$

$

Not available

7-31

Toro 933506

Hairpin
(Superseded to 9335064)

Note: C-120 ONLY

$2.49

$

In Stock, Qty 11

0

7-32

Toro 908015

H H C S
(Superseded to 322-1)

Note: C-120 ONLY

$0.99

$

In Stock, Qty 9

0

7-33

Toro 920082

Lockwasher
(Superseded to 325-34)

Note: C-120 ONLY

$3.99

$

In Stock, only 2 left!

0

7-34

Toro 105316

CAP-ROD, PLUNGER

Note: C-120 ONLY

$1.49

$

In Stock, Qty 20+

0

7-35

Toro 6542

HANDGRIP

Note: C-120 ONLY

$16.99

$

Usually ships in 3-6 days

0

7-36

Toro 3624

SPRING-COMPRESSION

Note: C-120 ONLY

$4.99

$

Usually ships in 3-6 days

0

7-37

Toro 3578

Guide-Rod

Note: C-120 ONLY

$

$

Not available

7-38

Toro 5449

PLUNGER ROD

Note: C-120 ONLY

$

$

Not available

7-39

Toro 4438

LOWER PLUNGER R

Note: C-120 ONLY

$

$

Not available

7-40

Toro 933168

Roll Pin
(Superseded to 32121-114)

Note: C-120 ONLY

$2.49

$

Usually ships in 3-6 days

0

7-41

Toro 5640

Quadrant

Note: C-120 ONLY

$

$

Not available

7-41

Toro 926715

Bolt
(Superseded to 9267154)

Note: C-120 ONLY

$3.49

$

In Stock, Qty 6

0

7-42

Toro 2179

ROD-LIFT CONTROL

Note: C-120 ONLY

$

$

Not available

7-43

Toro 5280

KNOB-LIFT CONTROL

Note: C-120 ONLY

$31.99

$

Usually ships in 3-6 days

0

7-44

Toro 105530

Clamp-Conduit

$

$

Not available

7-45

Toro 105528

Clamp-Tube
(Superseded to 108903-01)

$16.99

$

Usually ships in 3-6 days

0

7-46

Toro 102373

ASSY LIFT BAR R
(Superseded to 102373-01)

$191.99

$

Usually ships in 3-6 days

0

7-47

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

7-48

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

7-49

Toro 102385

ROD-LIFT

$63.99

$

Usually ships in 3-6 days

0

7-50

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

7-51

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

7-52

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

7-53

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0
