71-16K802 (C-160) - Toro Lawn Tractor (1977) SHEET METAL & COVERS Parts Diagram

Lawn Tractor

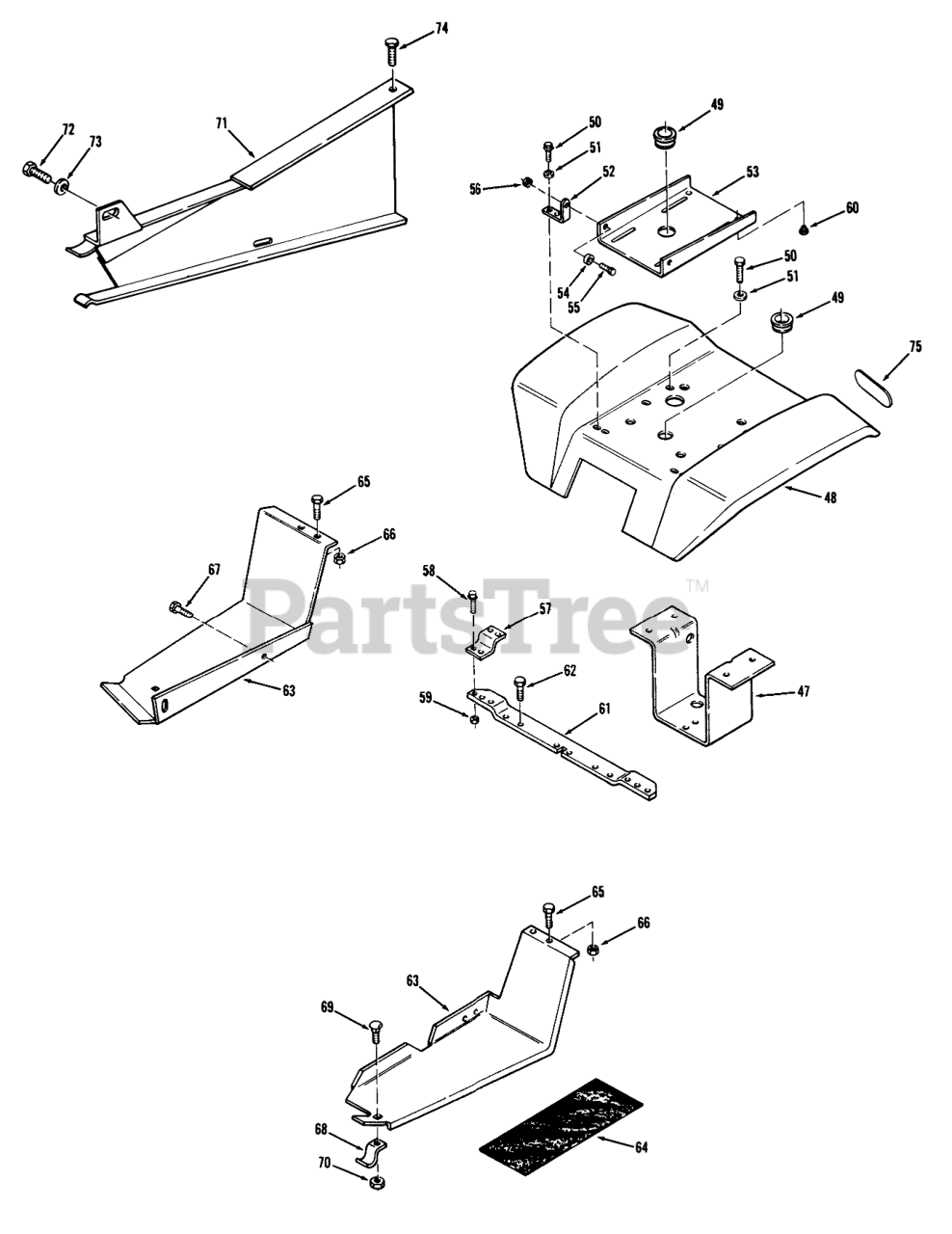

SHEET METAL & COVERS Parts Diagram

  • Title
47

Toro 105527

Bracket-Fender

$

$

Not available

48

Toro 105444

Fender

$

$

Not available

49

Toro 938030

Bushing

$

$

Not available

50

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

51

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

52

Toro 105524

BRACKET-PIVOT

$

$

Not available

53

Toro 103886

Plate Seat Pivot
(Superseded to 111714)

$

$

Not available

54

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

55

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

56

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

57

Toro 105531

BRACKET-FENDER R

$

$

Not available

58

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

59

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

60

Toro 103887

BUMPER-RUBBER

$4.49

$

In Stock, only 3 left!

0

61

Toro 105486

Bracket-Footrest

$

$

Not available

62

Toro 926694

SCREW

$

$

Not available

63

Toro 103372

Footrest-RH

$

$

Not available

63

Toro 105843

Footrest-LH

$

$

Not available

64

Toro 105201

PAD-FOOTREST

$

$

Not available

65

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

66

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

67

Toro 960175

Screw

$

$

Not available

68

Toro 7456

BRACKET

$

$

Not available

69

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 18

0

70

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

71

Toro 105391

Belt Guard Assy

$

$

Not available

72

Toro 908046

H H C S
(Superseded to 324-4)

$3.99

$

Usually ships in 3-6 days

0

73

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0

74

Toro 960175

Screw

$

$

Not available

75

Toro 104737

Reflector
(Superseded to 106557)

$

$

Not available

72

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

73

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0
