71-16K802 (C-160) - Toro Lawn Tractor (1977) MECHANICAL TRANSMISSION-8 SPEED Parts Diagram

Lawn Tractor

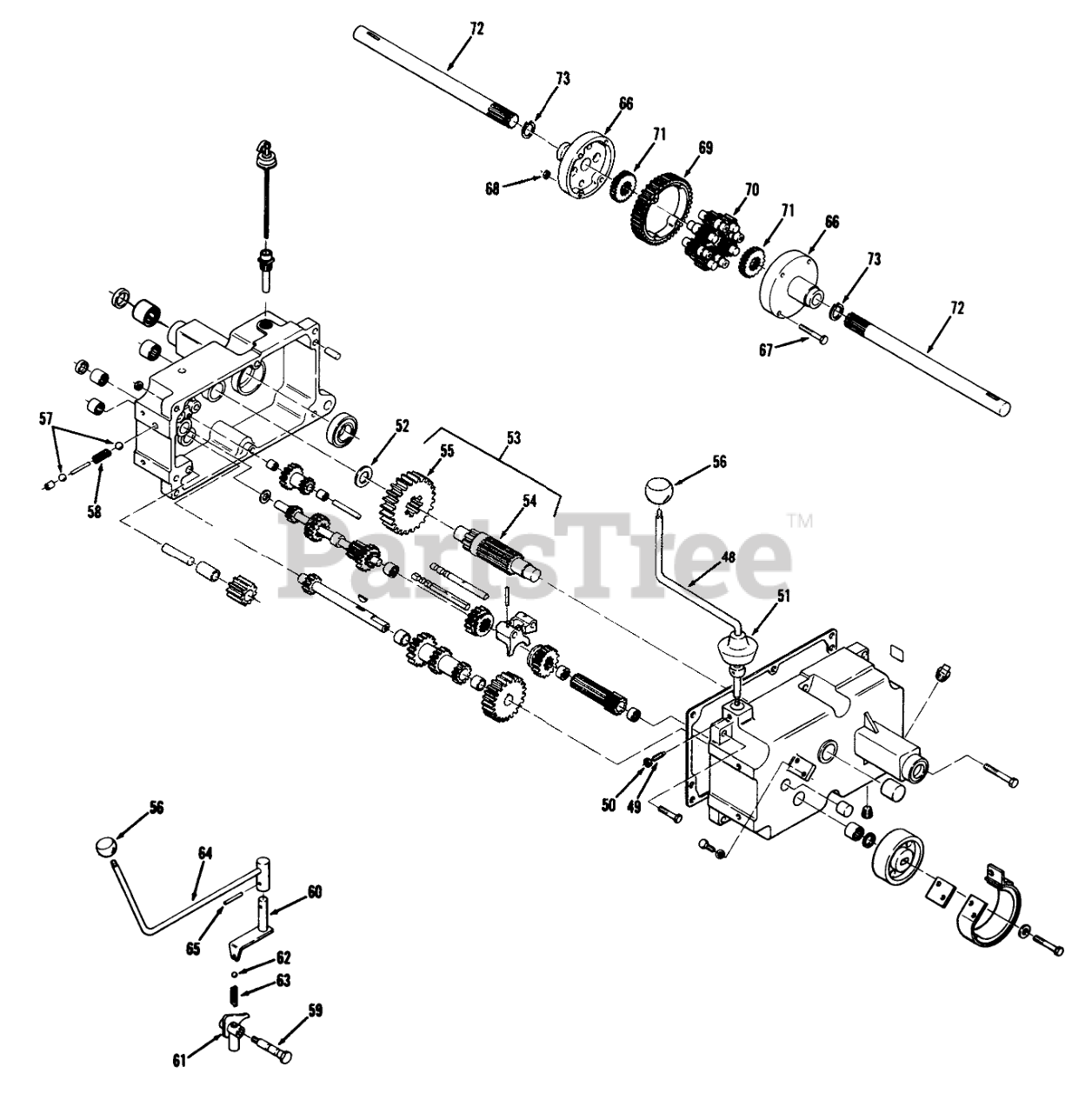

MECHANICAL TRANSMISSION-8 SPEED Parts Diagram

  • Title

48

Toro 105515

Shift Stick & Collar
(Superseded to 95-7684)

$200.99

$

In Stock, only 1 left!

0

49

Toro 1239

SETSCREW

$10.99

$

In Stock, Qty 7

0

50

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

51

Toro 3577

COVER-DUST

$

$

Not available

52

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

53

Toro 102974

GEAR ASM

$

$

Not available

54

Toro 101625

PINION SHAFT

$

$

Not available

55

Toro 101626

GEAR

$

$

Not available

56

Toro 102871

SHIFT KNOB

$

$

Not available

57

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 5

0

58

Toro 3518

Spring
(Superseded to 106030)

$2.99

$

In Stock, only 3 left!

0

59

Toro 7213

BOLT-DETENT

$54.99

$

Usually ships in 3-6 days

0

60

Toro 7214

SHIFT ASM

$46.99

$

Usually ships in 3-6 days

0

61

Toro 7209

Shift Fork
(Superseded to 116636-03)

$

$

Not available

62

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 5

0

63

Toro 3518

Spring
(Superseded to 106030)

$2.99

$

In Stock, only 3 left!

0

64

Toro 104063

Handle-Shift
(Superseded to 110727)

$93.99

$

Usually ships in 3-6 days

0

65

Toro 933184

PIN-SPIROL

$1.49

$

In Stock, Qty 8

0

66

Toro 105060

DIFFERENTIAL END CAP

$256.99

$

Usually ships in 3-6 days

0

67

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, only 1 left!

0

68

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

69

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1209.99

$

Usually ships in 3-6 days

0

70

Toro 101623

GEAR-PINION, 11T

$116.99

$

Usually ships in 3-6 days

0

71

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

72

Toro 105875

AXLE-REAR

$411.99

$

Usually ships in 3-6 days

0

73

Toro 105876

RING-SNAP

$5.99

$

In Stock, only 2 left!

0
