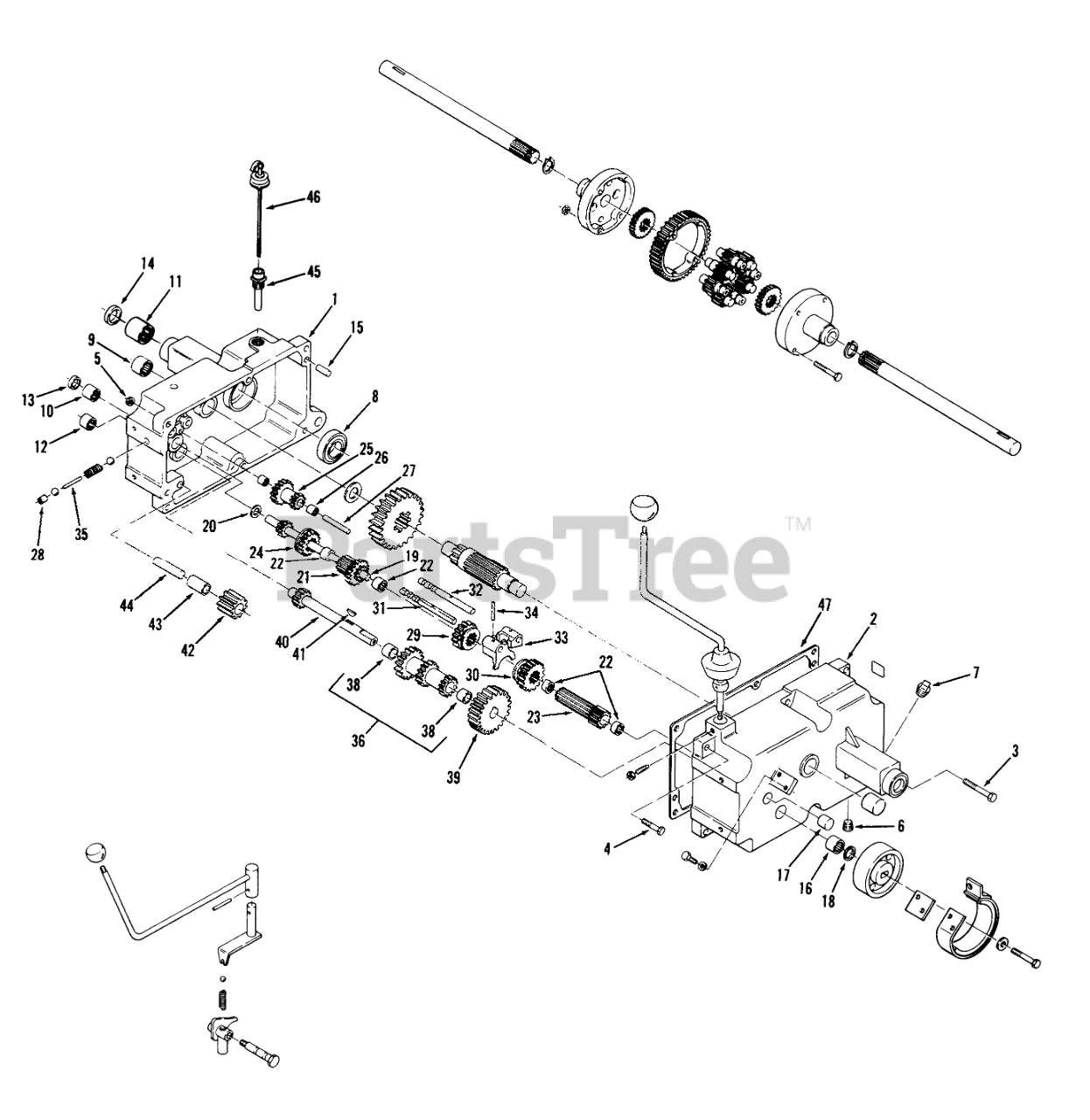

71-16K802 (C-160) - Toro Lawn Tractor (1977) MECHANICAL TRANSMISSION-8 SPEED Parts Diagram

Lawn Tractor

MECHANICAL TRANSMISSION-8 SPEED Parts Diagram

  • Title

Toro 103907

Trans 8 Pin Diff

$

$

Not available

1

Toro 8163

Case RH

$

$

Not available

2

Toro 6941

Case L.H.

$

$

Not available

3

Toro 908043

HHCS
(Superseded to 323-15)

$1.99

$

In Stock, only 4 left!

0

4

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

5

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

6

Toro 943460

PLUG 1/4 PIPE ALLEN
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

7

Toro 943420

Plug
(Superseded to 281-2)

$2.99

$

Usually ships in 3-6 days

0

8

Toro 1533

BALL BRG 1 1/2 I.D.

$

$

Not available

9

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

10

Toro 1542

BEARING-NEEDLE

$43.99

$

In Stock, only 2 left!

0

11

Toro 105912

Bearing-Axle
(Superseded to 9416)

$81.99

$

Usually ships in 3-6 days

0

12

Toro 1529

BEARING-NEEDLE

$50.99

$

Usually ships in 3-6 days

0

13

Toro 100442

SEAL-OIL

$7.49

$

In Stock, Qty 6

0

14

Toro 100443

SEAL-OIL

$14.99

$

Usually ships in 3-6 days

0

15

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

16

Toro 1523

BEARING-NEEDLE

$42.99

$

Usually ships in 3-6 days

0

17

Toro 1531

Bearing Needle

$

$

Not available

18

Toro 100441

SEAL-OIL

$9.99

$

In Stock, only 1 left!

0

19

Toro 7201

SHAFT-INPUT

$

$

Not available

20

Toro 7418

WASHER-THR

$7.49

$

In Stock, only 4 left!

0

21

Toro 7204

GEAR

$

$

Not available

22

Toro 1518

BEARING-NEEDLE

$31.99

$

Usually ships in 3-6 days

0

23

Toro 5175

GEAR

$

$

Not available

24

Toro 7205

GEAR-SLIDING

$

$

Not available

25

Toro 7206

Gear
(Superseded to 100-1338)

$318.99

$

Usually ships in 3-6 days

0

26

Toro 7207

BEARING-NEEDLE

$34.99

$

Usually ships in 3-6 days

0

27

Toro 7208

GEAR-SHAFT REDUCTION

$11.99

$

In Stock, only 2 left!

0

28

Toro 1243

CUP-PLUG

$5.99

$

In Stock, Qty 10

0

29

Toro 5173

GEAR-HI AND 2ND

$149.99

$

Usually ships in 3-6 days

0

30

Toro 5174

GEAR-LOW AND REVERSE

$

$

Not available

31

Toro 5615

RAIL-SHIFT

$117.99

$

Usually ships in 3-6 days

0

32

Toro 5616

RAIL-REAR SHIFT

$90.99

$

Usually ships in 3-6 days

0

33

Toro 3503

FORK-SHIFT

$139.99

$

Usually ships in 3-6 days

0

34

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

35

Toro 5614

PIN-SHIFT

$

$

Not available

36

Toro 7269

GEAR-CLUSTER

$

$

Not available

38

Toro 1504

BUSHING-BRONZE

$50.99

$

Usually ships in 3-6 days

0

39

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

40

Toro 9840

Cluster Shaft
(Superseded to 704156)

$

$

Not available

41

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 5

0

42

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$165.99

$

Usually ships in 3-6 days

0

43

Toro 1516

BUSHING

$14.99

$

Usually ships in 3-6 days

0

44

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

45

Toro 102703

NIPPLE-FILL, TRANSMISSION

$

$

Not available

46

Toro 101847

Dipstick
(Superseded to 101847-03)

$

$

Not available

47

Toro 3912

GASKET-TRANSMISSION

$10.99

$

In Stock, only 2 left!

0
