71-12KS02 (C-120) - Toro Lawn Tractor (1977) FUEL AND EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

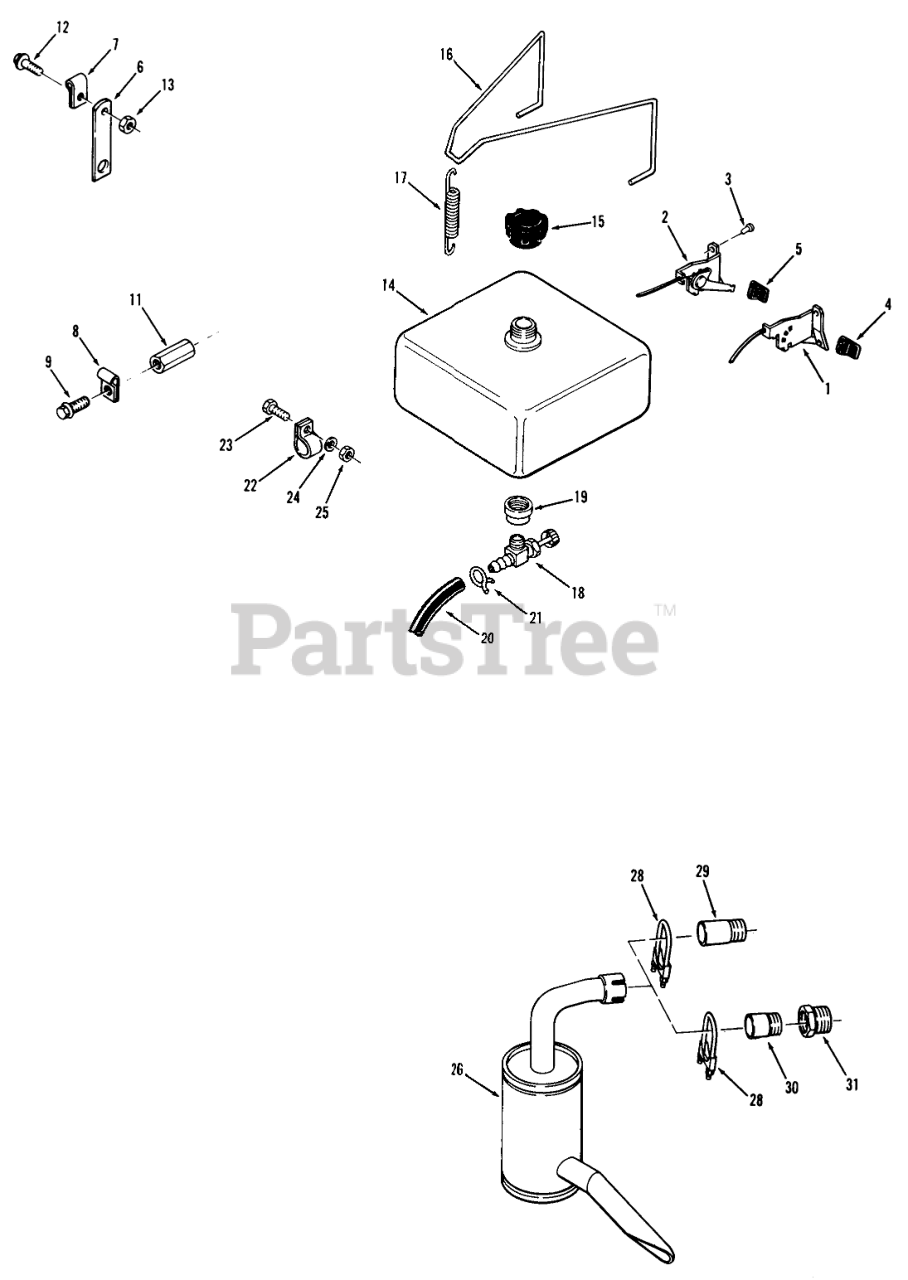

FUEL AND EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 101837

Choke Control
(Superseded to 106752)

$

$

Not available

2

Toro 101834

THROTTLE CONTROL

$142.99

$

In Stock, only 1 left!

0

3

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

4

Toro 102186

KNOB-CHOKE

$18.99

$

In Stock, Qty 7

0

5

Toro 102185

KNOB-THROTTLE

$18.99

$

Usually ships in 3-6 days

0

6

Toro 100452

Strap

$

$

Not available

7

Toro 100729

THROTTLE CONTROL CLP

$6.99

$

Usually ships in 3-6 days

0

8

Toro 2879

Clip
(Superseded to 7922)

$3.99

$

Usually ships in 3-6 days

0

9

Toro 960150

Screw
(Superseded to 3234-26)

$3.49

$

In Stock, Qty 15

0

11

Toro 5431

Special Nut

$

$

Not available

12

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

13

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

14

Toro 104065

ASSY-FUEL TANK

$

$

Not available

15

Toro 102321

Cap
(Superseded to 108011)

$61.99

$

In Stock, only 1 left!

0

16

Toro 100427

HOLD DOWN WIRE

$10.99

$

In Stock, only 1 left!

0

17

Toro 6949

CLUTCH SPRING

$

$

Not available

18

Toro 104048

VALVE-FUEL

$36.99

$

In Stock, Qty 9

0

19

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

20

Toro 6554

Fuel Line

$

$

Not available

21

Toro 950154

Clamp

$

$

Not available

22

Toro 101861

CLAMP-HOSE

$

$

Not available

23

Toro 908020

Bolt
(Superseded to 322-6)

$4.49

$

In Stock, Qty 20+

0

24

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

25

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

26

Toro 105915

Muffler
(Superseded to 106918)

$

$

Not available

28

Toro 102645

ASSY-MUFFLER CLAMP

$15.99

$

In Stock, only 1 left!

0

30

Toro 105913

NIPPLE- 1X2 SPECIAL

$

$

Not available

31

Toro 943151

REDUCER 1 1/4-1

$

$

Not available

29

Toro 102265

NIPPLE

$

$

Not available
