71-12KS02 (C-120) - Toro Lawn Tractor (1977) BRAKE/CLUTCH AND SPEED CONTROL LINKAGE Parts Diagram

Lawn Tractor

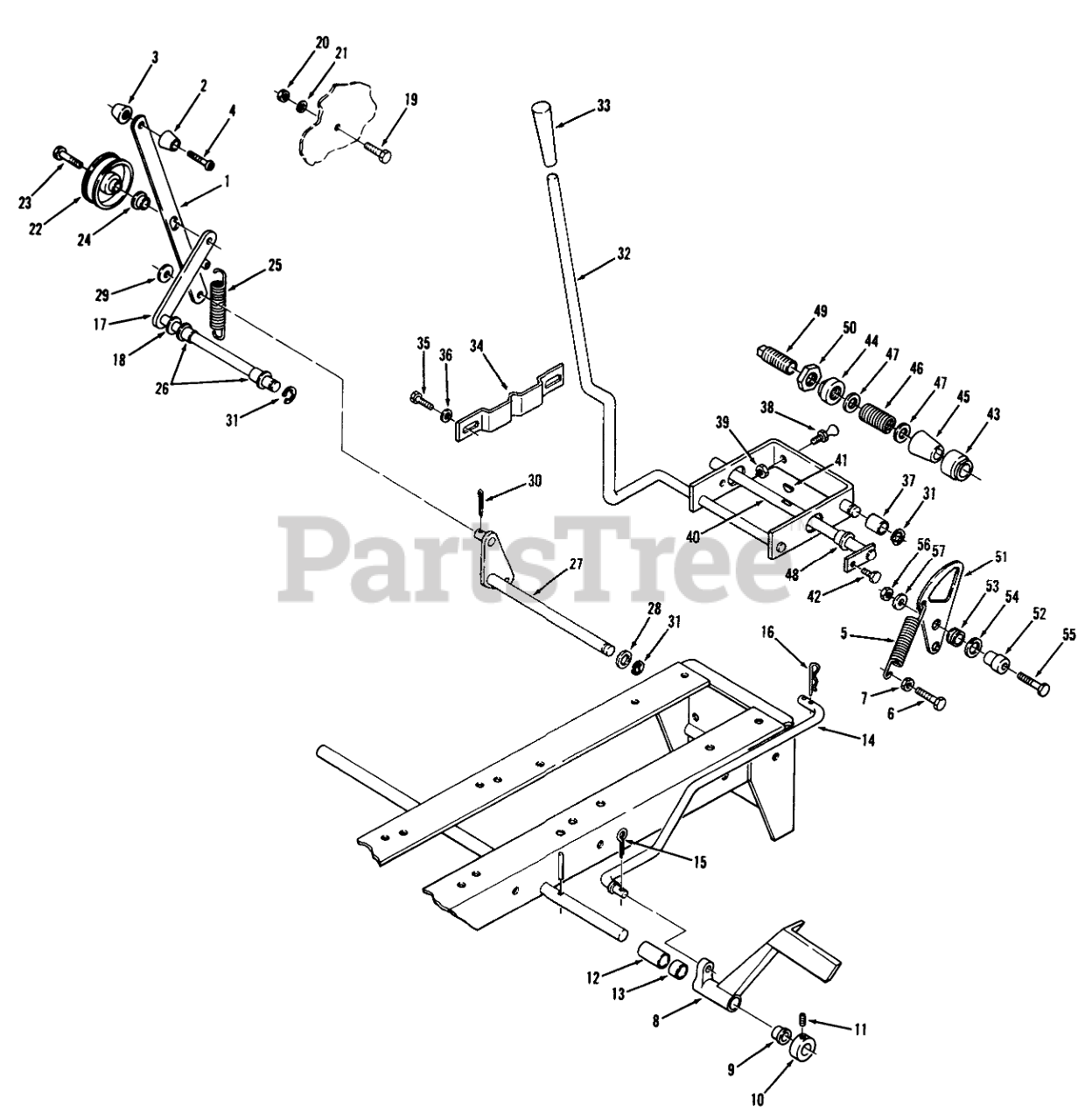

BRAKE/CLUTCH AND SPEED CONTROL LINKAGE Parts Diagram

  • Title

1

Toro 100634

HANDLE R (NS)

$

$

Not available

2

Toro 8693

KNOB

$6.99

$

In Stock, Qty 8

0

3

Toro 8722

KNOB

$21.99

$

In Stock, only 2 left!

0

4

Toro 911747

BOLT-4

$5.49

$

In Stock, Qty 9

0

5

Toro 1230

Spring

$

$

Not available

6

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

7

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

8

Toro 102747

PEDAL R

$

$

Not available

9

Toro 6254

BUSHING

$20.99

$

In Stock, only 2 left!

0

10

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

11

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

13

Toro 4064

Spacer
(Superseded to 703269)

$122.99

$

Usually ships in 3-6 days

0

14

Toro 6113

Gasket

$

$

Not available

15

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 933503

USE 933503P PIN

$5.99

$

Usually ships in 3-6 days

0

17

Toro 6130

Idler Arm

$

$

Not available

18

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

19

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

20

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

21

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

22

Toro 7434

Idler Pulley
(Superseded to 112426)

$26.99

$

In Stock, only 3 left!

0

23

Toro 911404

HEX HD CAP SCREW

$0.99

$

In Stock, Qty 7

0

24

Toro 7435

SPACER-BRAKE LINK

$

$

Not available

25

Toro 9170

SPRING-EXTENSION

$

$

Not available

26

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

27

Toro 7474

ever Brake

$

$

Not available

28

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

29

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

30

Toro 932001

Cotter Pin
(Superseded to 327-22)

$13.99

$

Usually ships in 3-6 days

0

31

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

32

Toro 103891

Cam Control

$

$

Not available

33

Toro 6129

KNOB

$12.99

$

Usually ships in 3-6 days

0

34

Toro 103996

SPRING-DETENT

$

$

Not available

35

Toro 926694

SCREW

$

$

Not available

36

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

37

Toro 100656

BEARING-CAM RETURN

$6.49

$

In Stock, Qty 5

0

38

Toro 6127

PIN

$

$

Not available

39

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

40

Toro 7604

Cam Pivot Rod
(Superseded to 741211)

$253.99

$

Usually ships in 3-6 days

0

41

Toro 937007

WOODRUFF KEY

$

$

Not available

42

Toro 926694

SCREW

$

$

Not available

43

Toro 7599

FRICTION COLLAR

$

$

Not available

44

Toro 7601

COLLAR BRKT PIVOT

$

$

Not available

45

Toro 7600

FRICTION CONE

$

$

Not available

46

Toro 7602

SPRING FRICTION

$

$

Not available

47

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

48

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

49

Toro 7603

Collar Friction

$

$

Not available

50

Toro 915241

NUT

$1.99

$

Usually ships in 3-6 days

0

51

Toro 6142

Cam Plate

$

$

Not available

52

Toro 6143

Spacer

$

$

Not available

53

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 12

0

54

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

55

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

56

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

57

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

12

Toro 979207

SPACER

$

$

Not available
