71-12K801 (C-120) - Toro Lawn Tractor (1977) ELECTRICAL SYSTEM (B-60 ONLY) Parts Diagram

Lawn Tractor

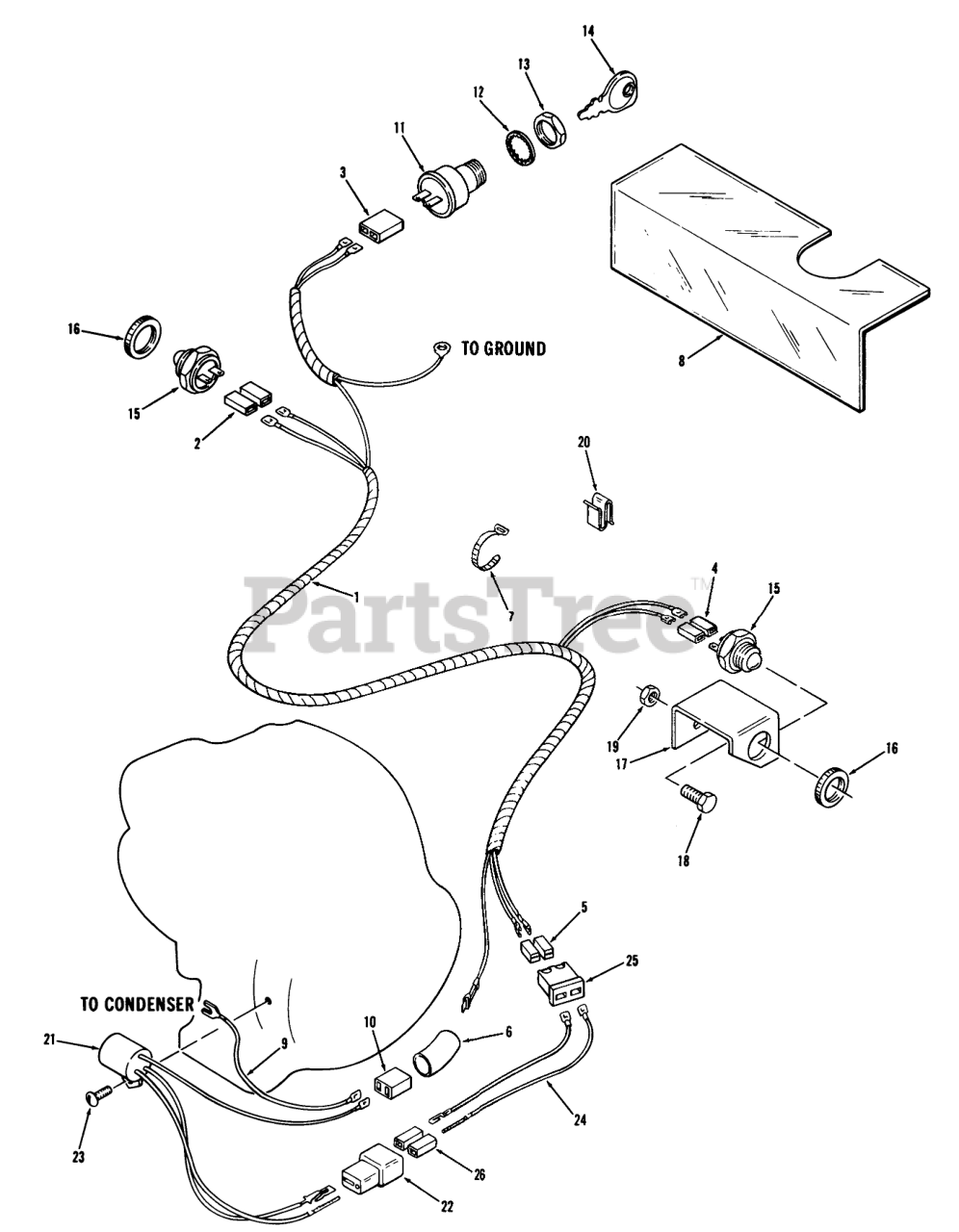

ELECTRICAL SYSTEM (B-60 ONLY) Parts Diagram

  • Title

1

Toro 104715

Wiring Harness

$

$

Not available

2

Toro 106040

Connector Housing Int Sw
(Superseded to 104926)

$4.49

$

In Stock, only 2 left!

0

3

Toro 106039

Conn. Body-Part of 2

$

$

Not available

4

Toro 106040

Connector Housing Int Sw
(Superseded to 104926)

$4.49

$

In Stock, only 2 left!

0

5

Toro 103037

Connector Housing F

$

$

Currently unavailable

6

Toro 106038

Rubber Sleeve

$

$

Currently unavailable

7

Toro 100571

PLASTIC TIE

$

$

Not available

8

Toro 101446

CONTROL PROTECTOR

$

$

Not available

9

Toro 104717

Assy-Wire

$

$

Not available

10

Toro 106034

Rubber Sleeve

$

$

Currently unavailable

11

Toro 102820

SWITCH

$

$

Not available

12

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

13

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

14

Toro 102801

KEY SWITCH

$

$

Not available

15

Toro 105877

SWITCH-INTERLOK CLUT
(Superseded to 38-0430)

$65.99

$

Usually ships in 3-6 days

0

16

Toro 102277

NUT-SPECIAL 9/16-18

$

$

Not available

17

Toro 101827

Bracket

$

$

Not available

18

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

19

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

20

Toro 8519

CLIP-WIRE

$

$

Not available

21

Toro 104107

MODULE-INTERLOCK

$

$

Not available

22

Toro 106033

Conn. Body-Part of 15

$

$

Not available

23

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

24

Toro 105879

Wire Assy

$

$

Not available

25

Toro 106035

Connector Housing M

$

$

Not available

26

Toro 106036

Connector Body
(Superseded to 106636)

$95.99

$

In Stock, only 1 left!

0
