71-10K801 (B-100) - Toro Lawn Tractor (1977) PTO CLUTCH & CONTROLS Parts Diagram

Lawn Tractor

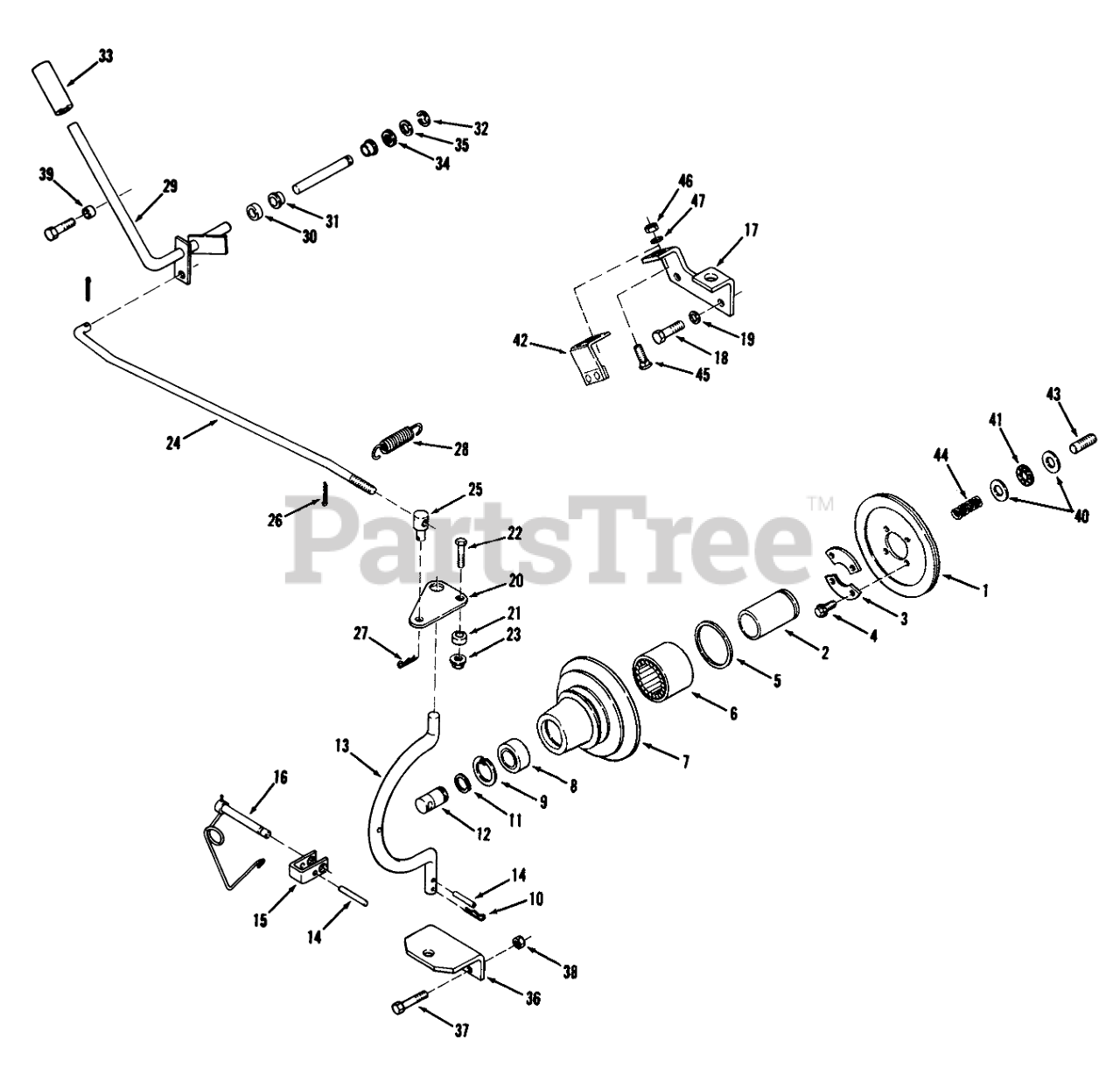

PTO CLUTCH & CONTROLS Parts Diagram

  • Title

1

Toro 103817

Clutch Plate & Facing
(Superseded to 94-6650)

$182.99

$

Usually ships in 3-6 days

0

2

Toro 6658

RACE-BEARING

$

$

Not available

3

Toro 6659

RETAINER

$19.99

$

In Stock, only 2 left!

0

4

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

5

Toro 6663

SEAL-OIL

$12.99

$

In Stock, only 1 left!

0

6

Toro 6662

Seal
(Superseded to 106769)

$60.99

$

In Stock, only 1 left!

0

7

Toro 103478

Housing-Clutch
(Superseded to 103478-03)

$

$

Not available

8

Toro 5196

Bearing
(Superseded to 109842)

$31.99

$

In Stock, only 1 left!

0

9

Toro 936032

Ring-Snap
(Superseded to 32120-62)

$4.99

$

In Stock, Qty 8

0

10

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

11

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

12

Toro 102872

SHAFT-PTO

$31.99

$

In Stock, only 1 left!

0

13

Toro 102938

ROD HOUSING (NS)

$

$

Not available

14

Toro 933267

PIN-SPIROL

$1.49

$

In Stock, Qty 11

0

15

Toro 102941

Clevis
(Superseded to 113107)

$27.99

$

In Stock, only 1 left!

0

16

Toro 105850

Pin
(Superseded to 111314)

$27.99

$

In Stock, only 1 left!

0

17

Toro 104729

BRACKET

$

$

Not available

18

Toro 908046

H H C S
(Superseded to 324-4)

$3.99

$

Usually ships in 3-6 days

0

19

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0

20

Toro 102943

PLATE R
(Superseded to 102943-01)

$

$

Not available

21

Toro 102704

SPACER

$2.99

$

In Stock, Qty 8

0

22

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

23

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

24

Toro 102937

Clutch Rod

$

$

Not available

25

Toro 101161

TRUNNION

$

$

Not available

26

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

27

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

28

Toro 1230

Spring

$

$

Not available

29

Toro 103881

Plug, Drain

$

$

Not available

30

Toro 102964

SPACER

$

$

Not available

31

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

32

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

33

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

34

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

35

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

36

Toro 102870

Axle
(Superseded to 102870-01)

$34.99

$

Usually ships in 3-6 days

0

37

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

38

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

39

Toro 9690

Spacer

$

$

Not available

41

Toro 9862

THRUST BEARING

$

$

Not available

42

Toro 104730

PTO Plate
(Superseded to 94-6652)

$45.99

$

In Stock, only 2 left!

0

43

Toro 104842

STUD 7/16

$

$

Not available

44

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

45

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

46

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

47

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

40

Toro 7947

RACE THRUST

$7.99

$

Usually ships in 3-6 days

0

2

Toro 6935

BEARING RACE

$

$

Not available

17

Toro 104732

BRACKET-ENGINE B

$

$

Not available

18

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

19

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

44

Toro 105031

SPRING-COMPRESSION

$

$

Not available
