7085922 - Simplicity Walk-Behind Mower Mower Deck Group Parts Diagram

Walk-Behind Mower

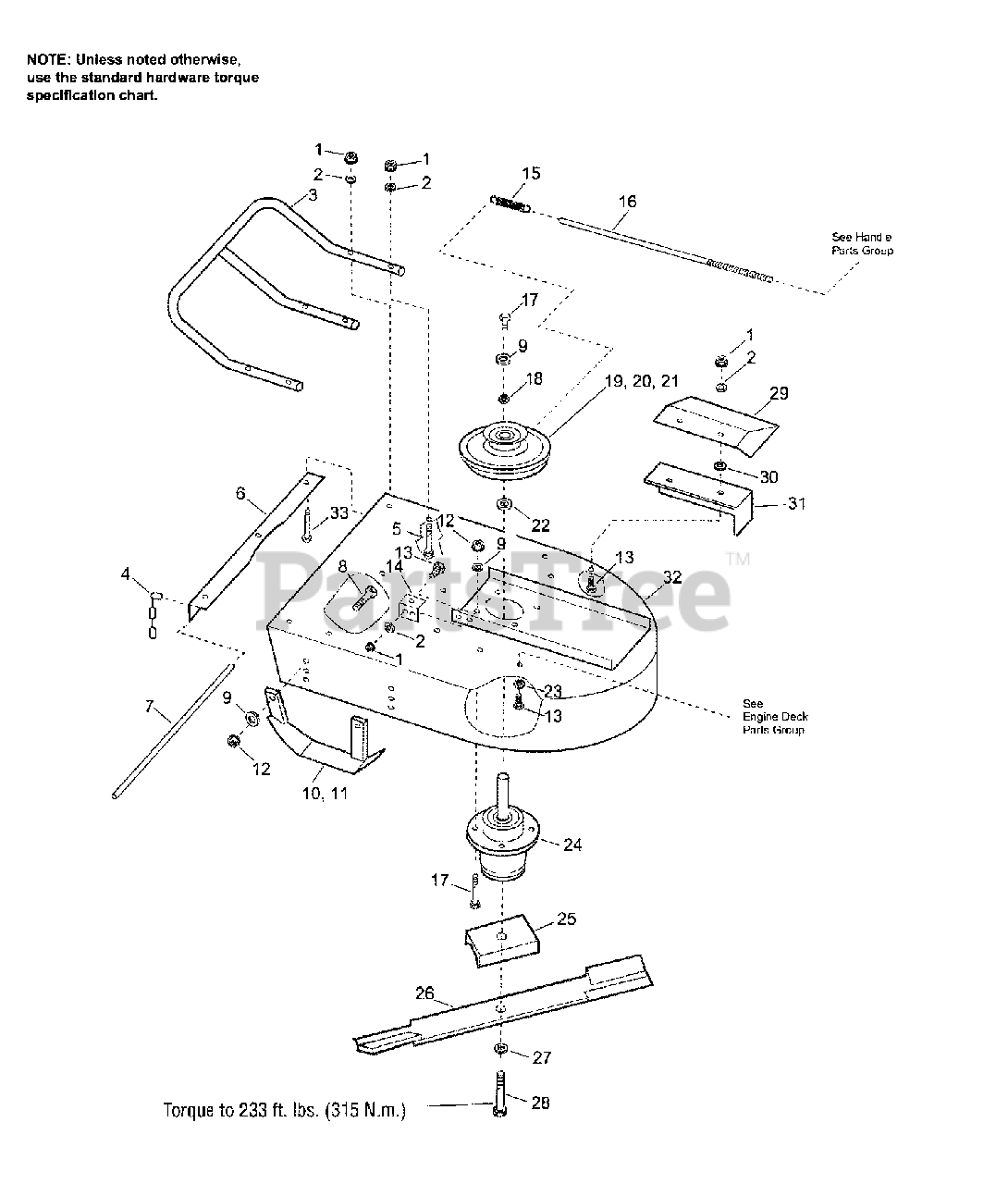

Mower Deck Group Parts Diagram

  • Title

1

Simplicity 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1723532

WELDMENT, Front Bumper
(Superseded to 1723532SM)

$

$

Not available

4

Simplicity 1723533

CHAIN CURTAIN
(Superseded to 1723533SM)

$2.99

$

Usually ships in 2-12 days

0

5

Simplicity 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703906)

Note: for bumper rear holes

$4.99

$

In Stock, only 4 left!

0

6

Simplicity 1723534

BRACKET, Chain Curtain
(Superseded to 1723534SM)

$55.99

$

Usually ships in 2-12 days

0

7

Simplicity 1723535

ROD, Chain Curtain Mounting
(Superseded to 1723535SM)

$12.99

$

Usually ships in 2-12 days

0

8

Simplicity 7091304

SCREW, 3/8-16 x 1 Hex Head Cap, GR 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

9

Simplicity 7091320

WASHER, .38 x .68 x .09 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

10

Simplicity 1723536

LEFT SKID, Blade Deck (weldment)
(Superseded to 1723536SM)

Note: not shown

$237.99

$

Usually ships in 2-12 days

0

11

Simplicity 1723537

RIGHT SKID, Blade Deck (weldment)
(Superseded to 1723537SM)

$237.99

$

In Stock, only 1 left!

0

12

Simplicity 7091302

NUT, 3/8-16 Hex, GR 5 or B
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

14

Simplicity 1723538

BRACKET, Anti-Torque
(Superseded to 1723538SM)

$13.99

$

Usually ships in 2-12 days

0

15

Simplicity 1723657

SPRING, Clutch
(Superseded to 1723657SM)

$11.99

$

Usually ships in 2-12 days

0

16

Simplicity 1723539

ROD, Blade Clutch Engagement (5/16-18 threaded)
(Superseded to 1723539SM)

$11.99

$

Usually ships in 2-12 days

0

17

Simplicity 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

18

WASHER, 7/16 I.D. x 1-1/2" Flat (Heavy Duty)

Note: this fastener is furnished with the clutch

$

$

Not available

19

Simplicity 1723540

ASSEMBLY, Clutch Brake
(Superseded to 1723540SM)

Note: (Noram part no. CB84S)

$530.99

$

Usually ships in 2-12 days

0

20

SCREW, 5/16-18 x 1" Hex Head Cap

Note: this fastener is furnished with the clutch

$

$

Not available

21

NUT, 5/16-18 Hex Center Lock

Note: this fastener is furnished with the clutch

$

$

Not available

22

Simplicity 1723541

SPACER, Clutch
(Superseded to 1723541SM)

$

$

Not available

23

Simplicity 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1723542

ASSEMBLY, Blade Spindle
(Superseded to 1723542SM)

$

$

Not available

25

Simplicity 1723543

CHANNEL, Cutting Blade Reinforcement
(Superseded to 1723543SM)

$

$

Not available

26

Simplicity 1723544

CUTTING BLADE
(Superseded to 1723544BZYP)

$39.99

$

In Stock, only 2 left!

0

27

Simplicity 7090333

WASHER, 5/8" Split Lock
(Superseded to 7090333YP)

$3.99

$

In Stock, only 1 left!

0

28

Simplicity 1725227

CAPSCREW, 5/8-11 x 1-1/2" Socket
(Superseded to 1725227SM)

$

$

Not available

29

Simplicity 1723546

DELFECTOR, Discharge (weldment)
(Superseded to 1723546SM)

$176.99

$

Usually ships in 2-12 days

0

30

Simplicity 7090188

WASHER, 5/16" SAE Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

31

Simplicity 1723547

COVER, Discharge (weldment)
(Superseded to 1723547SM)

$75.99

$

Usually ships in 2-12 days

0

32

Simplicity 1723548

BLADE DECK
(Superseded to 1723548SM)

$

$

Not available

33

Simplicity 7091908

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5
(Superseded to 7091908YP)

Note: for bumper front holes

$4.99

$

Usually ships in 2-12 days

0
