7082809 - Snapper 44" Snow Thrower Attachment Mounting Assembly & Lift Components Parts Diagram

44" Snow Thrower Attachment

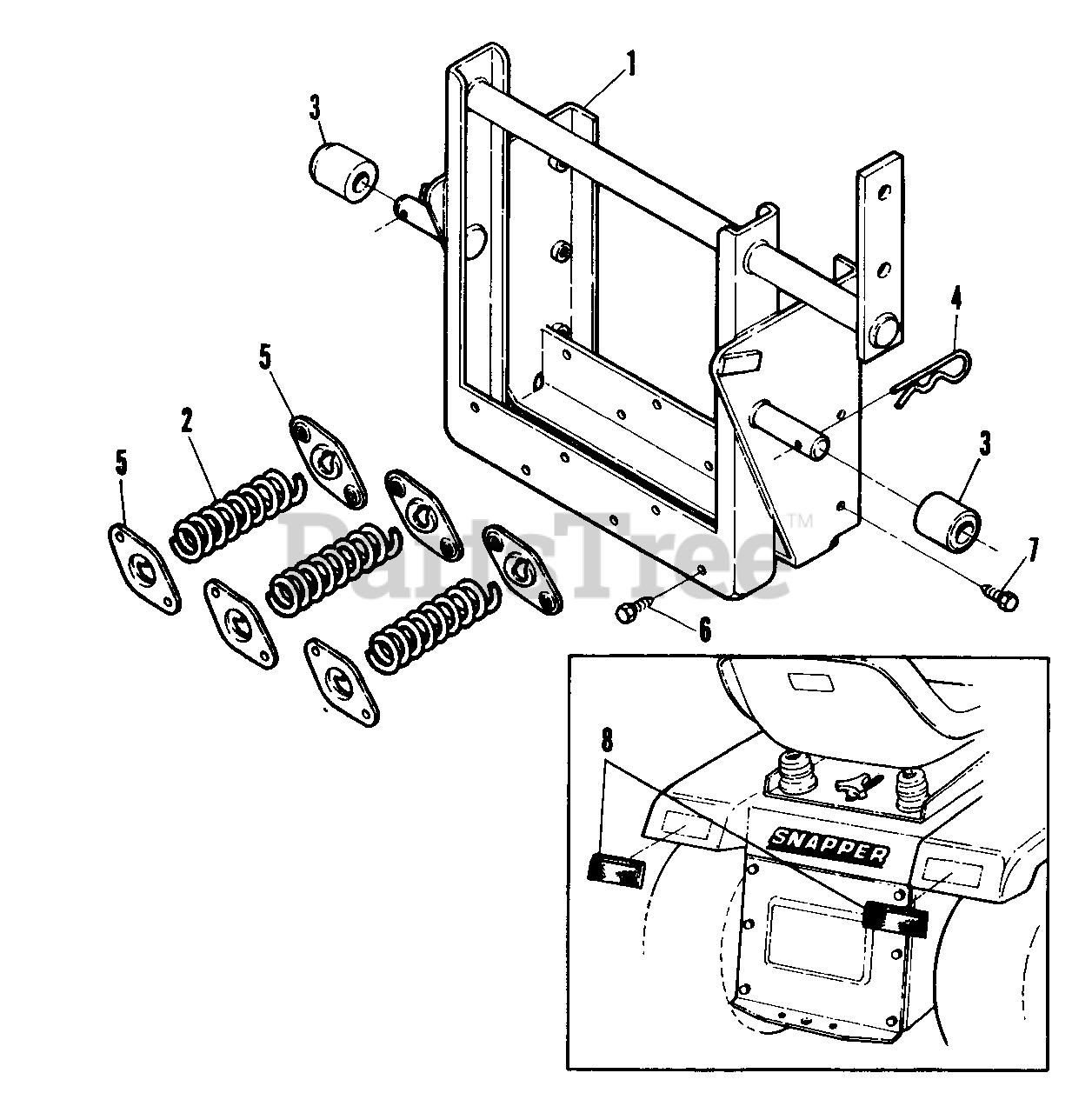

Mounting Assembly & Lift Components Parts Diagram

  • Title

1

Snapper 7049777

STRUCTURE, Lift Yoke

$

$

Currently unavailable

2

Snapper 7023213

SPRING

$

$

Not available

3

Snapper 7021988

BUSHING, Hitch
(Superseded to 7021988YP)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper 7091596

PIN, Cotter - Hair
(Superseded to 7091596YP)

Note: Was 13844

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7038392

RETAINER, Spring
(Superseded to 7038392YP)

$39.99

$

Usually ships in 2-12 days

0

6

Snapper 7091122

SCREW, 1/4 - 20 x 1/2 Self Tap
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 7

0

7

Snapper 7091541

SCREW, 5/16 - 18 x 3/4 Self Tap
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7023682

REFLECTOR
(Superseded to 1701600SM)

Note: (Mounted on Rear Fenders of Tractor)

$11.99

$

Usually ships in 2-12 days

0
