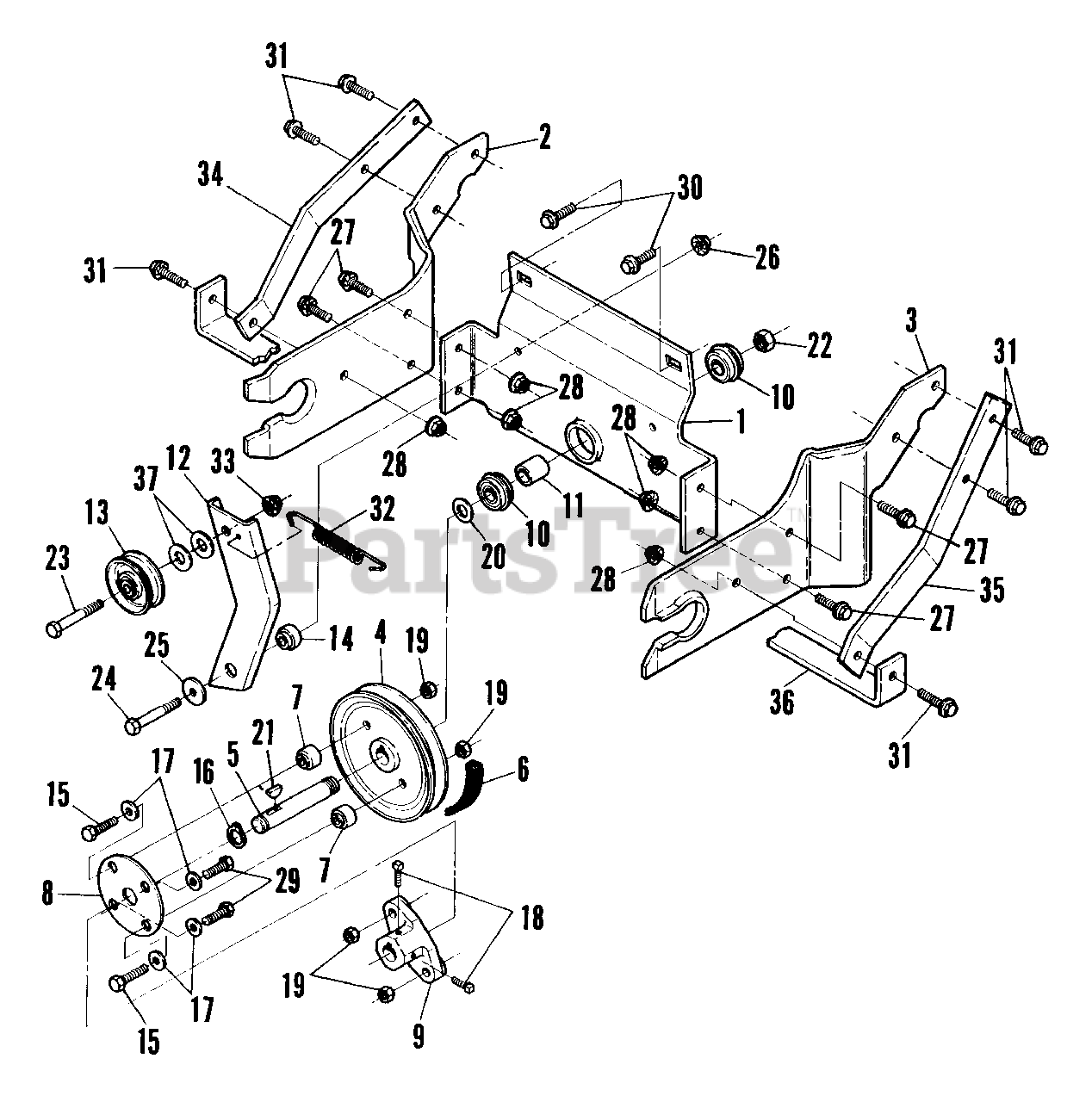

7082809 - Snapper 44" Snow Thrower Attachment Mounting Assembly & Drive Parts Diagram

44" Snow Thrower Attachment

Mounting Assembly & Drive Parts Diagram

  • Title

1

Snapper 7049771

WELDMENT, Hitch & Bearing

$

$

Not available

2

Snapper 7049775

HITCH, Right Hand

$

$

Currently unavailable

3

Snapper 7049776

HITCH, Left Hand

$

$

Not available

4

Snapper 7018837

PULLEY, 5.25" O.D.
(Superseded to 7018837YP)

$62.99

$

Usually ships in 2-12 days

0

5

Snapper 7021986

SHAFT, Pulley
(Superseded to 7021986YP)

$70.99

$

Usually ships in 2-12 days

0

6

Snapper 7023283

BELT, Eng./Head 42.5
(Superseded to 7023283YP)

$35.99

$

Usually ships in 2-12 days

0

7

Snapper 7014803

SPACER, Flex-Coupling .376 x .81 x .563
(Superseded to 7014803YP)

$45.99

$

In Stock, only 1 left!

0

8

Snapper 7014718

DISC, Flex-Coupling

$

$

Not available

9

Snapper 7018626

HUB, Flex-Coupling
(Superseded to 7018626YP)

$317.99

$

Usually ships in 2-12 days

0

10

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

11

Snapper 7021926

SPACER, .62 x .88 x .91

$

$

Not available

12

Snapper 7032733

ARM, Idler

$

$

Not available

13

Snapper 7014340

IDLER, .250" O.D.
(Superseded to 7014340YP)

$19.99

$

In Stock, Qty 6

0

14

Snapper 7021984

SPACER, Shoulder .33 x 1 x .151 Shld'r.

$

$

Not available

15

Snapper 7091328

SCREW, 3/8 - 16 x 1 1/4" Hex Head Cap Gr. 5
(Superseded to 703871)

Note: Was 90143

$4.99

$

Usually ships in 2-12 days

0

16

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

17

Snapper 7032070

WASHER, .406 x .75 x .132
(Superseded to 7032070YP)

$4.99

$

In Stock, only 1 left!

0

18

Snapper 7090848

SCREW, 5/16 - 18 x 1/2" Square Head Set
(Superseded to 7090848SM)

$10.99

$

In Stock, only 1 left!

0

19

Snapper 7091585

NUT, 3/8 - 16 Hex Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

20

Snapper 7010690

WASHER, Shim .62 x .81 x .016
(Superseded to 7010690YP)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7010008

KEY, (#6) 5/32 x 5/8" Woodruff
(Superseded to 7010008YP)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7090356

NUT, 5/8 - 18 Hex Lock
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

23

Snapper 7090483

SCREW, 3/8 - 16 x 1 3/4" Hex Head Cap
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

24

Snapper 7090627

SCREW, 5/16 - 18 x 1 1/4" Hex Head Cap

$

$

Not available

25

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

Usually ships in 2-12 days

0

26

Snapper 7091601

NUT, 5/16 - 18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

27

Snapper 7027198

BOLT, 3/8 - 16 x 1" Hex Flange Lock
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

28

Snapper 7091619

NUT, 3/8 - 16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

29

Snapper 7091304

SCREW, 3/8 - 16 x 1" Hex Head Cap Gr. 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

30

Snapper 7091588

BOLT, 3/8 - 16 x 3/4 Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

31

Snapper 7090659

BOLT, 3/8 - 16 x 1 1/4" Hex Flange Lock
(Superseded to 7090659YP)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper 7023887

SPRING, Idler 4"

$

$

Not available

33

Snapper 7090289

NUT, 3/8 - 16 Hex Flange Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

34

Snapper 7038413

STIFFENER, R.H.

$

$

Currently unavailable

35

Snapper 7038414

STIFFENER, L.H.

$

$

Not available

36

Snapper 7038415

STIFFENER, Lower

$

$

Not available

37

Snapper 7090122

WASHER, .406 x .812 x .080
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
