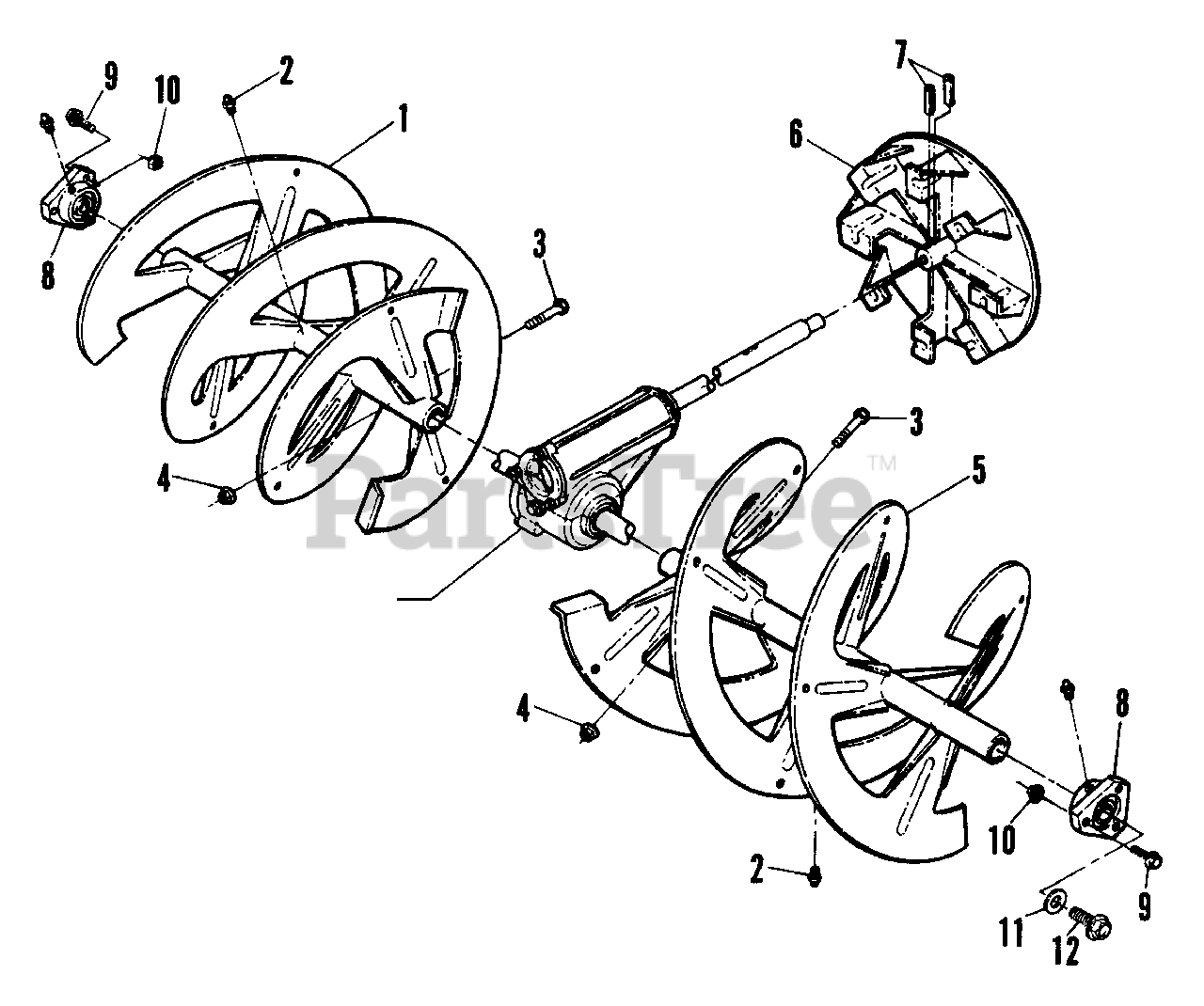

7082809 - Snapper 44" Snow Thrower Attachment Impeller Augers 44" Parts Diagram

44" Snow Thrower Attachment

Impeller Augers 44" Parts Diagram

  • Title

1

Snapper 7049783

AUGER, Right Side
(Superseded to 7049783YP)

$569.99

$

Usually ships in 2-12 days

0

2

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

3

Snapper 7013865

BOLT, 5/16-18 x 1-7/8" Shear
(Superseded to 7091550YP)

$

$

Not available

4

Snapper 7091575

LOCKNUT, 5/16 - 18 Hex Flange
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 19

0

5

Snapper 7049782

AUGER, Left Side

$

$

Currently unavailable

6

Snapper 7049770

FAN, Impeller

$

$

Currently unavailable

7

Snapper 7015395

PIN, Drive Lock
(Superseded to 7015395YP)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7051350

BEARING, Auger Shaft
(Superseded to 7051350YP)

Note: (Includes P/N 1-0817 Grease Fitting)

$35.99

$

Usually ships in 2-12 days

0

9

Snapper 7090699

BOLT, 1/4 - 20 x 3/4 Hex Flange Lock
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7091584

NUT, 1/4 - 20 Hex Flange
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

11

Snapper 7013866

WASHER, 3/8" Flat
(Superseded to 7013866YP)

$6.49

$

Usually ships in 2-12 days

0

12

Snapper 7090815

SCREW, 3/8 - 16 x 3/4 Self Tap
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0
