7082809 - Snapper 44" Snow Thrower Attachment Gearbox Shafts Parts Diagram

44" Snow Thrower Attachment

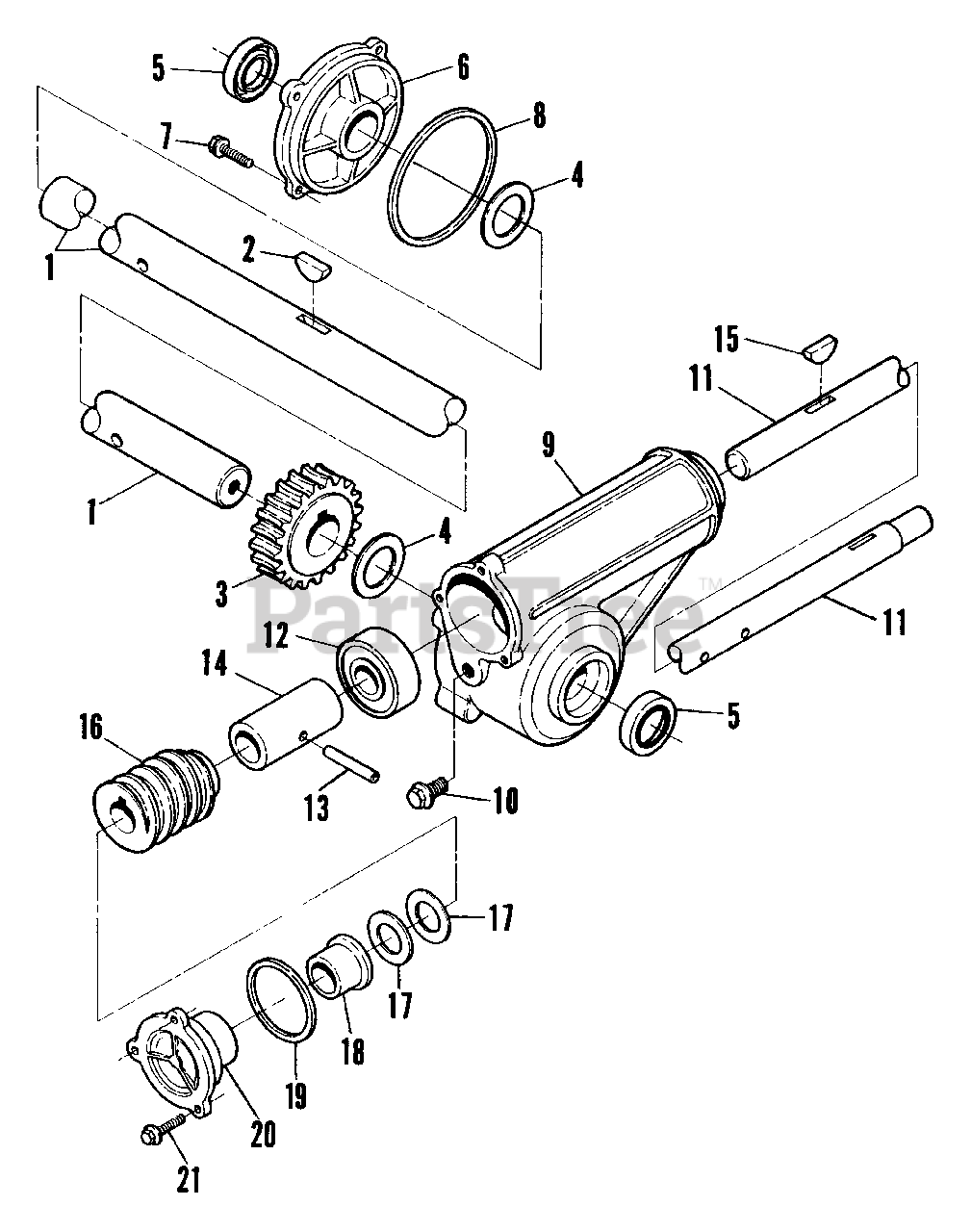

Gearbox Shafts Parts Diagram

  • Title

Snapper 7059746

ASSEMBLY, Gear Case
(Superseded to 7059746YP)

Note: (Includes items 1 thru 21)

$769.99

$

Usually ships in 2-12 days

0

1

Snapper 7027679

SHAFT, Auger
(Superseded to 7027679YP)

$110.99

$

Usually ships in 2-12 days

0

2

Snapper 7013857

KEY, Woodruff
(Superseded to 7013857YP)

$2.99

$

Usually ships in 2-12 days

0

3

Snapper 7051305

GEAR, Worm
(Superseded to 7051305YP)

$161.99

$

Usually ships in 2-12 days

0

4

Snapper 7013855

WASHER, Thrust
(Superseded to 7013855SM)

$7.49

$

In Stock, Qty 6

0

5

Snapper 7013858

SEAL, Oil
(Superseded to 7013858YP)

$8.99

$

In Stock, only 3 left!

0

6

Snapper 7018451

COVER, Gear Case
(Superseded to 7018451YP)

$109.99

$

Usually ships in 2-12 days

0

7

Snapper 7090290

SCREW, 1/4 - 20 x 3/4 Self Tap
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

8

Snapper 7013854

O-RING (Case Cover)
(Superseded to 7013854YP)

$5.99

$

In Stock, only 1 left!

0

9

Snapper 7019674

CASE, Gear

$

$

Not available

10

Snapper 7090815

PLUG, Check (3/8 x 1/2 Self Tap Screw)
(Superseded to 703950)

Note: Was 90506

$5.49

$

In Stock, only 3 left!

0

11

Snapper 7027678

SHAFT, Impeller Fan
(Superseded to 7027678YP)

$116.99

$

Usually ships in 2-12 days

0

12

Snapper 7013313

BEARING, Ball
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

13

Snapper 7013862

PIN, 1/4 x 1-1/2" Roll
(Superseded to 7013862YP)

$4.49

$

In Stock, Qty 12

0

14

$

$

Not available

15

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

$3.49

$

In Stock, Qty 5

0

16

Snapper 7027606

GEAR, Rolled Worm
(Superseded to 7027606YP)

$80.99

$

Usually ships in 2-12 days

0

17

Snapper 7010935

WASHER (Spacers)
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7012252

BUSHING
(Superseded to 7012252YP)

$

$

Not available

19

Snapper 7013853

O-RING (End Cap)

$3.49

$

In Stock, only 1 left!

0

20

Snapper 7018450

CAP, End
(Superseded to 7018450YP)

$30.99

$

Usually ships in 2-12 days

0

21

Snapper 7091075

SCREW, 10 - 24 x 5/8 Self Tap
(Superseded to 7091075SM)

Note: Was 90363

$4.49

$

In Stock, Qty 5

0
