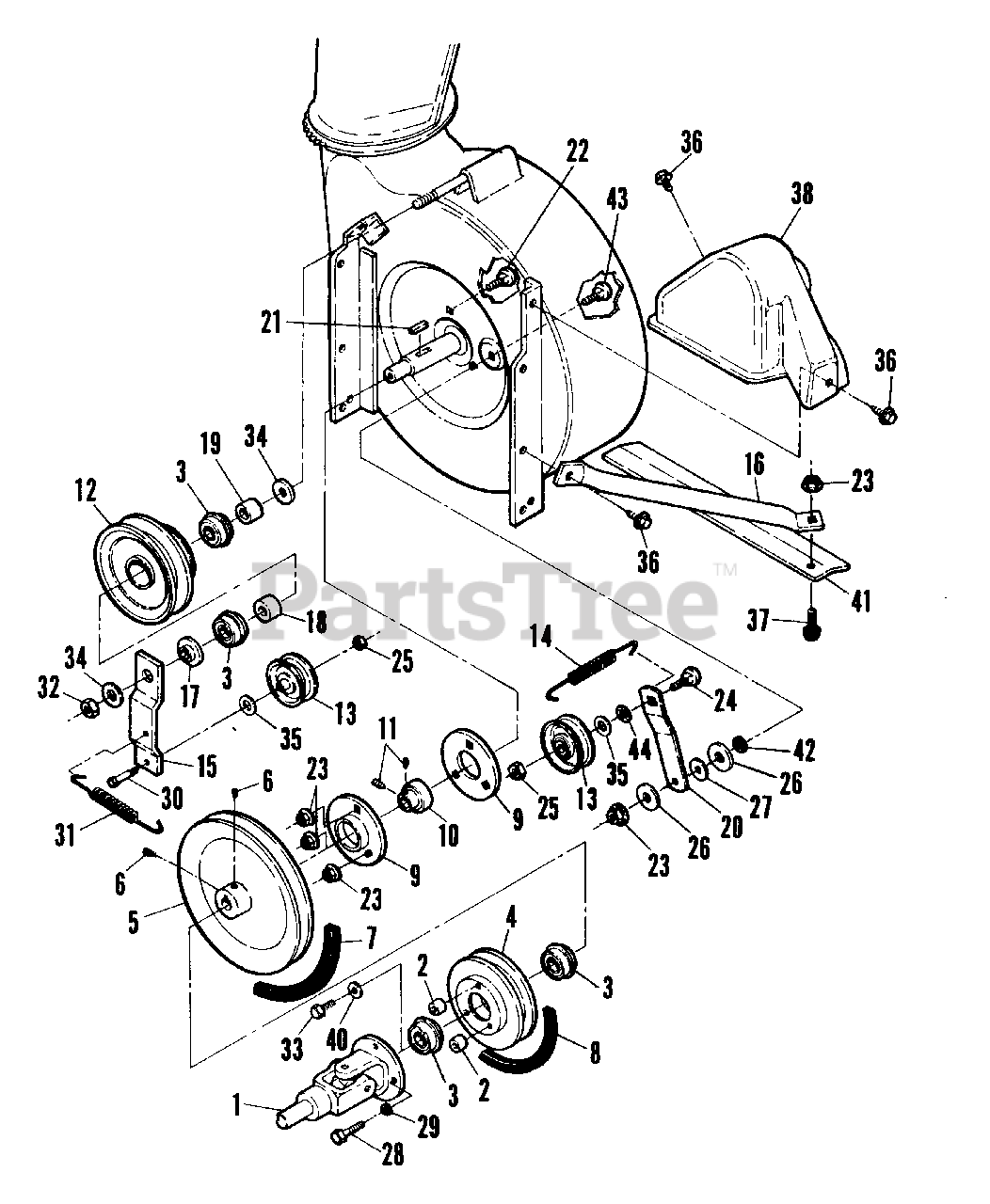

7082809 - Snapper 44" Snow Thrower Attachment Blower & Discharge (Rear View) Parts Diagram

44" Snow Thrower Attachment

Blower & Discharge (Rear View) Parts Diagram

  • Title
1

Snapper 7018838

SHAFT, Drive

$

$

Not available

2

Snapper 7021987

SPACER, .328 x .63 x .50

$

$

Not available

3

Snapper 7010756

BEARING
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

4

Snapper 7018836

PULLEY, 5.25" O.D. (Iron)
(Superseded to 7018836YP)

$103.99

$

Usually ships in 2-12 days

0

5

Snapper 7013867

PULLEY, 8.36" O.D.
(Superseded to 7013867YP)

Note: (Includes item 6)

$82.99

$

Usually ships in 2-12 days

0

6

SCREW, 5/16" Socket Head Set

$

$

Not available

7

Snapper 7023282

V-BELT 35.24
(Superseded to 7023282YP)

$26.99

$

In Stock, only 1 left!

0

8

Snapper 7023281

V-BELT 34
(Superseded to 7023281YP)

$24.99

$

Usually ships in 2-12 days

0

9

Snapper 7013931

HOUSING, Bearing

$

$

Not available

10

Snapper 7013924

BEARING
(Superseded to 7013924YP)

Note: (Includes item 11)

$43.99

$

In Stock, only 1 left!

0

11

SCREW, #10 - 32 Socket Head Set

$

$

Not available

12

Snapper 7016581

SHEAVE, Reduction

$

$

Not available

13

Snapper 7013850

IDLER, 2.47" O.D.
(Superseded to 7013850YP)

$20.99

$

In Stock, only 4 left!

0

14

Snapper 7014211

SPRING, Idler 5"
(Superseded to 7014211YP)

$5.49

$

Usually ships in 2-12 days

0

15

Snapper 7032744

ARM, Idler
(Superseded to 7032744YP)

$46.99

$

Usually ships in 2-12 days

0

16

Snapper 7036270

BRACE, R.H.

$

$

Not available

17

Snapper 7021924

BUSHING, Step .64 x 1.5 x .265

$

$

Currently unavailable

18

Snapper 7021849

SPACER, .64 x .88 x .765

$

$

Not available

19

Snapper 7023214

SPACER, .64 x .88 x 1.283

$

$

Not available

20

Snapper 7032718

ARM, Idler

$

$

Not available

21

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

$3.49

$

In Stock, Qty 5

0

22

Snapper 7091508

BOLT, 5/16 - 18 x 3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 12

0

23

Snapper 7091601

NUT, 5/16 - 18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

24

Snapper 7090964

BOLT, 3/8 - 16 x 1-1/2" Carriage

$

$

Not available

25

Snapper 7090499

NUT, 3/8 - 16 Hex Lock
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

Usually ships in 2-12 days

0

27

Snapper 7013849

SPACER, .328 x .625 x .156
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

28

Snapper 7090871

SCREW, 5/16 - 24 x 1 1/4" Hex Head Cap

$

$

Currently unavailable

29

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7091497

SCREW, 3/8 - 16 x 1-1/2" Hex Head Cap
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

31

Snapper 7023887

SPRING, 4"

$

$

Not available

32

Snapper 7090356

NUT, 5/8 - 18 Hex Lock
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

33

Snapper 7090361

SCREW, 5/16 - 18 x 5/8" Hex Thread Forming
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

34

Snapper 7090183

WASHER, .656 x 1.312 x .094
(Superseded to 7090183YP)

$4.49

$

In Stock, only 2 left!

0

35

Snapper 7090122

WASHER, .406 x .812 x .080
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

36

Snapper 7091541

BOLT, 5/16 - 18 x 3/4 Self-Tap
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

37

Snapper 7090595

SCREW, 5/16 - 18 x 5/8" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

38

Snapper 7017047

COVER, Belt
(Superseded to 7017047YP)

$54.99

$

Usually ships in 2-12 days

0

39

Snapper 7036269

BRACE, L.H.

Note: (Not Shown)

$

$

Currently unavailable

40

Snapper 7090188

WASHER, .343 x .688 x .080
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

41

Snapper 7038525

BAR, Stiffener

$

$

Currently unavailable

42

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

43

Snapper 7091508

SCREW, 5/16 - 18 x 3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90788

$3.49

$

In Stock, Qty 12

0

44

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0
