7082597 - Snapper 36" Snow Thrower for Large Frame Tractors Accessory, Snow Thrower - Mounting Assembly & Lift Components Parts Diagram

36" Snow Thrower for Large Frame Tractors

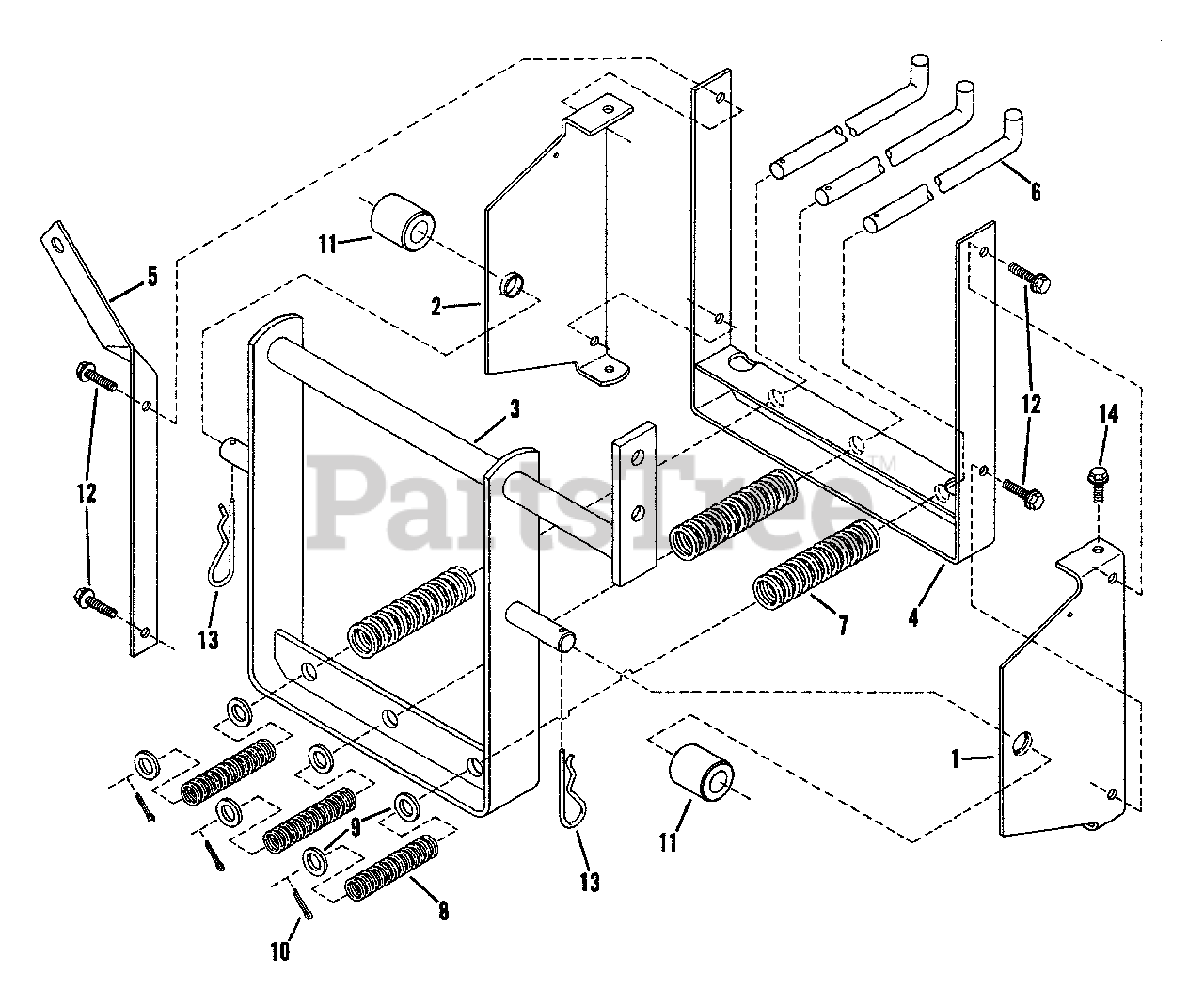

Accessory, Snow Thrower - Mounting Assembly & Lift Components Parts Diagram

  • Title
1

Snapper 7036178

BRACKET, Right Half Mounting

$

$

Currently unavailable

2

Snapper 7036179

BRACKET, Left Half Mounting

$

$

Currently unavailable

3

Snapper 7049976

STRUCTURE, Lift Yoke

$

$

Currently unavailable

4

Snapper 7049738

STRUCTURE, Spring Strap

$

$

Currently unavailable

5

Snapper 7036184

STRAP, Crank

$

$

Not available

6

Snapper 7032520

PIN, Spring

$

$

Currently unavailable

7

$

$

Not available

8

$

$

Not available

9

Snapper 7090250

WASHER, 1/2 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

10

Snapper 7091516

PIN, 5/32x1" Cotter
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

11

Snapper 7021988

BUSHING, Hitch
(Superseded to 7021988YP)

$22.99

$

Usually ships in 2-12 days

0

12

Snapper 7090369

SCREW, 5/16-18x1" Hex Thread Forming
(Superseded to 7091841SM)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7091596

PIN, Cotter - Hair
(Superseded to 7091596YP)

Note: Was 13844

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7090361

SCREW, 5/16-18x5/8 Hex Thread Forming
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0
