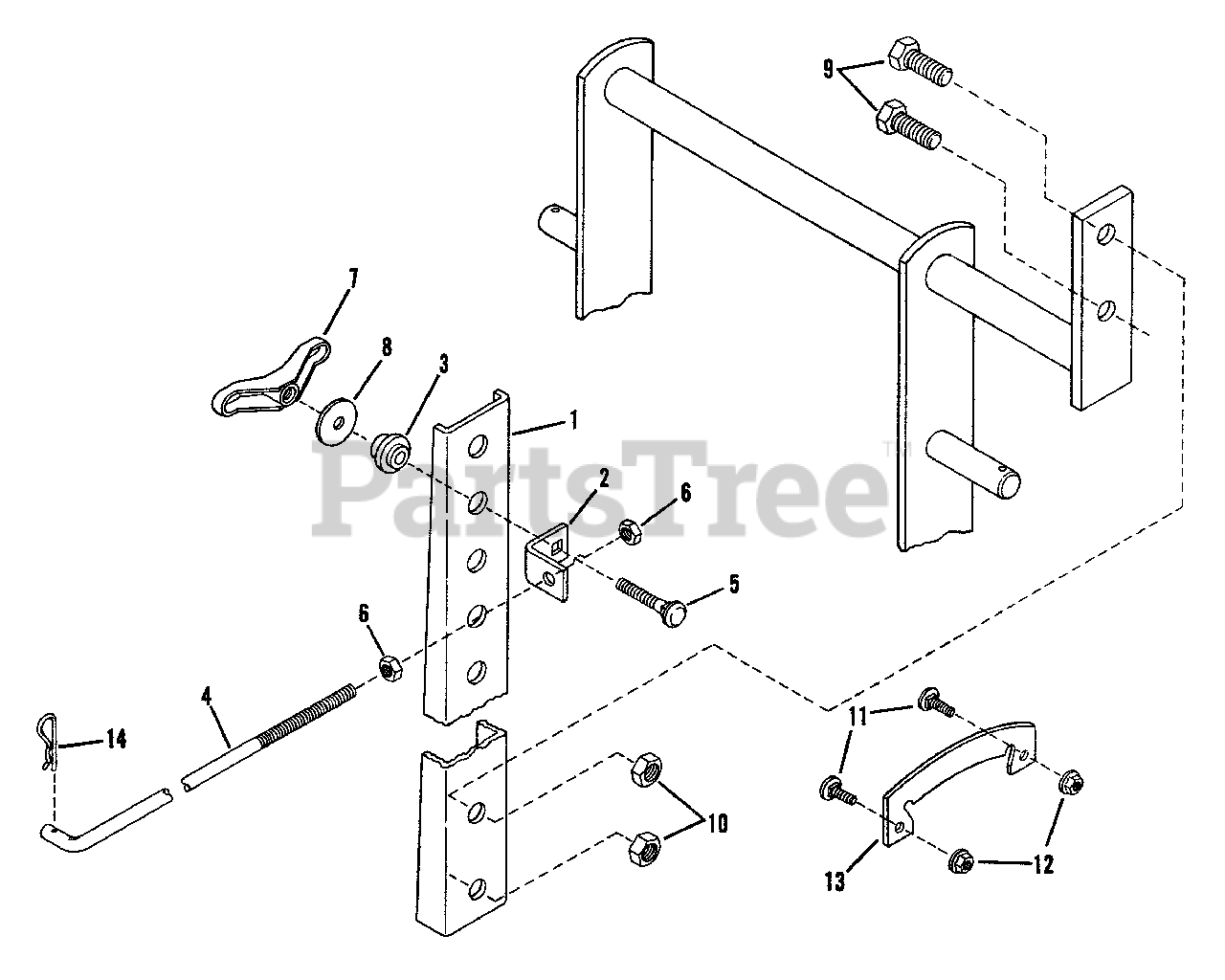

7082597 - Snapper 36" Snow Thrower for Large Frame Tractors Accessory, Snow Thrower - Lift Components Parts Diagram

36" Snow Thrower for Large Frame Tractors

Accessory, Snow Thrower - Lift Components Parts Diagram

  • Title
1

Snapper 7036185

ARM, Lift

$

$

Not available

2

Snapper 7032522

SWIVEL, Lift Rod

$

$

Currently unavailable

3

Snapper 7015515

SPACER
(Superseded to 7015515YP)

$16.99

$

Usually ships in 2-12 days

0

4

Snapper 7032519

ROD, Lift

$

$

Not available

5

Snapper 7090790

BOLT, 5/16-18x1-3/8" Carriage

$

$

Not available

6

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7014468

NUT, 5/16-18 Wing
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

8

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7090646

SCREW, 1/2-13x1" Hex Head Cap

$

$

Not available

10

Snapper 7091316

NUT, 1/2-13 Hex
(Superseded to 703340)

Note: Was 90258

$7.99

$

In Stock, only 1 left!

0

11

Snapper 7090803

BOLT, 1/4-20x5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

13

Snapper 7032378

PLATE, Quadrant
(Superseded to 7032378YP)

$

$

Not available

14

Snapper 7091503

HAIRPIN
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0
