7082597 - Snapper 36" Snow Thrower for Large Frame Tractors Accessory, Snow Thrower - Blower & Discharge (Rear View) Parts Diagram

36" Snow Thrower for Large Frame Tractors

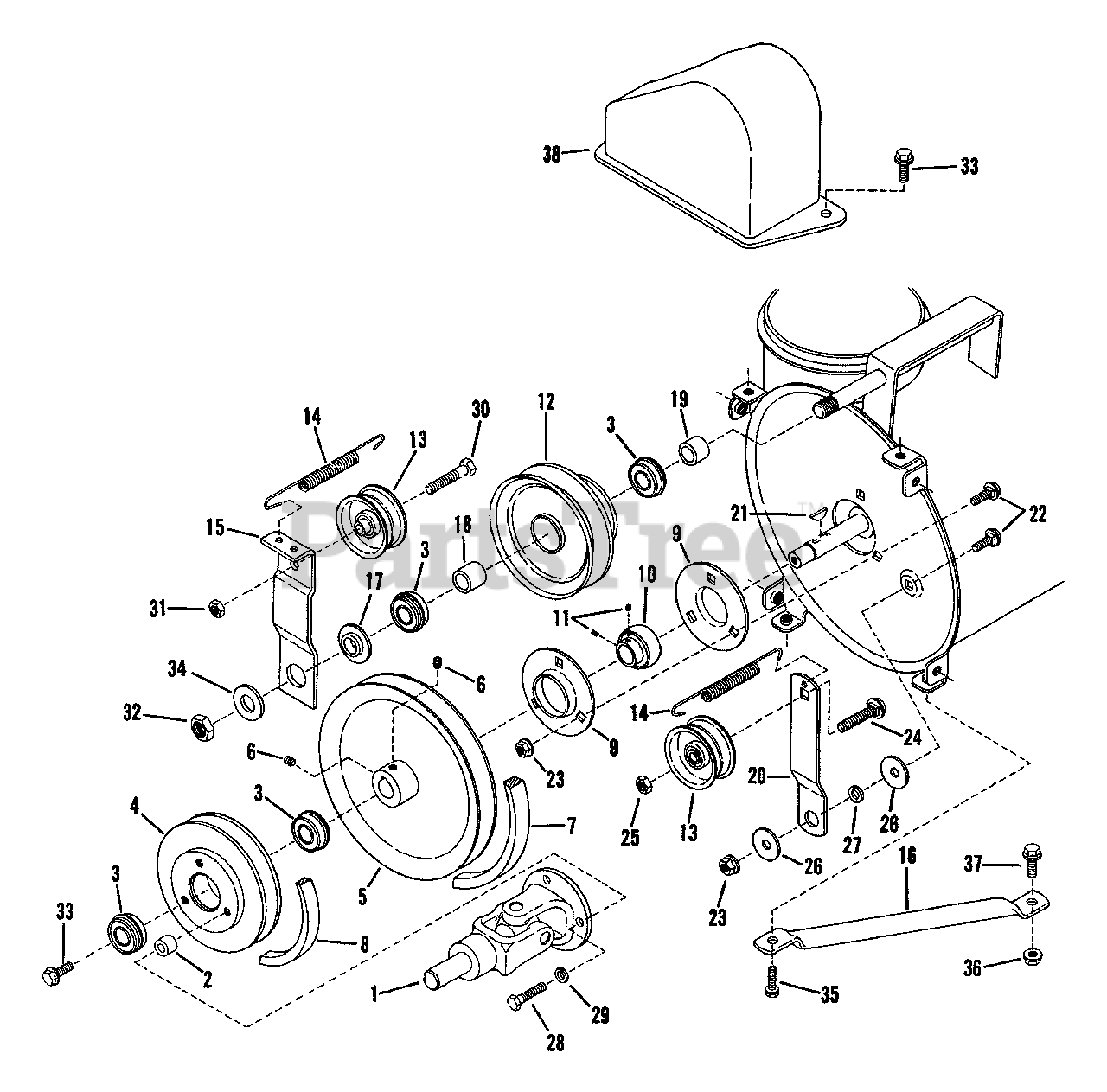

Accessory, Snow Thrower - Blower & Discharge (Rear View) Parts Diagram

  • Title
1

Snapper 7018838

SHAFT, Drive

$

$

Not available

2

$

$

Not available

3

Snapper 7010756

BEARING
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

4

Snapper 7018836

PULLEY, 5.25" O.D. (iron)
(Superseded to 7018836YP)

$103.99

$

Usually ships in 2-12 days

0

5

Snapper 7013867

PULLEY, 8.36" O.D.
(Superseded to 7013867YP)

Note: (includes item 6)

$82.99

$

Usually ships in 2-12 days

0

6

SCREW, 5/16 Socket Head Set

$

$

Not available

7

Snapper 7013939

V-BELT
(Superseded to 7013939YP)

$26.99

$

In Stock, Qty 20+

0

8

Snapper 7014716

V-BELT
(Superseded to 7014716YP)

$21.99

$

Usually ships in 2-12 days

0

9

Snapper 7013931

HOUSING, Bearing

$

$

Not available

10

Snapper 7013924

BEARING
(Superseded to 7013924YP)

Note: (Includes item 11)

$43.99

$

In Stock, only 1 left!

0

11

SCREW, #10-32 Socket Head Set

$

$

Not available

12

Snapper 18516

SHEAVE, Reduction

$

$

Currently unavailable

13

Snapper 7013850

IDLER, 2.47" O.D.
(Superseded to 7013850YP)

$20.99

$

In Stock, only 4 left!

0

14

Snapper 7014211

SPRING, Idler
(Superseded to 7014211YP)

$5.49

$

Usually ships in 2-12 days

0

15

Snapper 7032363

ARM, idler

$

$

Not available

16

Snapper 7038041

BRACE
(Superseded to 7038041YP)

Note: Was 38126

$11.99

$

Usually ships in 2-12 days

0

17

Snapper 7021924

BUSHING

$

$

Currently unavailable

18

$

$

Not available

19

$

$

Not available

20

Snapper 7032192

ARM, Idler

$

$

Currently unavailable

21

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

$3.49

$

In Stock, Qty 5

0

22

Snapper 7091508

BOLT, 5/16-18x3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 12

0

23

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

24

Snapper 7090791

BOLT, 3/8-16x1-1/2" Carriage
(Superseded to 7091945YP)

$4.49

$

In Stock, only 2 left!

0

25

Snapper 7090499

NUT, 3/8-16 Hex Lock
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

Usually ships in 2-12 days

0

27

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

28

Snapper 7090238

SCREW, 5/16-24x1" Hex Head Cap
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

29

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7091497

SCREW, 3/8-16x1-1/2" Hex Head Cap
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

31

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 7090356

NUT, 5/8-18 Hex Lock
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

33

Snapper 7090361

SCREW, 5/16-18x5/8" Hex Thread Forming
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

34

Snapper 7090183

WASHER, 5/8 Flat
(Superseded to 7090183YP)

$4.49

$

In Stock, only 2 left!

0

35

Snapper 7090290

SCREW, 1/4-20x3/4" Hex Thread Forming
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

36

Snapper 7091584

NUT 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

37

Snapper 7091495

SCREW 1/4-20x3/4" Hex Head Cap
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

38

Snapper 7016013

COVER, Belt
(Superseded to 7016013YP)

$45.99

$

Usually ships in 2-12 days

0
