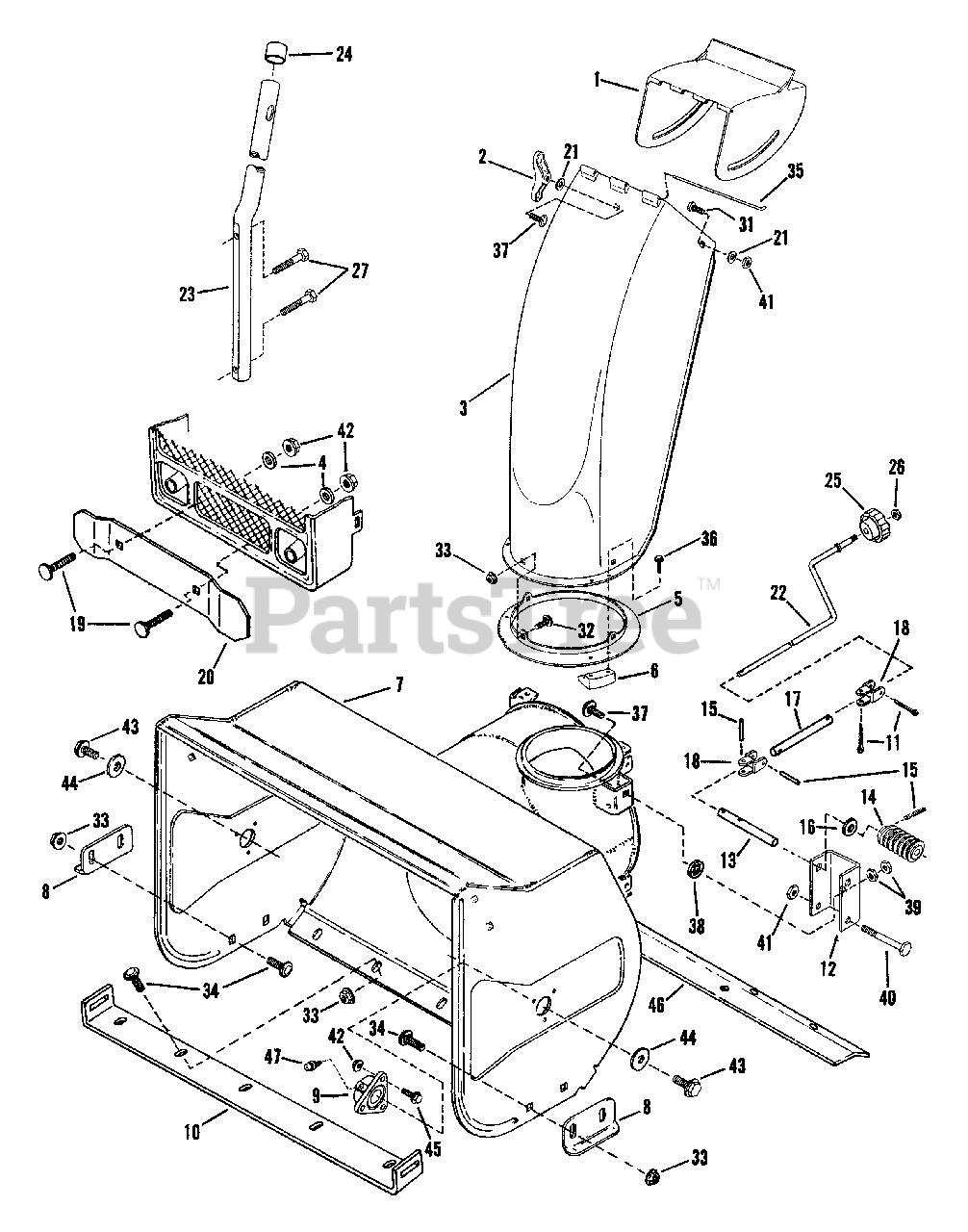

7082597 - Snapper 36" Snow Thrower for Large Frame Tractors Accessory, Snow Thrower - Blower & Discharge (Front) Parts Diagram

36" Snow Thrower for Large Frame Tractors

Accessory, Snow Thrower - Blower & Discharge (Front) Parts Diagram

  • Title
1

Snapper 7019761

DEFLECTOR, Discharge

$

$

Not available

2

Snapper 7014468

WING-NUT
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

3

Snapper 7053423

CHUTE, Discharge
(Superseded to 7072850SM)

Note: Was 16011

$

$

Not available

4

Snapper 7014241

WASHER, 1/4 Flat
(Superseded to 7014241YP)

$3.99

$

In Stock, only 1 left!

0

5

Snapper 7047855

RING, Chute
(Superseded to 7047855YP)

$77.99

$

Usually ships in 2-12 days

0

6

Snapper 7011938

RETAINER, Chute Ring
(Superseded to 7011938SM)

$

$

Not available

7

Snapper 7049948

HOUSING,Blower (36")

$

$

Currently unavailable

8

Snapper 7037982

SHOE, Skid
(Superseded to 7037982YP)

$

$

Not available

9

Snapper 7051350

BEARING, Auger Shaft
(Superseded to 7051350YP)

Note: (Includes 10817 grease fitting)

$35.99

$

Usually ships in 2-12 days

0

10

Snapper 7036099

BLADE, Scraper
(Superseded to 7036099YP)

$44.99

$

Usually ships in 2-12 days

0

11

Snapper 7091809

PIN, 1/8x1-1/4" Cotter
(Superseded to 7091809YP)

Note: Was 90042

$4.49

$

Usually ships in 2-12 days

0

Snapper 7051510

ASSEMBLY, Worm Bracket

Note: (Includes Items 12 thru 18)

$

$

Currently unavailable

12

Snapper 7037963

BRACKET, Worm
(Superseded to 7037963YP)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 7021852

SHAFT, Worm

$

$

Not available

14

Snapper 7021828

WORM
(Superseded to 7028348SM)

$22.99

$

Usually ships in 2-12 days

0

15

Snapper 7014001

ROLL-PIN, 1/8x3/4
(Superseded to 7014001SM)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7011079

WASHER, Spring Steel
(Superseded to 7011079YP)

$4.99

$

In Stock, Qty 20+

0

17

Snapper 7021953

ROD, Connect
(Superseded to 7021953YP)

$55.99

$

Usually ships in 2-12 days

0

18

Snapper 7032126

CONNECTOR

$

$

Not available

19

Snapper 7090803

BOLT, 1/4-20x5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7038255

DEFLECTOR, Exhaust

$

$

Currently unavailable

21

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

22

Snapper 7014671

CRANK, Chute
(Superseded to 7014671YP)

$39.99

$

Usually ships in 2-12 days

0

23

Snapper 7038136

BRACE, Chute Crank

$

$

Currently unavailable

24

Snapper 7010153

CAP, Crank Brace
(Superseded to 7010153YP)

$4.49

$

In Stock, only 3 left!

0

25

Snapper 7013901

KNOB, Chute Crank
(Superseded to 7013901YP)

$8.99

$

Usually ships in 2-12 days

0

26

Snapper 7091575

NUT, 5/16-18 Hex Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 19

0

27

Snapper 7091506

SCREW, 5/16-18x1-1/2 Self Tap
(Superseded to 704318)

Note: Was 90484

$4.49

$

Usually ships in 2-12 days

0

28

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

Note: Was 18593 (NOT SHOWN)

$13.99

$

In Stock, only 4 left!

0

29

Snapper 7014941

DECAL, Collector Warning
(Superseded to 1716532SM)

Note: (NOT SHOWN)

$12.99

$

Usually ships in 2-12 days

0

30

Snapper 7014929

DECAL, Deflector Warning
(Superseded to 7014929YP)

Note: (NOT SHOWN)

$6.49

$

In Stock, only 1 left!

0

31

Snapper 7090233

SCREW. 5/16-24x3/4" Hex Head Cap
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

32

Snapper 7090316

BOLT, 5/16-18x5/8" Carriage
(Superseded to 703225)

Note: Was 90605

$3.99

$

In Stock, Qty 20+

0

33

Snapper 7091601

NUT, 5/16-18 Hex Flange
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

34

Snapper 7091508

BOLT, 5/16-18x3/4" Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0

35

Snapper 7015138

PIN, Hinge

$

$

Not available

36

Snapper 7091075

SCREW,#10-24x5/8" Self-tapping
(Superseded to 7091075SM)

Note: Was 90363

$4.49

$

In Stock, Qty 5

0

37

Snapper 7091303

BOLT, 5/16-18x1" Carriage
(Superseded to 703800)

Note: Was 90208

$3.99

$

In Stock, Qty 7

0

38

Snapper 7011791

RETAINER, Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

39

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

40

Snapper 7090246

SCREW, 5/16-24x2-1/2 Hex Head Cap
(Superseded to 7090246YP)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7090222

NUT, 5/16-24 Hex Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

42

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

43

Snapper 7090815

SCREW, 3/8-16x1/2" Self Tap.
(Superseded to 703950)

Note: Was 90506

$5.49

$

In Stock, only 1 left!

0

44

Snapper 7013866

WASHER, 3/8" Flat
(Superseded to 7013866YP)

$6.49

$

Usually ships in 2-12 days

0

45

Snapper 7090596

BOLT, 1/4-20x5/8" Hex Flange Lock

$

$

Not available

46

Snapper 7038118

BAR, Stiffener
(Superseded to 7038118YP)

$66.99

$

Usually ships in 2-12 days

0

47

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0
