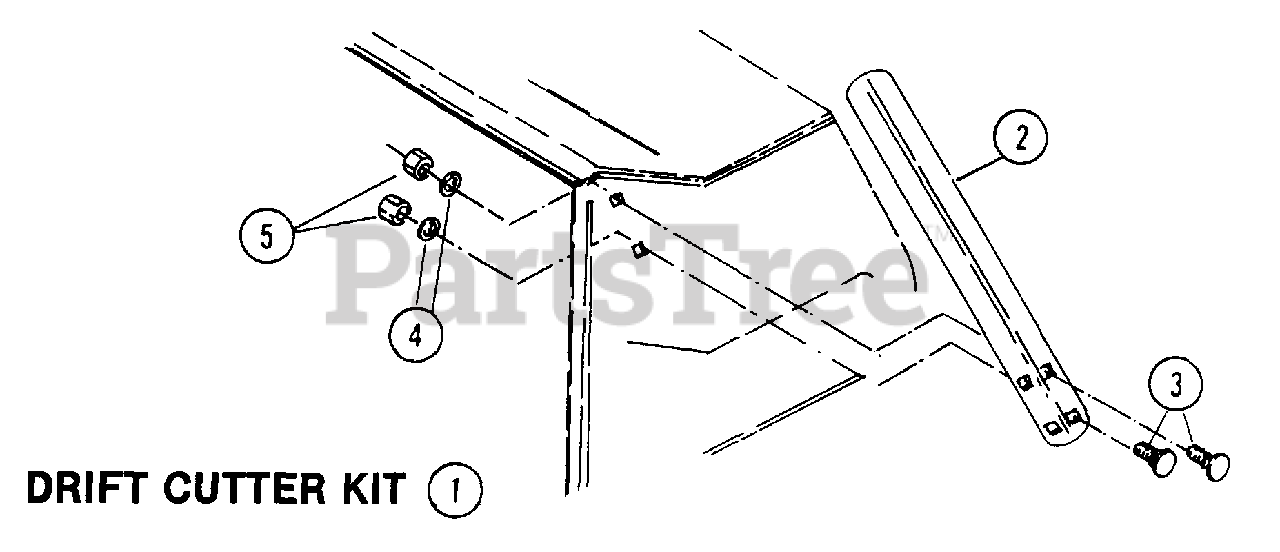

7082099 - Snapper 30" RER Snow Thrower Attachment Drift Cutter Kit Parts Diagram

30" RER Snow Thrower Attachment

Drift Cutter Kit Parts Diagram

  • Title
1

Snapper 7060472

KIT, Drift Cutter
(Superseded to 7060472YP)

Note: (Includes the following items 2-5)

$116.99

$

Usually ships in 2-12 days

0

2

Snapper 7037971

CUTTER, DRIFT
(Superseded to 7037971YP)

$68.99

$

Usually ships in 2-12 days

0

3

Snapper 7091508

BOLT, 5/16Cx3/4 Carriage
(Superseded to 703185)

Note: Was 90001 (Part of 60502 Hardware Bag)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7090187

LOCKWASHER, 5/16 Split
(Superseded to 703116)

Note: (Part of 60502 Hardware Bag)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7091511

NUT, 5/16 Hex
(Superseded to 7091511SM)

Note: Was 90196 (Part of 60502 Hardware Bag)

$3.49

$

In Stock, Qty 20+

0

Snapper 7060502

Hardware Bag

$

$

Not available
