7082099 - Snapper 30" RER Snow Thrower Attachment Carrier Components Parts Diagram

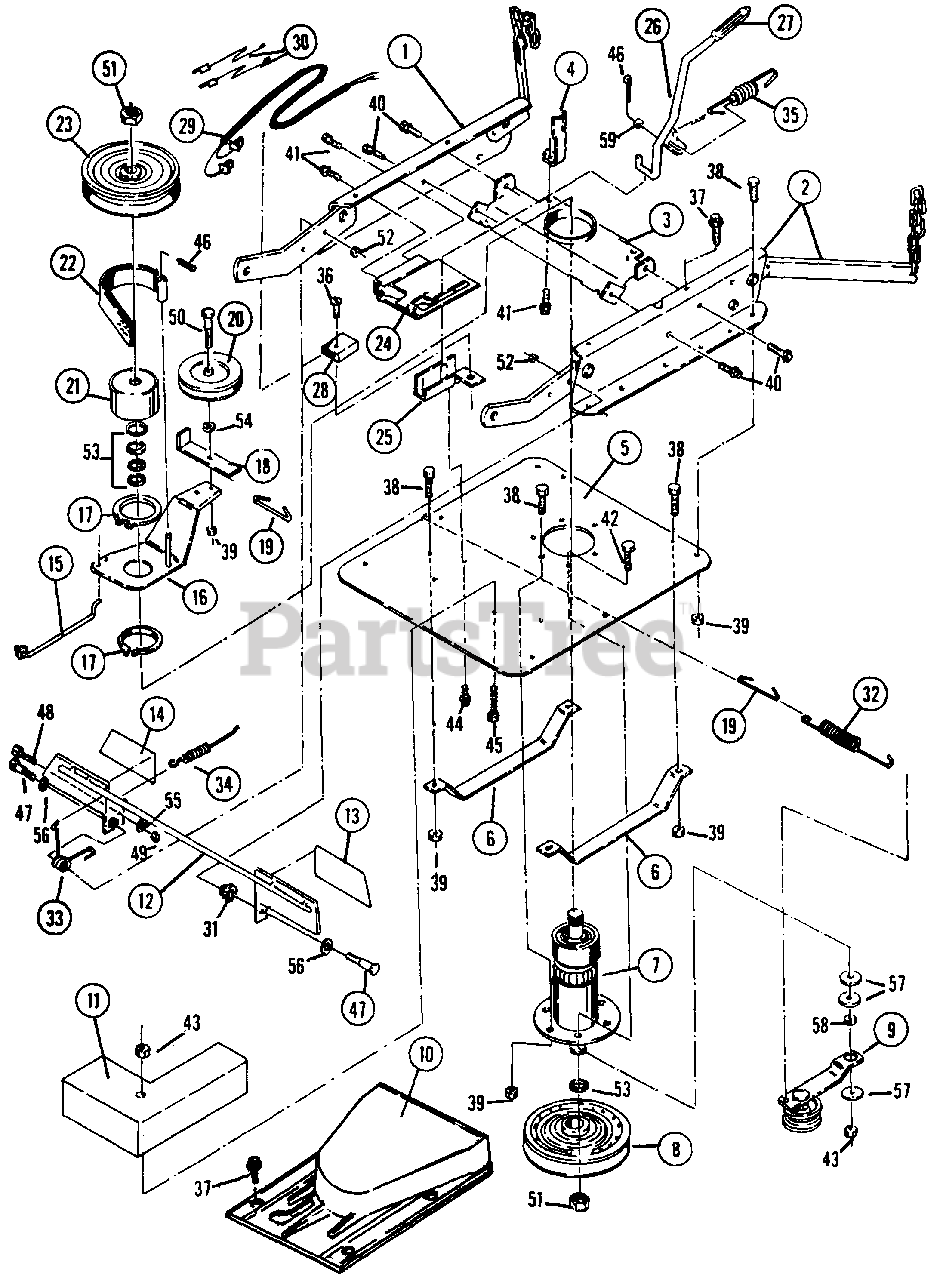

30" RER Snow Thrower Attachment

Carrier Components Parts Diagram

  • Title

1

Snapper 59609

RAIL ASSEMBLY, Right Side

$

$

Currently unavailable

2

Snapper 59610

RAIL ASSEMBLY, Left Side

$

$

Currently unavailable

3

Snapper 7031838

BRACE, Rail Top
(Superseded to 7031838BMYP)

$37.99

$

Usually ships in 2-12 days

0

4

Snapper 7031855

GUIDE, Belt
(Superseded to 7031855YP)

$7.49

$

In Stock, only 1 left!

0

5

Snapper 36010

PLATE, Spindle Mounting

$

$

Currently unavailable

6

Snapper 38017

RUNNER

$

$

Currently unavailable

7

Snapper 57295

SPINDLE ASSEMBLY

Note: (Refer to "Spindle Assembly" illustration and parts list for parts)

$

$

Currently unavailable

8

Snapper 7013867

PULLEY, 8.36" O.D.
(Superseded to 7013867YP)

Note: (Blower Belt)

$82.99

$

Usually ships in 2-12 days

0

9

Snapper 7051332

IDLER ARM ASSEMBLY

Note: (Lower Arm)

$

$

Currently unavailable

10

Snapper 7057458

COVER, SPINDLE
(Superseded to 7057458YP)

Note: Was 19952 (Includes Decals except 14232)

$143.99

$

Usually ships in 2-12 days

0

11

Snapper 18531

WEIGHT, Carrier

$

$

Currently unavailable

12

Snapper 7047788

PEDAL, Blade/Auger

$

$

Not available

13

Snapper 14170

TREAD, Blade Stop-Left Side

$

$

Currently unavailable

14

Snapper 14169

TREAD,Blade Stop-Right Side

$

$

Currently unavailable

15

Snapper 7012055

ROD, Idler
(Superseded to 7012055YP)

$15.99

$

In Stock, only 3 left!

0

16

Snapper 7047716

ARM, Idler
(Superseded to 7047716YP)

$94.99

$

Usually ships in 2-12 days

0

17

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

18

Snapper 7032111

RESTRICTOR, Belt
(Superseded to 7032111YP)

$6.99

$

In Stock, Qty 11

0

19

Snapper 14219

LINK, Wire

$

$

Currently unavailable

20

Snapper 7011029

PULLEY, Idler
(Superseded to 7011029YP)

$23.99

$

In Stock, only 1 left!

0

21

Snapper 7030817

DRUM, Brake

$

$

Not available

22

Snapper 7050627

BAND, Brake
(Superseded to 7050627YP)

$

$

Not available

23

Snapper 7018781

PULLEY, Spindle
(Superseded to 7018781BMYP)

Note: Was 10787 (Now 18781 + 15290)

$43.99

$

In Stock, Qty 9

0

24

Snapper 7058969

CLUTCH-PLATE ASSEMBLY
(Superseded to 7600140YP)

Note: Was 51310

$41.99

$

In Stock, only 2 left!

0

25

Snapper 7038021

MOUNT, Blade Handle
(Superseded to 7038021YP)

$13.99

$

Usually ships in 2-12 days

0

26

Snapper 7040472

HANDLE, Blade
(Superseded to 7040472YP)

$34.99

$

Usually ships in 2-12 days

0

27

Snapper 7022295

GRIP, Handle
(Superseded to 7022295YP)

Note: Was 10681

$6.99

$

In Stock, Qty 6

0

28

Snapper 7018524

SWITCH, Interlock
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 11

0

29

Snapper 7018525

HARNESS, Wiring
(Superseded to 7018525YP)

$

$

Not available

30

Snapper 7014233

CONNECTOR-LEADS

$

$

Currently unavailable

31

Snapper 7011016

BEARING, Nylon
(Superseded to 7011016YP)

$4.49

$

In Stock, only 1 left!

0

32

Snapper 7014211

SPRING
(Superseded to 7014211YP)

Note: (Blower Belt Tensioning)

$5.49

$

Usually ships in 2-12 days

0

33

Snapper 7014166

SPRING
(Superseded to 7014166YP)

Note: (Blade Pedal Latch)

$10.99

$

In Stock, only 1 left!

0

34

Snapper 7014167

SPRING
(Superseded to 7014167YP)

Note: (Blade Pedal Return)

$3.99

$

Usually ships in 2-12 days

0

35

Snapper 7014168

SPRING
(Superseded to 7014168YP)

Note: (Blade Handle)

$6.49

$

In Stock, Qty 9

0

36

Snapper 7090299

SCREW, 10-32x1 Self Tap
(Superseded to 7090299YP)

$4.49

$

Usually ships in 2-12 days

0

37

Snapper 7090741

SCREW, 1/4-20x5/8 Self Tap
(Superseded to 703054)

Note: Was 90723

$4.49

$

In Stock, Qty 5

0

38

Snapper 7090292

SCREW, 3/8-24x3/4 Hex Head Cap

$2.99

$

In Stock, only 3 left!

0

39

Snapper 7090289

LOCKNUT, 3/8-24 Hex
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

40

Snapper 7090324

SCREW, 3/8-16x1 Self Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

41

Snapper 7090361

SCREW, 5/16-18x5/8 Self Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

42

Snapper 7090240

SCREW, 5/16Fx1-1/4 Hex Head Cap
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

43

Snapper 7090222

LOCKNUT, 5/16-24 Hex
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

44

Snapper 7091819

SCREW, 1/4-20x5/8 Self Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

45

Snapper 7090454

SCREW, 5/16-24x3-3/4 Hex Head Cap

$

$

Currently unavailable

46

Snapper 7091597

COTTER-PIN, 3/32x3/4
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

47

Snapper 7014158

BOLT, 3/8-24x1-3/4 Shoulder

$

$

Currently unavailable

48

Snapper 7090535

SCREW, 1/4-28x1 Hex Head Cap
(Superseded to 7090535YP)

$4.49

$

In Stock, only 1 left!

0

49

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

50

Snapper 7090161

SCREW, 3/8-24x1-3/4 Hex Head Cap
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

51

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 10

0

52

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

53

Snapper 7010935

WASHER, Spacer
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

54

Snapper 7090122

WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

55

Snapper 7090053

LOCKWASHER, 1/4 Internal Tooth
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

56

Snapper 7090250

WASHER, 1/2 SAE
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

57

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

In Stock, only 2 left!

0

58

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

59

Snapper 7091294

WASHER, 1/4 SAE
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0
