7082099 - Snapper 30" RER Snow Thrower Attachment Blower Housing, Discharge Parts Diagram

30" RER Snow Thrower Attachment

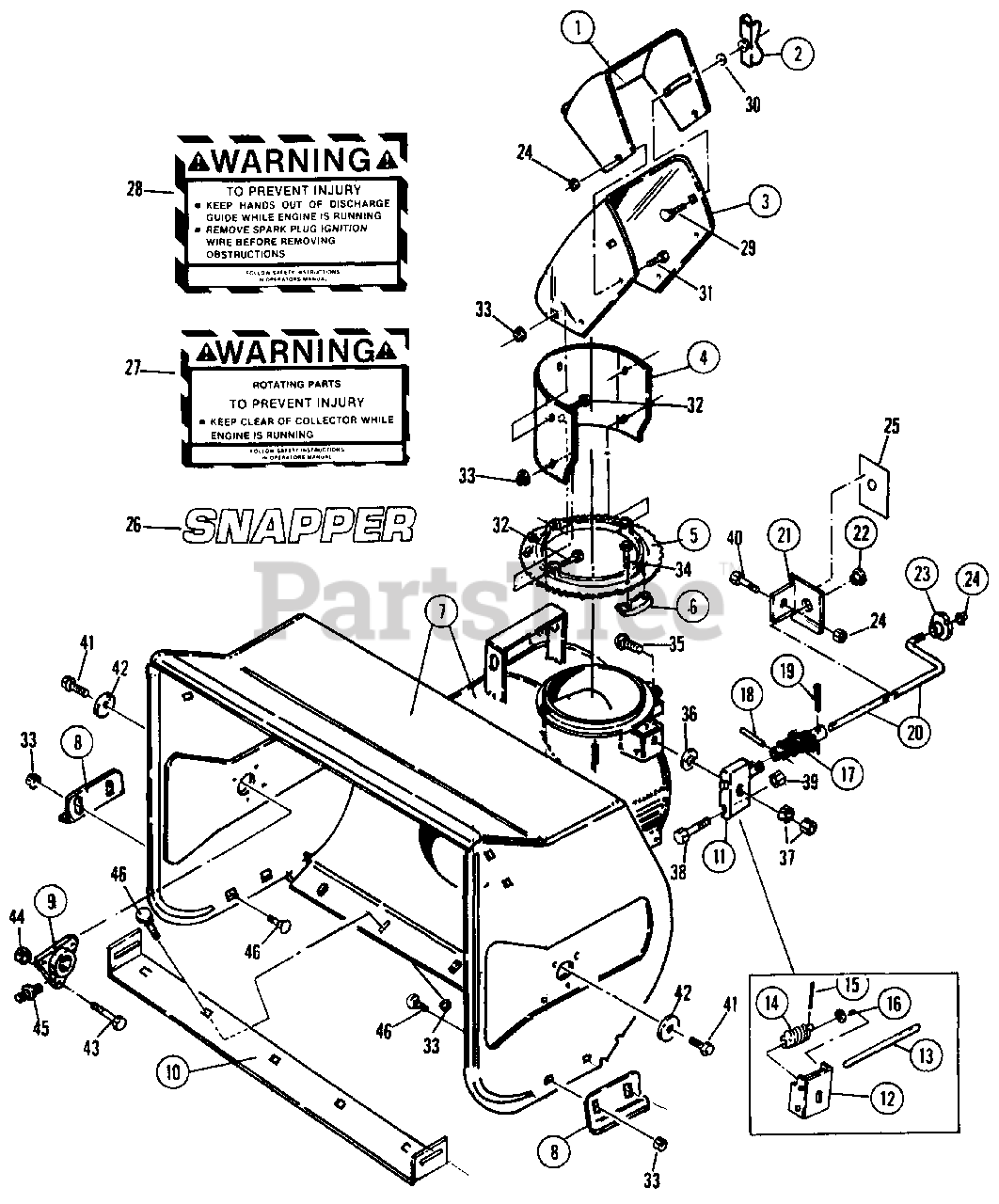

Blower Housing, Discharge Parts Diagram

  • Title
1

Snapper 7053488

DEFLECTOR
(Superseded to 7053488YP)

Note: Was 37966

$

$

Not available

2

Snapper 7015693

WING-NUT
(Superseded to 014X79MA)

Note: Was 50615

$4.99

$

Usually ships in 2-12 days

0

3

$

$

Currently unavailable

4

Snapper 7053423

EXTENSION, Chute
(Superseded to 7072850SM)

Note: Was 36011

$

$

Not available

5

Snapper 47801

RING, Chute

$123.99

$

Usually ships in 2-12 days

0

6

Snapper 7011938

RETAINER, Chute Ring
(Superseded to 7011938SM)

$

$

Not available

7

Snapper 49923

HOUSING,Blower

$

$

Currently unavailable

8

Snapper 7037982

SHOE, Skid
(Superseded to 7037982YP)

$

$

Not available

9

Snapper 7018452

BEARING, Auger Shaft

$

$

Currently unavailable

10

Snapper 7036006

BLADE, Scraper
(Superseded to 7036006YP)

$49.99

$

Usually ships in 2-12 days

0

11

Snapper 51331

ASSEMBLY, Worm Bracket

Note: (Includes Items 12 thru 18)

$

$

Currently unavailable

12

Snapper 7037963

BRACKET, Worm
(Superseded to 7037963YP)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 7021852

SHAFT, Worm

$

$

Not available

14

Snapper 7021828

WORM
(Superseded to 7028348SM)

$22.99

$

Usually ships in 2-12 days

0

15

Snapper 7014001

ROLL-PIN, 1/8x3/4
(Superseded to 7014001SM)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7011079

WASHER, Spring Steel
(Superseded to 7011079YP)

$4.99

$

In Stock, Qty 20+

0

17

Snapper 14230

UNIVERSAL JOINT

$

$

Currently unavailable

18

Snapper 7013877

PIN, 1/8" x 1" Roll
(Superseded to 7013877YP)

$3.49

$

In Stock, only 2 left!

0

19

Snapper 7091598

COTTER-PIN, 1/8x1
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0

20

Snapper 14209

CRANK, Chute

$

$

Currently unavailable

21

Snapper 32208

BRACKET, Chute Crank

$

$

Currently unavailable

22

Snapper 7012117

BUSHING, Crank
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 11

0

23

Snapper 7013901

KNOB, Chute Crank
(Superseded to 7013901YP)

$8.99

$

Usually ships in 2-12 days

0

24

Snapper 7091575

LOCK NUT, 5/16C
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 17

0

25

Snapper 7014212

DECAL, Chute Control

$

$

Not available

26

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

Note: Was 18507

$13.99

$

In Stock, only 4 left!

0

27

Snapper 7013930

DECAL, Collector Warning
(Superseded to 7014929YP)

$6.49

$

In Stock, only 1 left!

0

28

Snapper 7013929

DECAL, Deflector Warning

$

$

Not available

29

Snapper 7091530

BOLT, 1/4Cx3/4 Carriage
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 1 left!

0

30

Snapper 7091294

WASHER, 1/4 SAE Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7090534

SCREW, 5/16Cx1/2, Hex Head Cap
(Superseded to 704317)

Note: Was 90203

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 7090731

BOLT, 5/16-18x1/2 Gr.5 Carriage
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

33

Snapper 7091601

NUT, 5/16-18 Flange
(Superseded to 703409)

Note: Was 12625

$5.49

$

In Stock, Qty 20+

0

34

Snapper 7091075

SCREW, 10Cx1/2 Hex Hd Self Tap.
(Superseded to 7091075SM)

Note: Was 90363

$4.49

$

In Stock, Qty 5

0

35

Snapper 7091303

BOLT, 5/16Cx1 Carriage
(Superseded to 703800)

Note: Was 90208

$3.99

$

In Stock, Qty 7

0

36

Snapper 7011791

RETAINER, Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7091511

NUT, 5/16C Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

38

Snapper 7090246

SCREW, 5/16-24x2-1/2 Hex Head Cap
(Superseded to 7090246YP)

$3.49

$

Usually ships in 2-12 days

0

39

Snapper 7090222

LOCK NUT, 5/16-24 Hex
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

40

Snapper 7090204

SCREW, 5/16-18x5/8 Hex Head Cap
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

41

Snapper 7090815

SCREW, 3/8Cx1/2 Self Tap.
(Superseded to 703950)

Note: Was 90506

$5.49

$

In Stock, only 3 left!

0

42

Snapper 7013866

WASHER, 3/8" Flat
(Superseded to 7013866YP)

$6.49

$

Usually ships in 2-12 days

0

43

Snapper 7090596

BOLT, 1/4Cx5/8 Hex Flange Lock

$

$

Not available

44

Snapper 7091584

NUT, 1/4C Hex Flange
(Superseded to 703233)

Note: Was 90771

$4.49

$

In Stock, Qty 5

0

45

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

46

Snapper 7091508

BOLT, 5/16-18x3/4 Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 12

0
