7082099 - Snapper 30" RER Snow Thrower Attachment Augers, Impeller Fan Parts Diagram

30" RER Snow Thrower Attachment

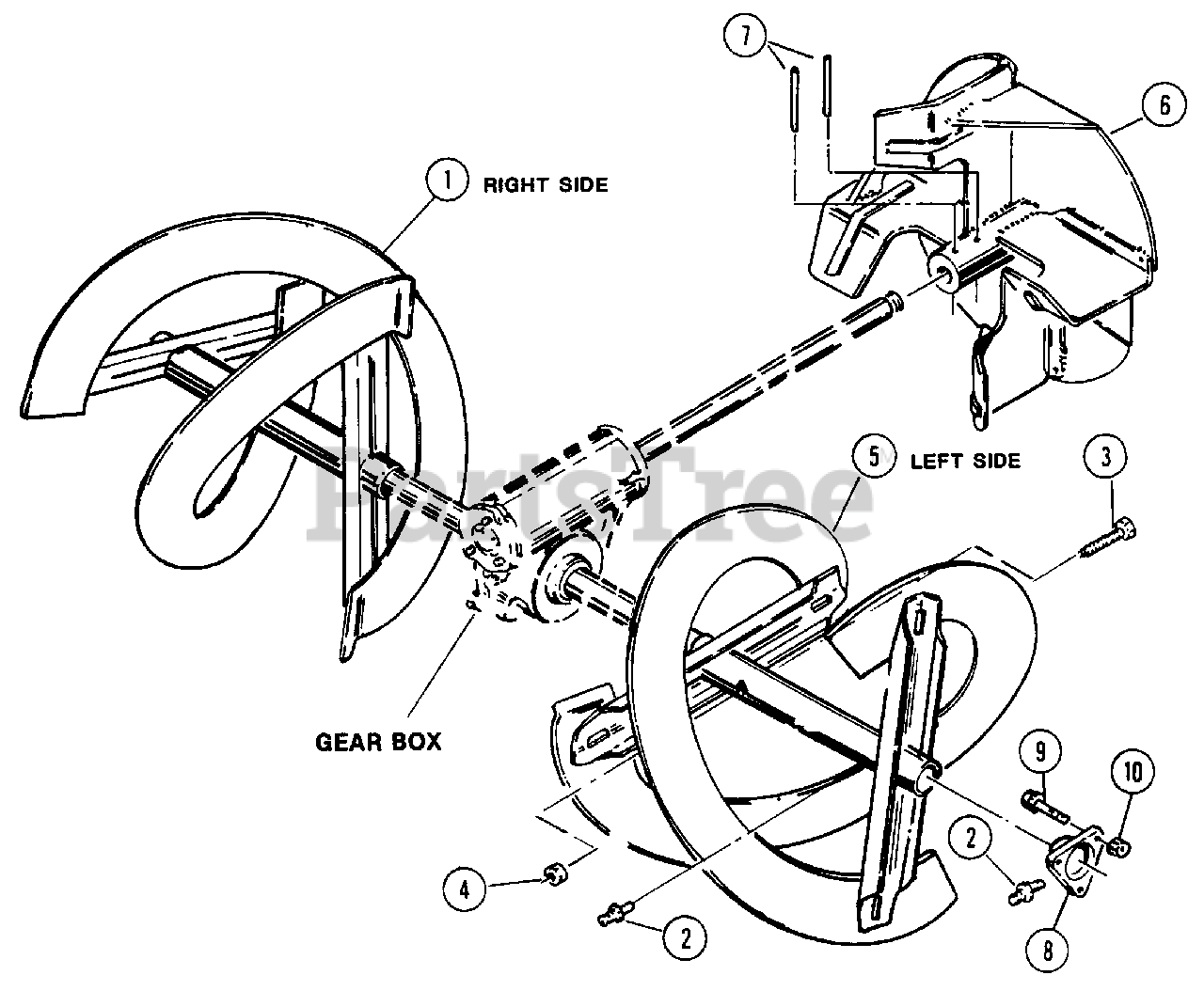

Augers, Impeller Fan Parts Diagram

  • Title
1

Snapper 7049922

AUGER, Right Side
(Superseded to 7049922YP)

$307.99

$

Usually ships in 2-12 days

0

2

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

3

Snapper 7013865

BOLT, 5/16-18 x 1-7/8" Shear
(Superseded to 7091550YP)

$

$

Not available

4

Snapper 7091601

LOCKNUT, Hex Flange
(Superseded to 703409)

Note: Was 12625

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7049921

AUGER, Left Side
(Superseded to 7049921YP)

$245.99

$

Usually ships in 2-12 days

0

6

Snapper 7049677

FAN, Impeller

$

$

Not available

7

Snapper 7013862

PIN, 1/4 x 1-1/2" Roll
(Superseded to 7013862YP)

$4.49

$

In Stock, Qty 12

0

8

Snapper 7018452

BEARING, Auger Shaft

$

$

Currently unavailable

9

Snapper 7090596

BOLT, 1/4cx5/8 Hex Flange Lock

$

$

Not available

10

Snapper 7091584

NUT, 1/4C Hex Flange
(Superseded to 703233)

Note: Was 90771

$4.49

$

In Stock, Qty 5

0
