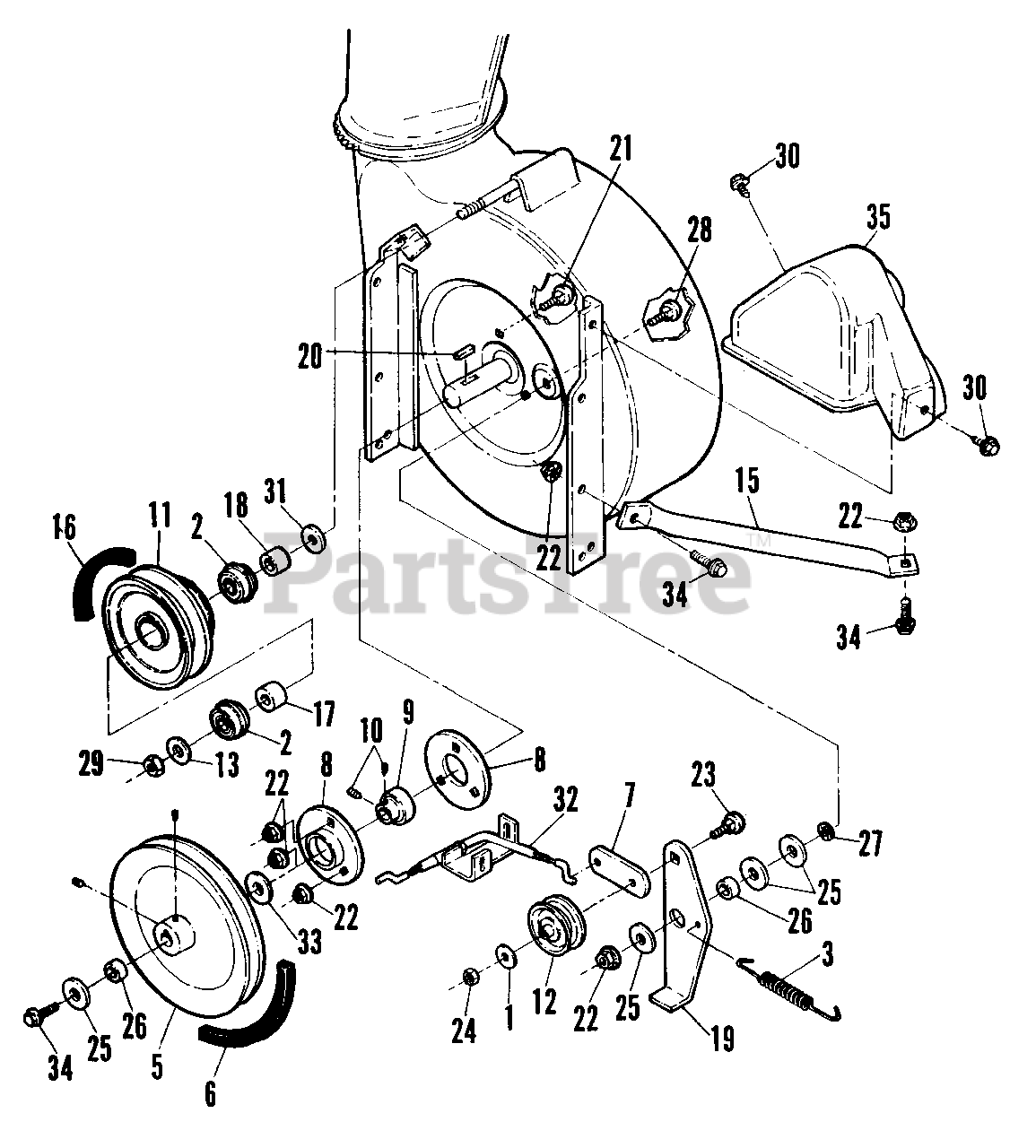

7080575 - Snapper 38" LT Snow Thrower Attachment Blower & Discharge (Rear View) Parts Diagram

38" LT Snow Thrower Attachment

Blower & Discharge (Rear View) Parts Diagram

  • Title
1

Snapper 7090122

WASHER, .406 x .812 x .080
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

2

Snapper 7010756

BEARING
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

3

Snapper 7023887

SPRING, 4"

$

$

Not available

?4

Snapper 7013867

PULLEY, 8.36" O.D.
(Superseded to 7013867YP)

Note: (Includes Item 5)

$82.99

$

Usually ships in 2-12 days

0

5

SCREW, 5/16 Socket Head Set

$

$

Not available

6

Snapper 7023282

V-BELT, 35.24
(Superseded to 7023282YP)

$26.99

$

In Stock, only 1 left!

0

7

Snapper 7032773

CABLE LINK
(Superseded to 7032773YP)

$37.99

$

Usually ships in 2-12 days

0

8

Snapper 7013931

HOUSING, Bearing

$

$

Not available

9

Snapper 7013924

BEARING
(Superseded to 7013924YP)

Note: (Includes Item 10)

$43.99

$

In Stock, only 2 left!

0

10

SCREW, #10 - 32 Socket Head Set

$

$

Not available

11

Snapper 7016581

SHEAVE, Reduction

$

$

Not available

12

Snapper 7013850

IDLER, 2.47" O.D.
(Superseded to 7013850YP)

$20.99

$

In Stock, Qty 7

0

13

Snapper 7027344

WASHER, .635 x .985 x .05
(Superseded to 7027344SM)

Note: Was 15992

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7036269

BRACE, L.H.

Note: (Not Shown)

$

$

Currently unavailable

15

Snapper 7036270

BRACE, R.H.

$

$

Not available

16

Snapper 7019380

V-BELT 68-1/2" (Engine Drive)
(Superseded to 7019380YP)

Note: (Was 23576, 68")

$35.99

$

Usually ships in 2-12 days

0

17

Snapper 7021849

SPACER, .64 x .88 x .765

$

$

Not available

18

Snapper 7023642

SPACER, .64 x .88 x 1.42

$

$

Not available

19

Snapper 7057605

ARM, Idler Ass'y.

$

$

Currently unavailable

20

Snapper 7012830

KEY, 3/16 Sg. x 3/4 Lg.
(Superseded to 2001022MA)

$4.49

$

In Stock, Qty 12

0

21

Snapper 7091508

BOLT, 5/16 - 18 x 3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 16

0

22

Snapper 7091601

NUT, 5/16 - 18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

23

Snapper 7090964

BOLT, 3/8 - 16 x 1 1/2" Carriage (Flat Hd)

$

$

Not available

24

Snapper 7090499

NUT, 3/8 - 16 Hex Lock
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

In Stock, only 2 left!

0

26

Snapper 7013849

SPACER, .328 x .63 x .156
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7011791

BOLT, Retainer
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7091303

BOLT, Carriage Short Neck, 5/16 - 18 x 1
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 12

0

29

Snapper 7090356

NUT, 5/8 - 18 Hex Lock
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

30

Snapper 7091541

SCREW, 5/16 - 18 x 3/4" Hex Thread Forming
(Superseded to 703228)

Note: Was 90368

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7090183

WASHER, .656 x 1.31 x .094
(Superseded to 7090183YP)

$4.49

$

In Stock, only 3 left!

0

32

Snapper 7023628

CONTROL CABLE
(Superseded to 7023628YP)

$51.99

$

Usually ships in 2-12 days

0

33

Snapper 7023641

SPACER, .766 x x .25

$

$

Not available

34

Snapper 7090595

SCREW, 5/16 - 18 x 5/8 Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

35

Snapper 7017047

COVER, Belt
(Superseded to 7017047YP)

$54.99

$

Usually ships in 2-12 days

0
