7080499 - Snapper 54" Mower Attachment for MF Series Mower Deck Parts Diagram

54" Mower Attachment for MF Series

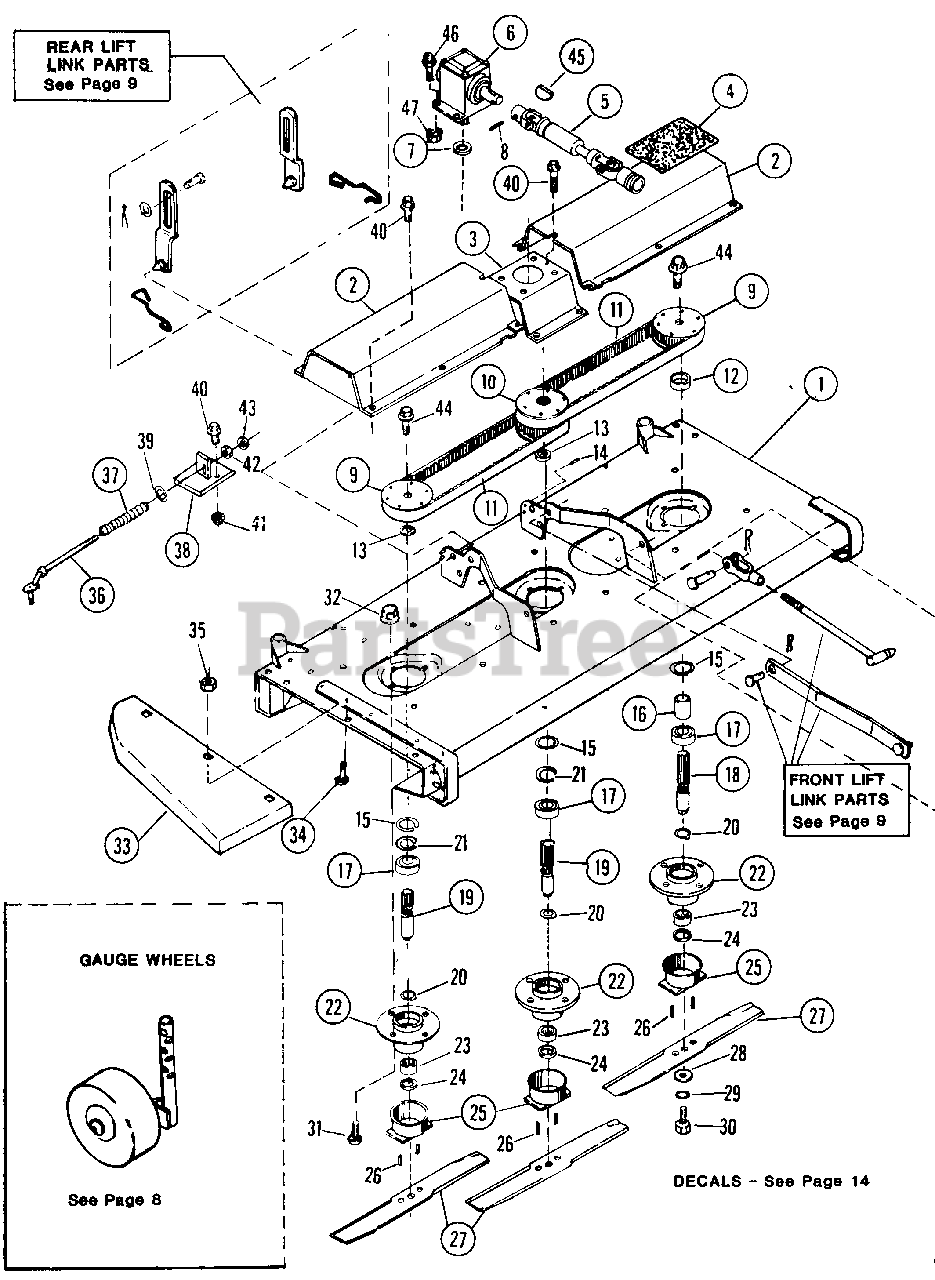

Mower Deck Parts Diagram

  • Title

--

Snapper 7080499

(NLA) MOWER ATTACHMENT ASSY. 54"

$

$

Currently unavailable

1

Snapper 7049868

(NLA) MOWER HOUSING WELDMENT

$

$

Currently unavailable

2

Snapper 7049619

(NLA) COVER, TIMING BELT (RIGHT & LEFT SIDE)

$

$

Currently unavailable

3

Snapper 7049855

(NLA) SUPPORT, GEAR BOX

$

$

Currently unavailable

4

Snapper 7019601

(NLA) TREAD, STEP

$

$

Currently unavailable

5

Snapper 7019882

UNIVERSAL - JOINT ASSEMBLY

$

$

Currently unavailable

6

Snapper 7059036

GEAR-BOX ASSEMBLY

$

$

Currently unavailable

7

Snapper 7029530

SPACER, SPLINED

$

$

Currently unavailable

8

Snapper 7012834

(NLA) PIN, GROOVE 1/4 x 1-3/4

$

$

Currently unavailable

9

Snapper 7059574

PULLEY, TIMING BELT (RIGHT & LEFT SIDE)

$

$

Not available

10

Snapper 7059573

PULLEY, TIMING BELT CENTER

$

$

Not available

11

Snapper 7019578

BELT, DECK BLADE TIMING
(Superseded to 7019578YP)

$80.99

$

In Stock, only 1 left!

0

12

Snapper 7027560

SPACER, LEFT SIDE PULLEY

$

$

Not available

13

Snapper 7027567

SPACER, RIGHT SIDE & CENTER PULLEY

$

$

Not available

14

Snapper 7012801

PIN, HOUSING SPIROL

$

$

Currently unavailable

15

Snapper 7012800

RING, RETAINING

$4.49

$

In Stock, only 3 left!

0

16

Snapper 7027561

SPACER, LEFT SIDE PULLEY (LOWER)

$

$

Not available

17

Snapper 7019572

BEARING, BALL, .98" ID, 2.04" OD, .59" Wide
(Superseded to 7019572YP)

Note: (6205-2RS)

$30.99

$

Usually ships in 2-12 days

0

18

Snapper 7029544

SHAFT, LEFT SIDE SPINDLE (6" LONG)

$

$

Not available

19

Snapper 7029533

SHAFT, CENTER & RIGHT SIDE SPINDLE (4-3/4" LONG)
(Superseded to 7029533YP)

$262.99

$

Usually ships in 2-12 days

0

20

Snapper 7018344

RING, RETAINING

$3.49

$

In Stock, only 1 left!

0

21

Snapper 7012833

RING, RETAINING

$3.99

$

In Stock, only 2 left!

0

22

Snapper 7019586

HOUSING, SPINDLE

$

$

Currently unavailable

23

Snapper 7018410

(NLA) BEARING, NEEDLE

Note: (Was 18343, Torrington #FJR2518, INA #FC65733)

$

$

Not available

24

Snapper 7019643

SEAL, OIL
(Superseded to 7019643YP)

$17.99

$

Usually ships in 2-12 days

0

25

Snapper 7047784

MOUNTING, CUTTING BLADE
(Superseded to 7047784YP)

Note: (Was 47757)

$122.99

$

Usually ships in 2-12 days

0

26

Snapper 7012799

PIN, BLADE MOUNTING (SHEAR)
(Superseded to 7012799YP)

$6.99

$

Usually ships in 2-12 days

0

27

Snapper 7019883

BLADE, MOWER CUTTING, 16.25"

$

$

Currently unavailable

28

Snapper 7018341

WASHER, BLADE TO SPINDLE CONE

$7.99

$

Usually ships in 2-12 days

0

29

Snapper 7090254

WASHER, 1/2 SPLIT LOCK
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7090491

BOLT, 1/2C X 1-1/4 HEX HEAD
(Superseded to 7090491YP)

$4.99

$

Usually ships in 2-12 days

0

31

Snapper 7090664

BOLT, 3/8C x 1-1/8 CARRIAGE

$

$

Not available

32

Snapper 7091619

NUT, 3/8C HEX FLANGE LOCK
(Superseded to 703333)

Note: (Was 90613)

$4.99

$

In Stock, Qty 20+

0

33

Snapper 7039881

CHUTE, MOWER SIDE DISCHARGE
(Superseded to 7039881YP)

$153.99

$

Usually ships in 2-12 days

0

34

Snapper 7091573

BOLT, 1/4C x 3/8 CARRIAGE
(Superseded to 7091573YP)

Note: (Was 90666)

$4.49

$

In Stock, only 1 left!

0

35

Snapper 7091584

NUT, 1/4C HEX FLANGE LOCK
(Superseded to 703233)

Note: (Was 90583)

$4.49

$

In Stock, Qty 5

0

36

Snapper 7049621

ROD, BELT ADJUSTING

$

$

Currently unavailable

37

Snapper 7018345

SPRING, BELT ADJUSTER
(Superseded to 7018345YP)

$5.99

$

Usually ships in 2-12 days

0

38

Snapper 7049628

BRACKET, BELT ADJUSTING

$

$

Currently unavailable

39

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7090595

BOLT, 5/16C x 3/4 HEX FLANGE LOCK
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

41

Snapper 7091601

NUT, 5/16C HEX FLANGE LOCK
(Superseded to 703409)

Note: (Was 90585)

$5.49

$

In Stock, Qty 20+

0

42

Snapper 7091302

NUT, 3/8C HEX
(Superseded to 7091302SM)

Note: (Was 90504)

$4.49

$

Usually ships in 2-12 days

0

43

Snapper 7090665

NUT, 3/8C HALF HEX
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

44

Snapper 7027198

BOLT, 3/8C x 1 HEX FLANGE LOCK
(Superseded to 704038)

Note: (Was 90582)

$5.99

$

In Stock, only 2 left!

0

45

Snapper 7010211

KEY, WOODRUFF
(Superseded to 7010211YP)

Note: (Was 12684)

$3.49

$

In Stock, Qty 17

0

46

Snapper 7091328

BOLT, 3/8-16 x 1-1/4 HEX HEAD
(Superseded to 703871)

Note: (Was 90587)

$4.99

$

Usually ships in 2-12 days

0

47

Snapper 7091619

NUT, 3/8-16 HEX FLANGE LOCK
(Superseded to 703333)

Note: (Was 90613)

$4.99

$

In Stock, Qty 20+

0
