7080199 - Snapper 42" Mower Attachment for MF Series Mower Deck Parts Diagram

42" Mower Attachment for MF Series

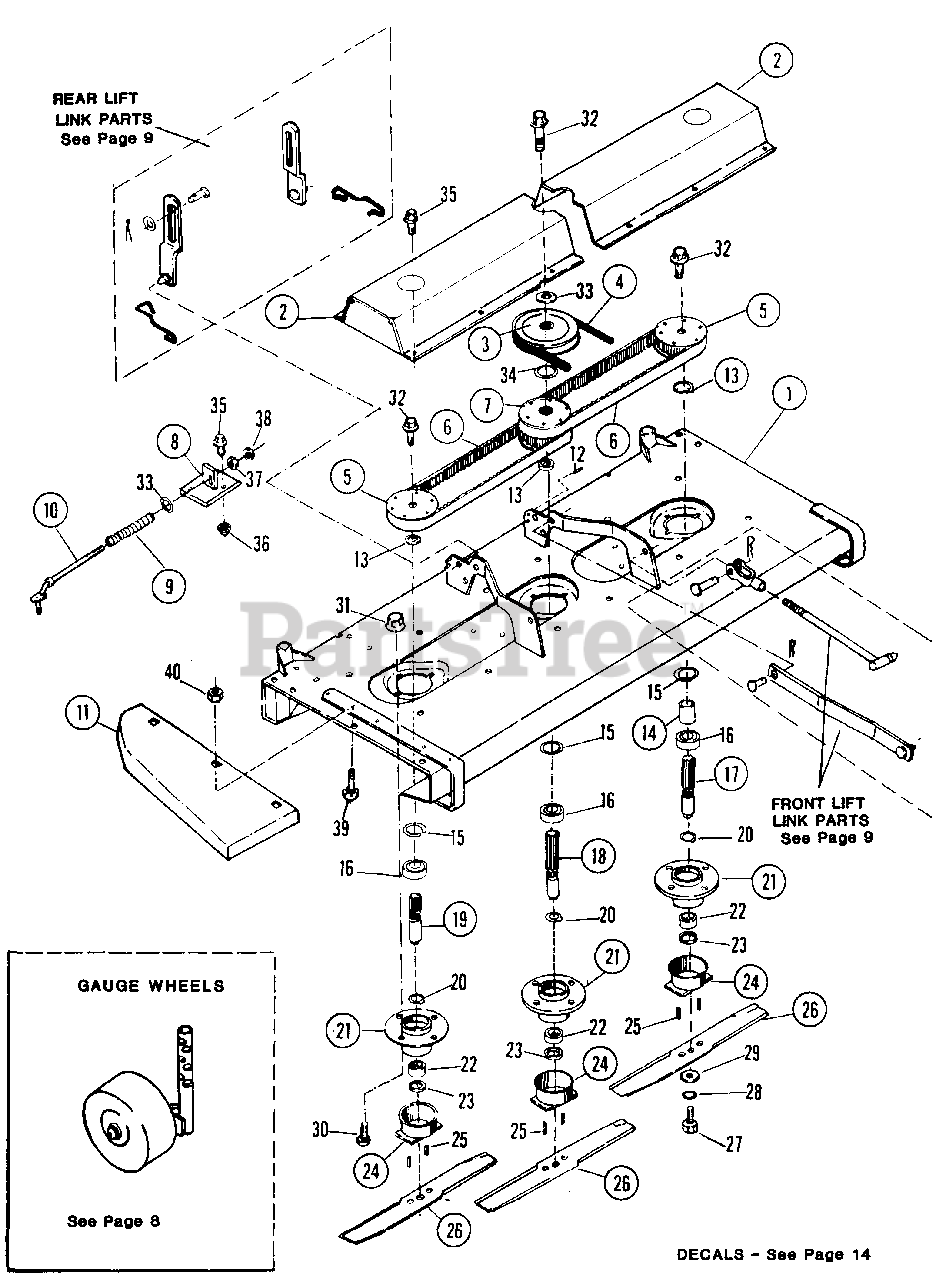

Mower Deck Parts Diagram

  • Title
--

Snapper 7080199

(NLA) MOWER ATTACHMENT ASSY. 42"

$

$

Currently unavailable

1

Snapper 7049895

(NLA) MOWER HOUSING WELDMENT 42"

$

$

Currently unavailable

2

Snapper 7049631

(NLA) COVER, TIMING BELT

$

$

Currently unavailable

3

Snapper 7049652

PULLEY, MOWER DRIVE

$

$

Currently unavailable

4

Snapper 7019581

BELT DRIVE
(Superseded to 7028793YP)

$64.99

$

Usually ships in 2-12 days

0

5

Snapper 7059574

PULLEY, TIMING BELT - RIGHT & LEFT SIDE

$

$

Not available

6

Snapper 7019580

BELT, DECK BLADE TIMING
(Superseded to 7019580YP)

$64.99

$

In Stock, only 1 left!

0

7

Snapper 7059573

PULLEY, CENTER TIMING BELT

$

$

Not available

8

Snapper 7049628

BRACKET, BELT ADJUSTING

$

$

Currently unavailable

9

Snapper 7018345

SPRING, BELT ADJUSTER
(Superseded to 7018345YP)

$5.99

$

Usually ships in 2-12 days

0

10

Snapper 7049621

ROD, BELT ADJUSTING

$

$

Currently unavailable

11

Snapper 7039904

(NLA) CHUTE, MOWER SIDE DISCHARGE

$

$

Currently unavailable

12

Snapper 7012801

PIN, SPIROL

$

$

Currently unavailable

13

Snapper 7027560

SPACER, PULLEY

$

$

Not available

14

Snapper 7027561

SPACER, LEFT SIDE PULLEY

$

$

Not available

15

Snapper 7012800

RING, RETAINING

$4.49

$

In Stock, only 3 left!

0

16

Snapper 7019572

BEARING, BALL, .98" ID, 2.04" OD, .59" Wide
(Superseded to 7019572YP)

Note: (6205-2RS)

$30.99

$

Usually ships in 2-12 days

0

17

Snapper 7029528

SHAFT, LEFT SIDE SPINDLE

$

$

Not available

18

Snapper 7029527

SHAFT, CENTER SPINDLE
(Superseded to 7029527YP)

$66.99

$

Usually ships in 2-12 days

0

19

Snapper 7029526

SHAFT, RIGHT SIDE SPINDLE
(Superseded to 7029526YP)

$82.99

$

Usually ships in 2-12 days

0

20

Snapper 7018344

RING, RETAINING

$3.49

$

In Stock, only 1 left!

0

21

Snapper 7019586

HOUSING, SPINDLE

$

$

Currently unavailable

22

Snapper 7018410

(NLA) BEARING, NEEDLE

Note: (Was 18343, Torrington #FJR2518, INA #FC65733)

$

$

Not available

23

Snapper 7019643

SEAL, OIL
(Superseded to 7019643YP)

$17.99

$

Usually ships in 2-12 days

0

24

Snapper 7047784

MOUNTING, CUTTING BLADE
(Superseded to 7047784YP)

Note: (Was 47757)

$122.99

$

Usually ships in 2-12 days

0

25

Snapper 7012799

PIN, BLADE MOUNTING SHEAR
(Superseded to 7012799YP)

$6.99

$

Usually ships in 2-12 days

0

26

Snapper 7019879

BLADE MOWER CUTTING
(Superseded to 7019879YP)

$23.99

$

Usually ships in 2-12 days

0

27

Snapper 7090491

BOLT, 1/2C x 1-1/4 HEX HEAD
(Superseded to 7090491YP)

$4.99

$

Usually ships in 2-12 days

0

28

Snapper 7090254

WASHER, 1/2 SPLIT LOCK
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

29

Snapper 7018341

WASHER, BLADE TO SPINDLE CONE

$7.99

$

Usually ships in 2-12 days

0

30

Snapper 7090664

BOLT, 3/8C x 1-1/8 CARRIAGE

$

$

Not available

31

Snapper 7091619

NUT, 3/8C HEX FLANGE LOCK
(Superseded to 703333)

Note: (Was 90613)

$4.99

$

In Stock, Qty 20+

0

32

Snapper 7027198

BOLT, 3/8C x 1 HEX FLANGE LOCK
(Superseded to 704038)

Note: (Was 90582)

$5.99

$

In Stock, only 2 left!

0

33

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7032031

SHIM, .030"
(Superseded to 7032031YP)

Note: (AS REQUIRED)

$5.99

$

Usually ships in 2-12 days

0

34

Snapper 7032030

SHIM, .060"
(Superseded to 7032030SM)

Note: (AS REQUIRED)

$4.49

$

In Stock, only 1 left!

0

35

Snapper 7090595

BOLT, 5/16C x 3/4 HEX FLANGE LOCK
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

36

Snapper 7091601

NUT, 5/16C HEX FLANGE LOCK
(Superseded to 703409)

Note: (Was 90585)

$5.49

$

In Stock, Qty 20+

0

37

Snapper 7091302

NUT, 3/8C HEX
(Superseded to 7091302SM)

Note: (Was 90504)

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 7090665

NUT, 3/8C HALF HEX
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

39

Snapper 7091573

BOLT, 1/4C x 3/8 CARRIAGE
(Superseded to 7091573YP)

Note: (Was 90666)

$4.49

$

In Stock, only 1 left!

0

40

Snapper 7091584

NUT, 1/4C HEX FLANGE LOCK
(Superseded to 703233)

Note: (Was 90583)

$4.49

$

In Stock, Qty 5

0
