7073 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) HOUSING AND SHROUD GROUP MODEL: 7073 Parts Diagram

Walk-Behind Mower

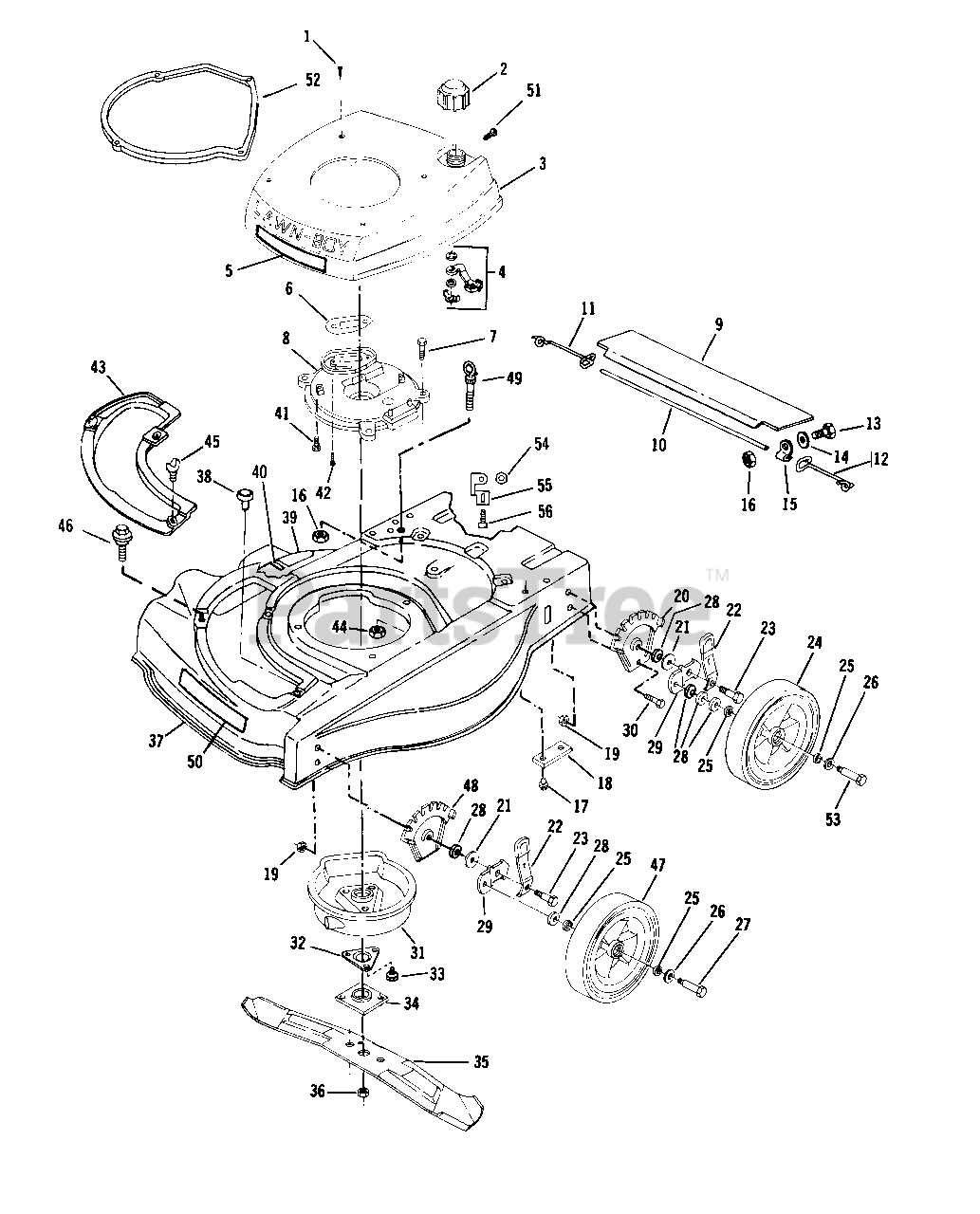

HOUSING AND SHROUD GROUP MODEL: 7073 Parts Diagram

  • Title

1

Lawn-Boy 611381

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 682755

Fuel Cap Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

Lawn-Boy 607213

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 609150

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 11

0

3

Lawn-Boy 683256

Shroud Assembly
(Superseded to 684413)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 683034

Fuel Shut-Off Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 612769

Decal-Special

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 610367

Gasket
(Superseded to 613755)

Note: Important Note: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 611774

Screw-Muffler Plate to Hsg.

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 609989

Plate-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$161.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 611263

Shield-Trailing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 608160

Rod-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 608497

Spring-R.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 608498

Spring-L.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 609891

Screw-Trailing Shield
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 619566

Washer-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

15

Lawn-Boy 608161

Clamp-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 602315

Nut-Trl. Shield and Eyebolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 607188

Screw-Handle Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

18

Lawn-Boy 612337

Plate-Hdl. Brkt. to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 603773

Nut-Hgt. Adjust and Back-up Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 8

0

20

Lawn-Boy 610142

Plate-Height Adjust-Rear

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 608834

Washer-Wheel Mtg. Brkt.

Note: Important Note: Replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 682231

Knob and Spring Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$29.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 610646

Bolt-Wheel Bracket to Knob and Spring Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 682974

Wheel-Rear
(Superseded to 131-4520)

Note: Important Note: Replacement parts may not always be available in matching colors.

$37.99

$

In Stock, only 1 left!

0

25

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 605256

Washer-Wheel Bolt Head

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 603441

Bolt-Shoulder, Wheel-Front

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 603620

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 608833

Bracket-Wheel Height Adjust
(Superseded to 608833-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 610039

Screw-Height Adjust Plate
(Superseded to 323-4)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 682873

Muffler Cover Assembly
(Superseded to 682873-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 609980

Support-Crankshaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 609471

Screw-Crankshaft Support

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

34

Lawn-Boy 677525

Collar and Plate Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 683682

Blade-21"
(Superseded to 612543-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

36

Lawn-Boy 603164

Nut
(Superseded to 121-3611)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 683252

Housing Assembly
(Superseded to 684513)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 9

0

39

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

40

Lawn-Boy 610860

Decal-Discharge Area

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 609994

Screw-Muffler Plate to Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 607601

Screw-Muffler Plate to Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

43

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

Note: Important Note: Replacement parts may not always be available in matching colors.

$36.99

$

In Stock, only 1 left!

0

44

Lawn-Boy 608311

Nut-Muffler Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

45

Lawn-Boy 606733

Wing Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

In Stock, Qty 6

0

46

Lawn-Boy 607809

Screw-Plate and Chute Mounting
(Superseded to 614677)

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 12

0

47

Lawn-Boy 678636

Wheel-Front

Note: Important Note: Replacement parts may not always be available in matching colors.

$28.99

$

In Stock, only 1 left!

0

48

Lawn-Boy 610826

Plate-Height Adjust-Front

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 611243

Eyebolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$20.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 612769

Decal-Headliner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 608997

Screw-Shroud to C.D. Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

52

Lawn-Boy 611379

Spacer-Shroud to Base

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 611267

Bolt-Shoulder, Wheel-Rear
(Superseded to 614139)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 602315

Nut-Baffle Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

55

Lawn-Boy 612495

Bracket-Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 609891

Screw-Baffle Bracket
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 146014

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 146015

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0
