7063375 - Snapper 48" Z-VAC CZT/VZT Twin Grass Catcher Z-Vac CZT/HZT Blower Mount Group Parts Diagram

48" Z-VAC CZT/VZT Twin Grass Catcher

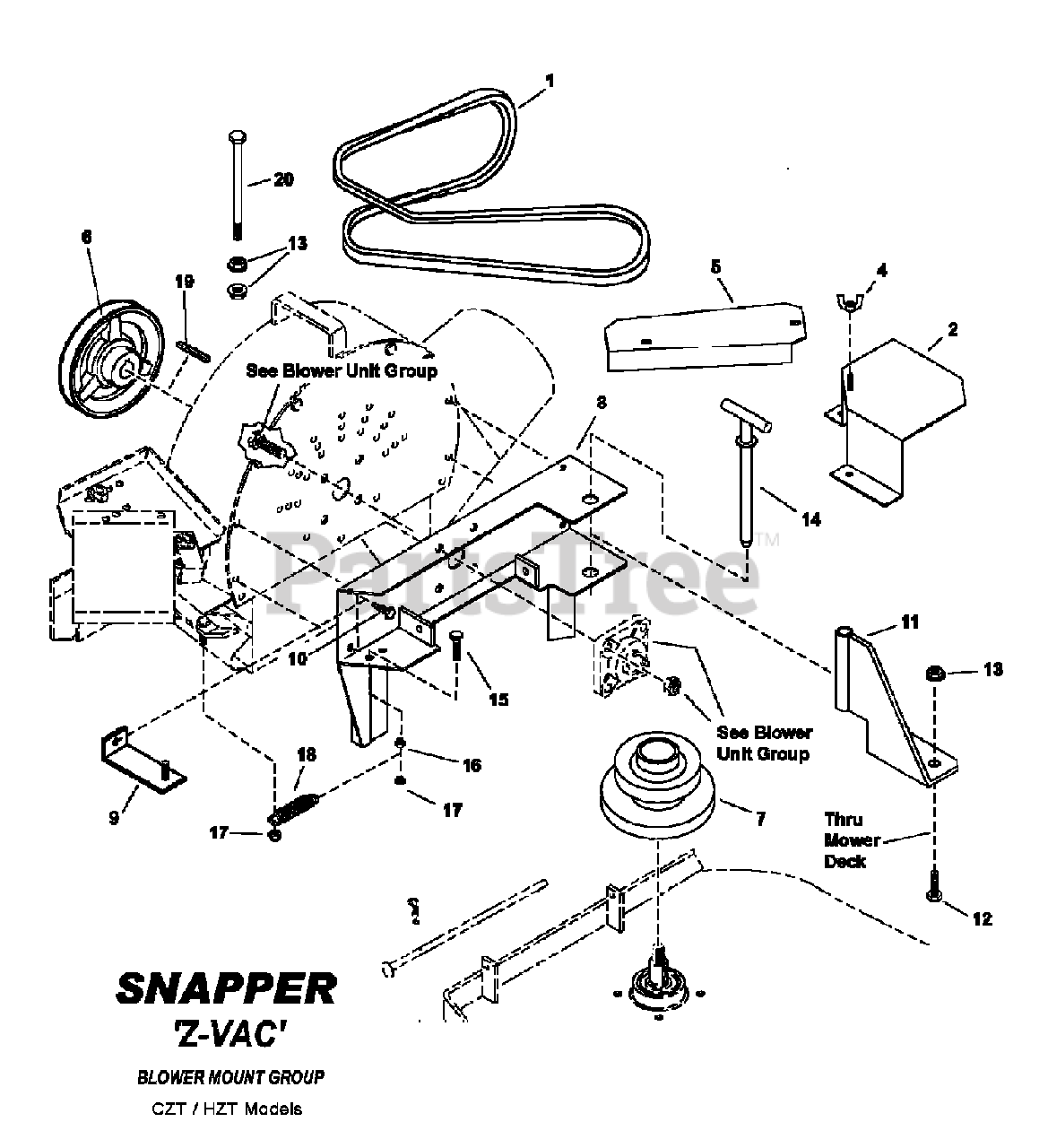

Z-Vac CZT/HZT Blower Mount Group Parts Diagram

  • Title

1

Snapper 3036323

BELT, A Section, 91.125" effective length

$

$

Not available

2

Snapper 3037161

WELDMENT, Belt Cover, Deck

$

$

Not available

4

Snapper 7091537

WING LOCKNUT 5/16-18
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

5

Snapper 3037162

BELT GUARD

$

$

Not available

6

Snapper 3046806

PULLEY, Blower Input
(Superseded to 3046806YP)

$64.99

$

Usually ships in 2-12 days

0

7

Snapper 7078298

PULLEY, Spindle

$

$

Not available

8

Snapper 3027505

WELDMENT, Blower Mount

$

$

Not available

9

Snapper 3027507

WELDMENT, Guard Support Bracket

$35.99

$

Usually ships in 2-12 days

0

10

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 3027508

WELDMENT, Deck Mount Bracket
(Superseded to 3027508YP)

$66.99

$

Usually ships in 2-12 days

0

12

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, GR5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

13

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

14

Snapper 3032118

WELDMENT, T-Handle Pin
(Superseded to 3032118YP)

$49.99

$

Usually ships in 2-12 days

0

15

Snapper 7091527

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

16

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

17

Snapper 7090951

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

18

Snapper 3020807

SPRING, Idler, Fast Vac
(Superseded to 3020807SM)

$18.99

$

Usually ships in 2-12 days

0

19

Snapper 7012315

KEY, 1/4 Square x 1.44
(Superseded to 7012315YP)

$2.99

$

Usually ships in 2-12 days

0

20

Snapper 7091617

SCREW, 3/8-16 x 6" Hex Head Cap, GR5
(Superseded to 7091617YP)

$6.99

$

Usually ships in 2-12 days

0
