7063357 - Snapper NZM Universal Folding Roll Over Protection Kit ACCESSORY, Universal Folding ROP Kit Parts Diagram

NZM Universal Folding Roll Over Protection Kit

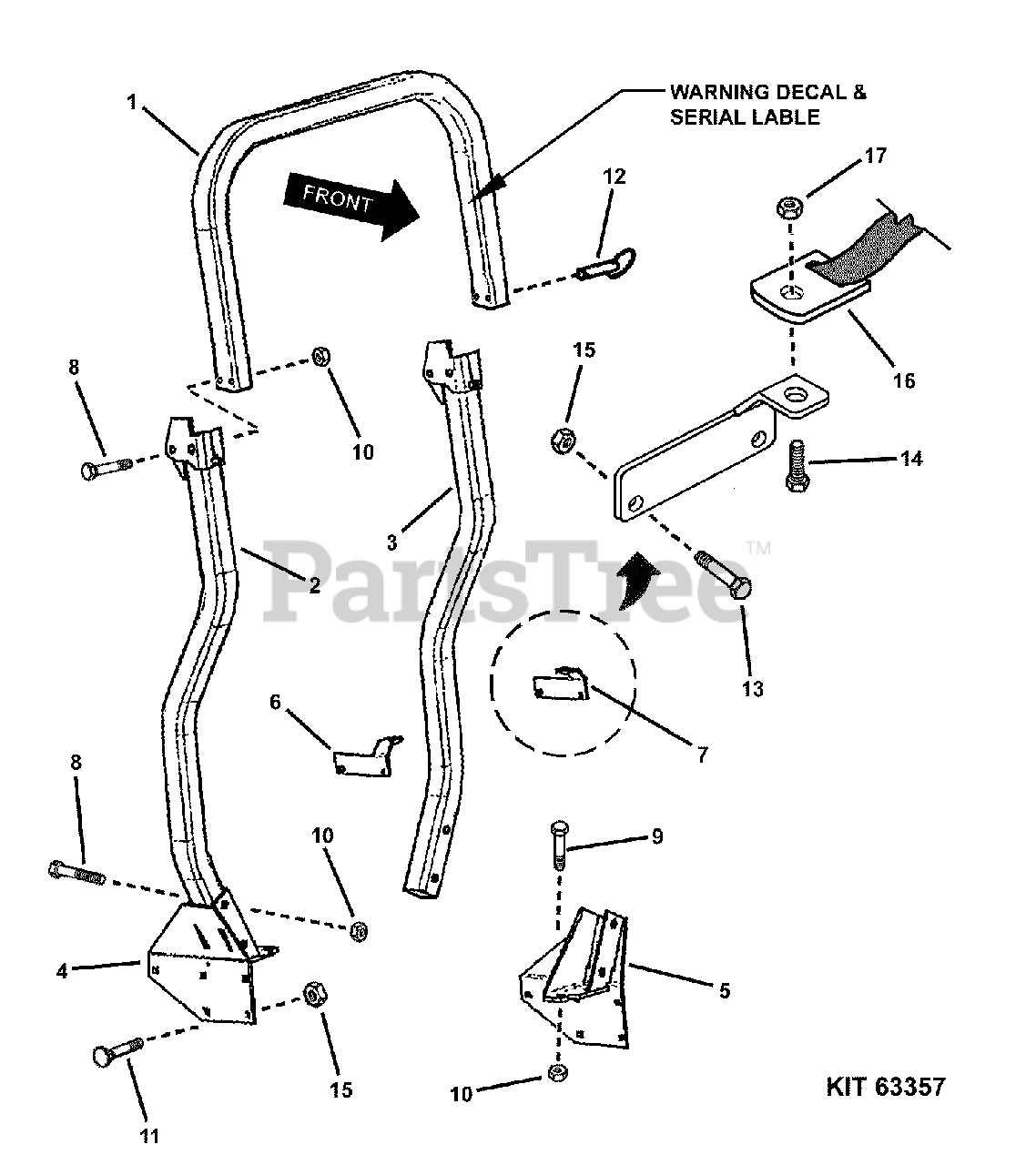

ACCESSORY, Universal Folding ROP Kit Parts Diagram

  • Title
--

Snapper 7063357

KIT, ROP, Universal Folding, NZM
(Superseded to 7063357YP)

Note: part of Snapper Kit #7061839 (* Femco p/n 301093628)

$1025.99

$

Usually ships in 2-12 days

0

1

Snapper 7100091

TOP LOOP
(Superseded to 7100091YP)

Note: * 720938500

$398.99

$

Usually ships in 2-12 days

0

2

Snapper 7100089

RH POST
(Superseded to 7100089YP)

Note: * 720938300

$341.99

$

Usually ships in 2-12 days

0

3

Snapper 7100090

LH POST
(Superseded to 7100090YP)

Note: * 720938400

$341.99

$

Usually ships in 2-12 days

0

4

Snapper 7400080

RH MOUNT (Weldment)
(Superseded to 7400080YP)

Note: * 720938100

$142.99

$

Usually ships in 2-12 days

0

5

Snapper 7400081

LH MOUNT (Weldment)
(Superseded to 7400081YP)

Note: * 720938200

$142.99

$

Usually ships in 2-12 days

0

6

RH SEATBELT MOUNT

Note: * 711771701

$

$

Not available

7

Snapper 7300139

LH SEATBELT MOUNT
(Superseded to 7300139YP)

Note: * 711784301

$27.99

$

Usually ships in 2-12 days

0

8

Snapper 7092193

BOLT, 1/2-13 x 3-1/4" Hex Head, GR 5

Note: ref: Snapper 7090671

$

$

Currently unavailable

9

Snapper 7091884

BOLT, 1/2-13 x 1-1/2" Hex Head, GR 5
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 7090975

NUT, 1/2-13 Hex Center Lock
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

11

Snapper 1931352

BOLT, 3/8-16 x 1-1/2" Square Neck Carriage, GR 5
(Superseded to 1931352SM)

Note: ref: Snapper 7090497

$4.49

$

In Stock, Qty 5

0

12

Snapper 7100095

HINGE PIN, 1/2" x 2.76"
(Superseded to 7100095YP)

$15.99

$

Usually ships in 2-12 days

0

13

Snapper 7091497

BOLT, 3/8-16 x 1-1/2" Hex Head, GR 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

14

Snapper 7090458

BOLT, 7/16-20 x 1" Hex Head, GR 5
(Superseded to 7090458YP)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

16

Snapper 7100227

SEATBELT, Belt Retractor
(Superseded to 7100227YP)

$86.99

$

Usually ships in 2-12 days

0

16

Snapper 7100228

SEATBELT, Buckle w/Cable
(Superseded to 7100228YP)

$42.99

$

Usually ships in 2-12 days

0
